Little Giant 554700 VCMA-20-NPTC 1/30 hp (20 ft shut-off)

LITTLE GIANT
Brand: LITTLE GIANT
SKU: 554700
Availability: In Stock

Ships same day if ordered by 12 pm
$196.89
$196.89
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

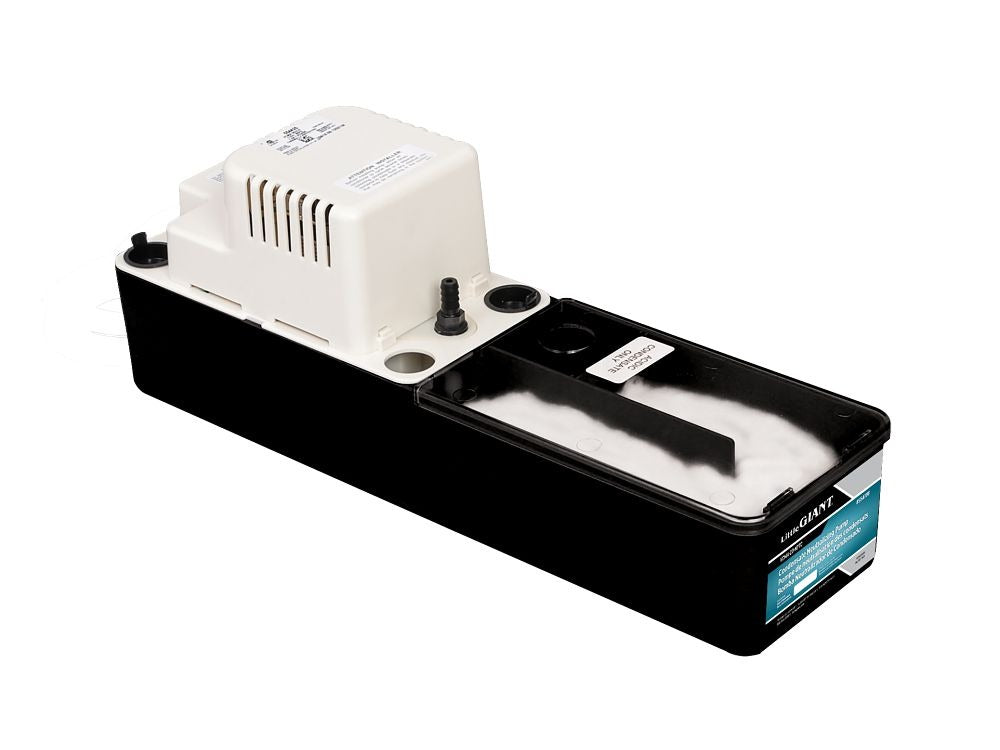

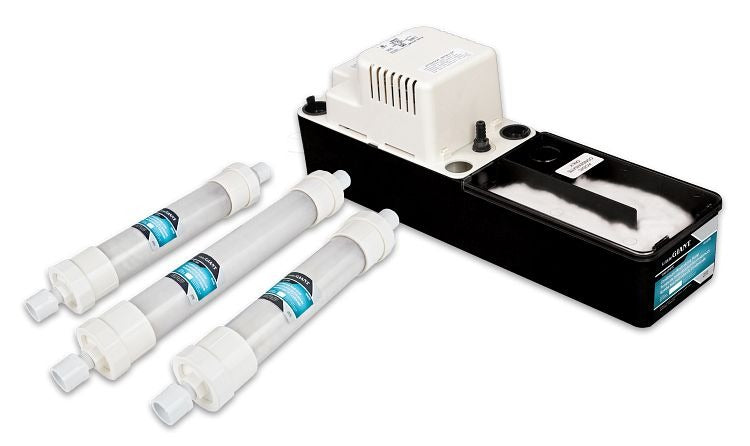

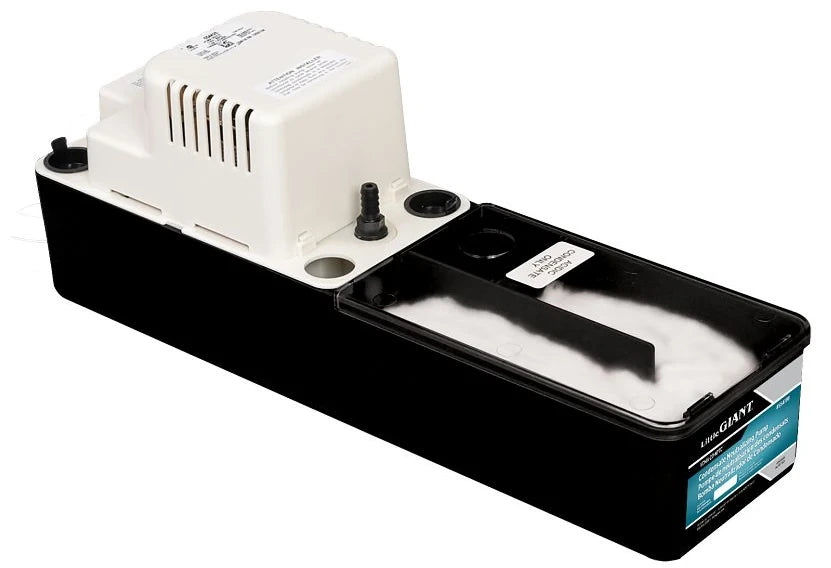

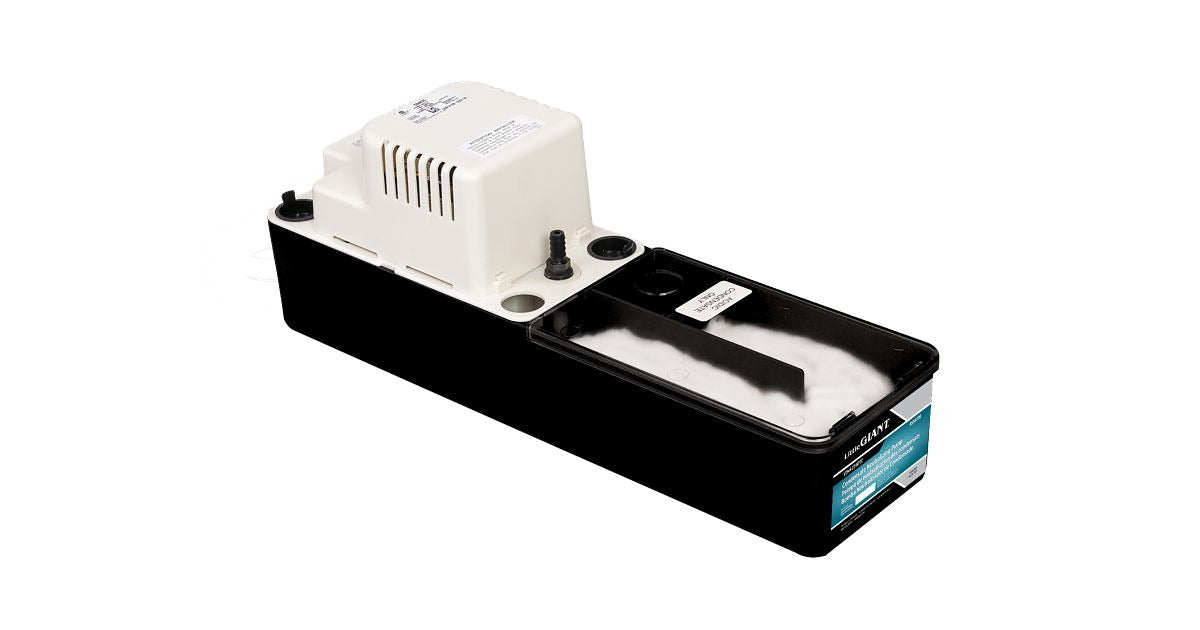

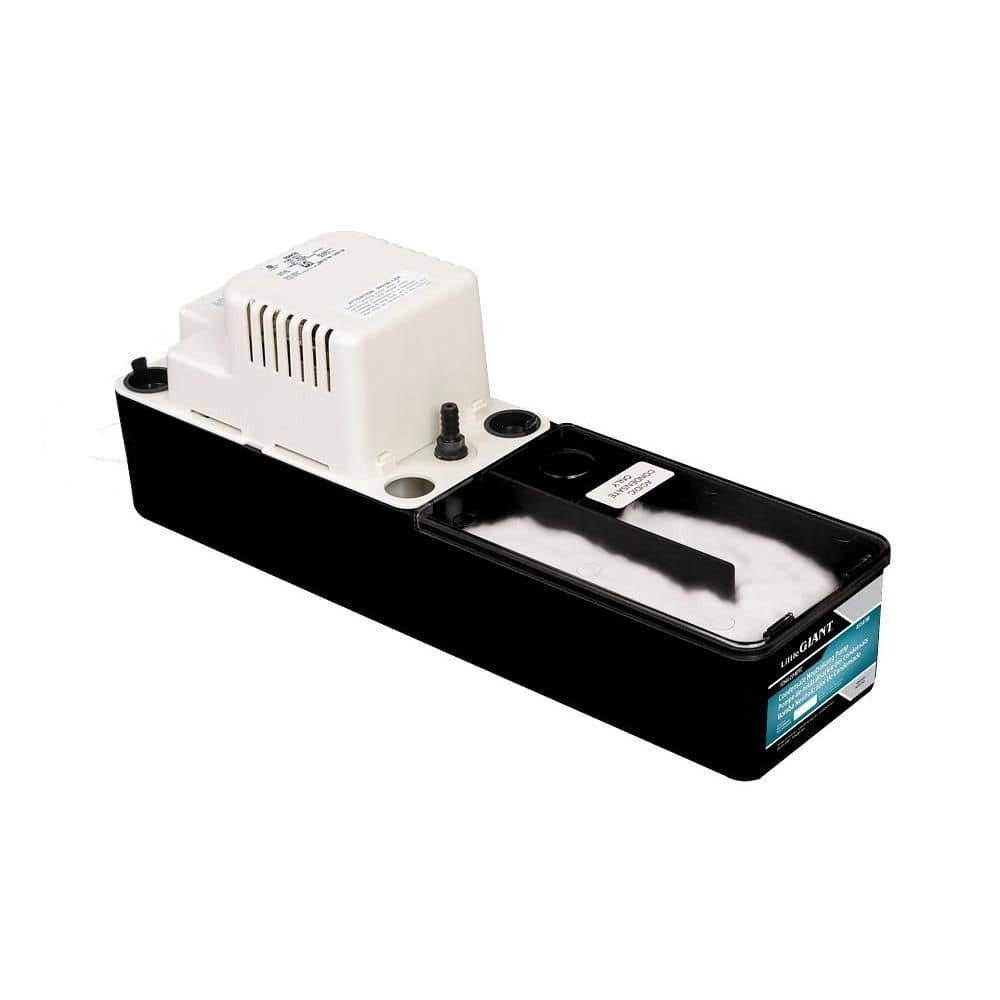

Little Giant model 554700 VCMA-20-NPTC is a neutralizing condensate pump for HVAC applications that collects and treats acidic condensate before it enters plumbing or septic systems. The unit uses a 1/30 HP motor powered by 115 VAC (60 Hz) with a 6 ft power cord, provides up to 1.33 gpm (80 GPH) flow with a 20 ft shut-off, and features an integrated neutralizing chamber sized for appliances up to 500,000 BTU.

  • 1/30 HP motor, 115 VAC, 1.5 A starting, 93 W full load; 6 ft power cord; not rated for continuous duty
  • Maximum flow 1.33 gpm (80 GPH) with 20 ft shut-off; flow: 80 GPH at 1', 70 GPH at 5', 48 GPH at 10'
  • Integrated neutralizing chamber with replaceable media, 3/8 in barbed discharge with built-in check valve, three 1-1/8 in condensate inlets

Product Highlights

Neutralizing condensate pump, 1/30 HP, 80 GPH max, 20 ft shut-off, CSA approved

Product Information

Standard Information

  • Brand: LITTLE GIANT
  • Manufacturer Part Number: 554700
Technical Specifications
Brand
Little Giant
MPN
554700
Model
VCMA-20-NPTC
Series
VCMA-20 NPTC
Pump Type
Vertical centrifugal tank condensate pump with neutralizer
Input Voltage
115 VAC
Frequency
60 Hz
Power
1/30 HP
Starting Current
1.5 A
Full Load Watts
93 W
Cord Length
6 ft
Continuous Duty
No
Maximum Flow Rate
1.33 gpm / 80 GPH
Flow at 1 ft
80 GPH
Flow at 5 ft
70 GPH
Flow at 10 ft
48 GPH
Shut-Off / Maximum Lift
20 ft
Maximum Fluid Temperature
140 F
Discharge Type
Barbed with built-in check valve
Discharge Size
3/8 inch
Condensate Inlets
Three 1-1/8 inch inlets (two with removable caps)
Neutralizer Inlet
1-1/4 inch dedicated inlet
Neutralizer Capacity (Appliance Input)
Up to 500,000 BTU
Neutralizer Media
Replaceable Neutra-Safe media
Dimensions
19 in L x 5 in W x 7 in H
Weight
11.5 lb (12 lb wet)
Construction Material
Durable plastic
Certifications
CSA
Tubing Included
No
Recommended Maintenance
Replace neutralizing media about once a year or when local pH regulations require
