Product Description

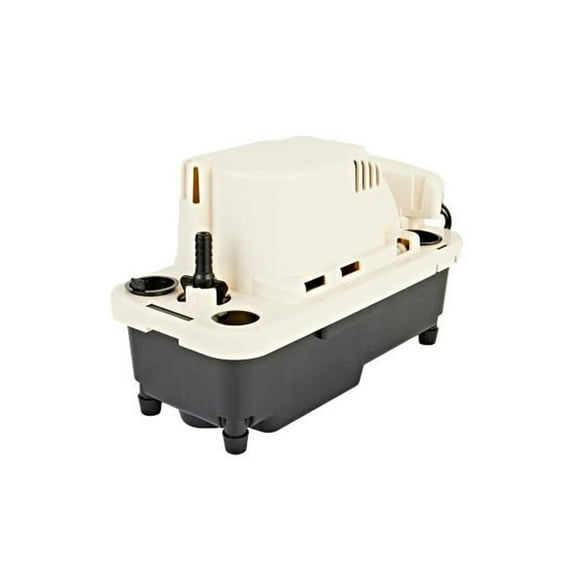

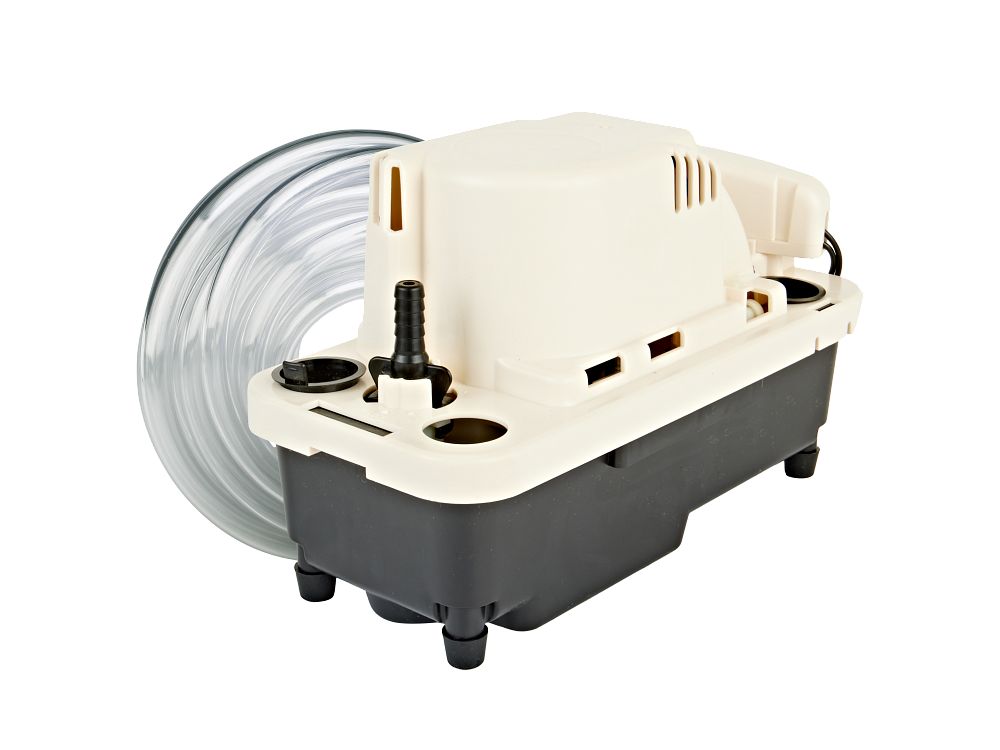

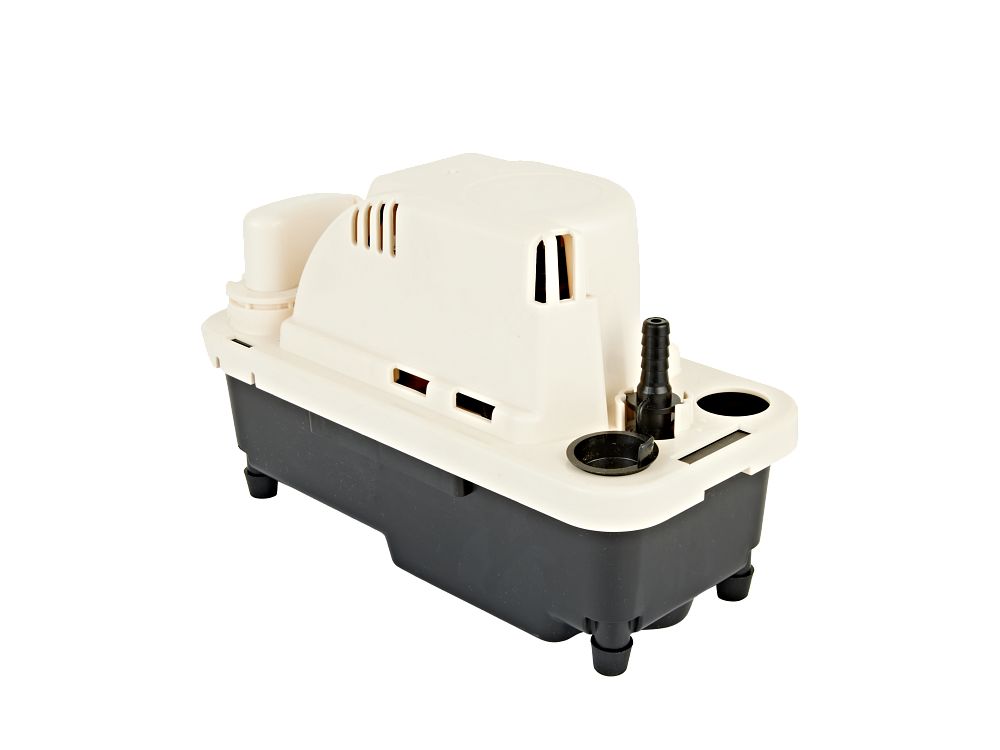

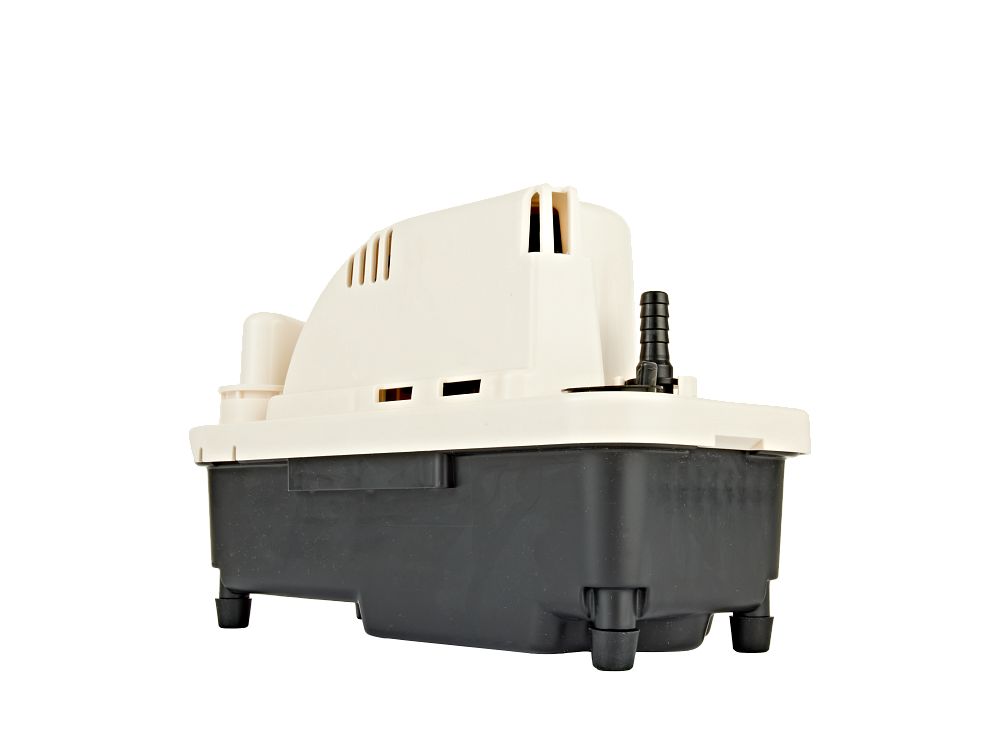

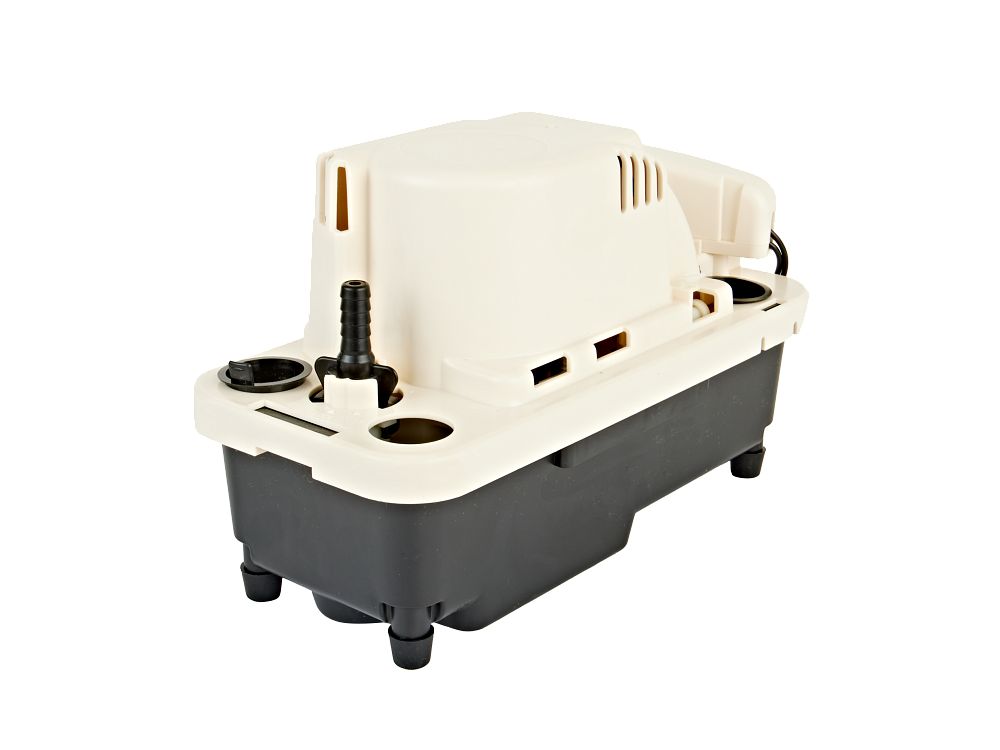

The LITTLE GIANT 554631 VCMA-20ULS-PRO pump efficiently removes condensate from air conditioners, gas furnaces, and condensing boilers. It features a vertical centrifugal pump design with a 1/2 gallon capacity collection tank. The pump includes a 3/8" O.D. barbed discharge adapter with a built-in check valve and a safety switch.
- 1/30 hp high-performance motor
- Fully automatic start/stop and safety switch operations
- Thermally protected fan-cooled motor to prevent overheating
Product Highlights
This condensate pump is designed for automatic collection and removal of condensate in HVAC systems where gravity drainage is not available.
Product Information
Standard Information
-
Brand: LITTLE GIANT
-
Manufacturer Part Number: 554631 VCMA-20ULS-PRO-230V
Technical Specifications
-
HP 60Hz: 1/30 hp
-
Frequency: 50Hz/60Hz
-
Amps - Full Load: 1.5 A
-
Volts: 230 VAC
-
Maximum Flow Rate - 60Hz: 80 gph
-
Max PSIG: 8.6 PSI
-
Max Flow Rate - 50Hz: 80 gph
-
Shut-Off: 20 ft
-
Shut Off Height - 60Hz: 33 ft
-
Safety Switch: Yes
-
Max Fluid Temperature: 140 °F
-
Pump Body Material: Plastic
-
Tubing Included: No
-
Accessories / Repair Kits: Tank 154390
Rubber Feet 925047
Check Valve 3/8"" 154724
Tank Bracket 154483
T-20/25 One carton of 25 pieces of 20' (6.01m) length 3/8"" (9.5 mm) ID VC tubing 599033
T-3/8 100' (640.1 m) of 3/8"" (9.5 mm) ID x1/2"" (12.37 mm) OD clear tubing 599107
CV-X38 3/8"" (9.5 mm) OD rigid plastic or copper tubing 599058
Anti-Sweat Sleeve 10000014026
Check Valve 1/4"" OD 154725
-
Electrical Agency Approvals: CSA
-
Capacity: 84 gph @ 1' / 115 V
78 gph @ 1' / 230 V
-
Discharge: 3/8" barbed (9.5 mm)
-
Impeller: Glass-filled Polypropylene
-
Electrical: 115 V, 60 Hz, 1.5 A
230 V, 50/60 Hz, 0.57/0.6 A
-
Operation: Automatic
-
Plumbing pump type: Condensate Removal Pump
-
Brand: Little Giant
-
Compatible for: VCMA-20ULS-PRO
-
Maximum flow capacity at 1' lift: 78 gallons per hour (GPH)
-
Flow capacity at 5' lift: 67 GPH
-
Flow capacity at 10' lift: 51 GPH
-
Flow capacity at 15' lift: 29 GPH
-
Inlets: Three 1-1/8"
-
Discharge adapter: 3/8" barbed, 1/4" quick-release, locking discharge adapter with built-in check valve
