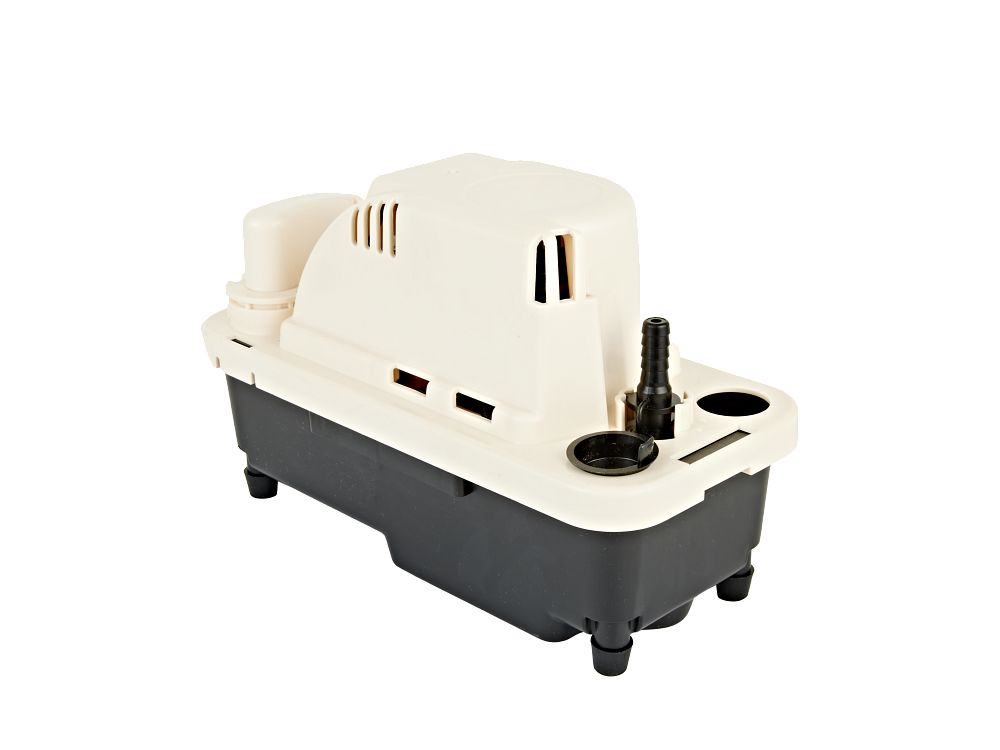

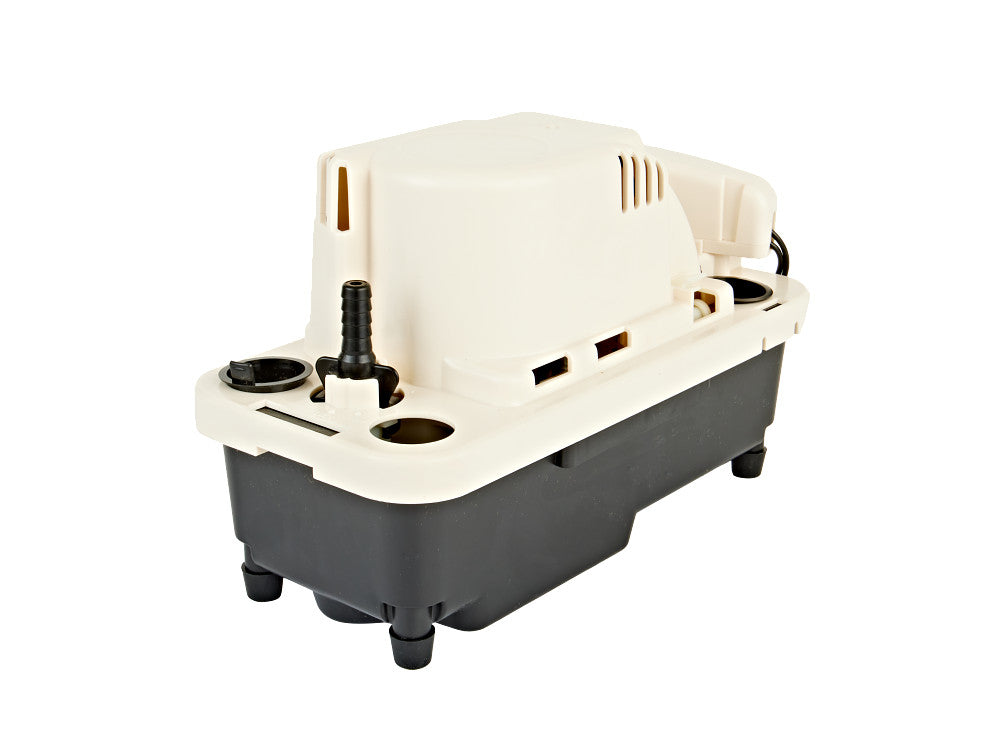

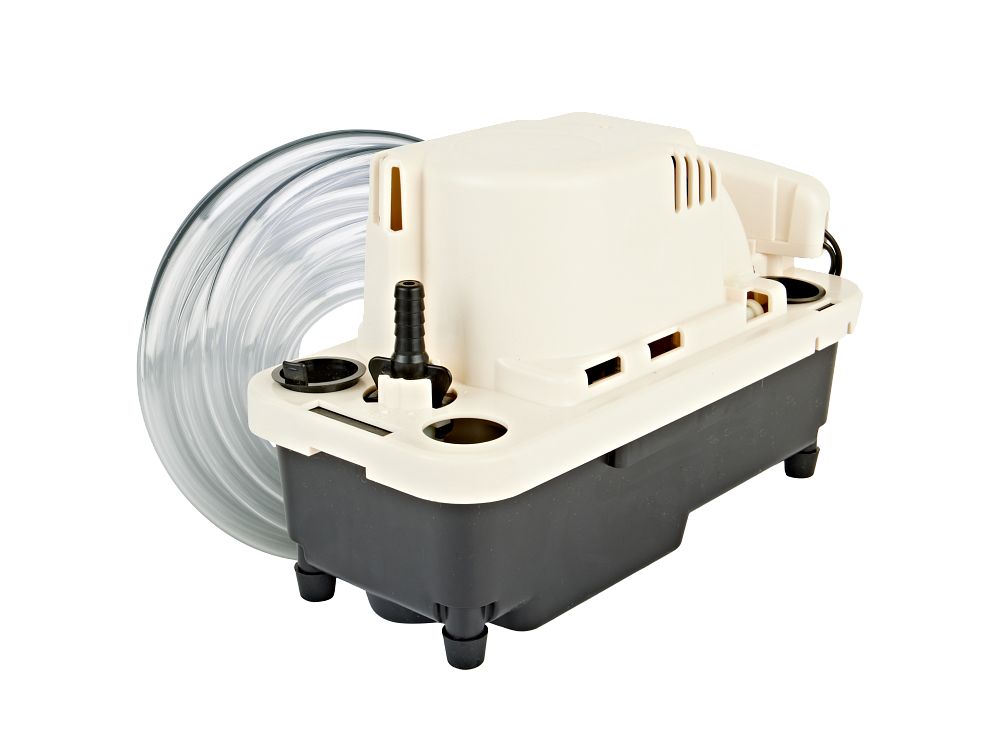

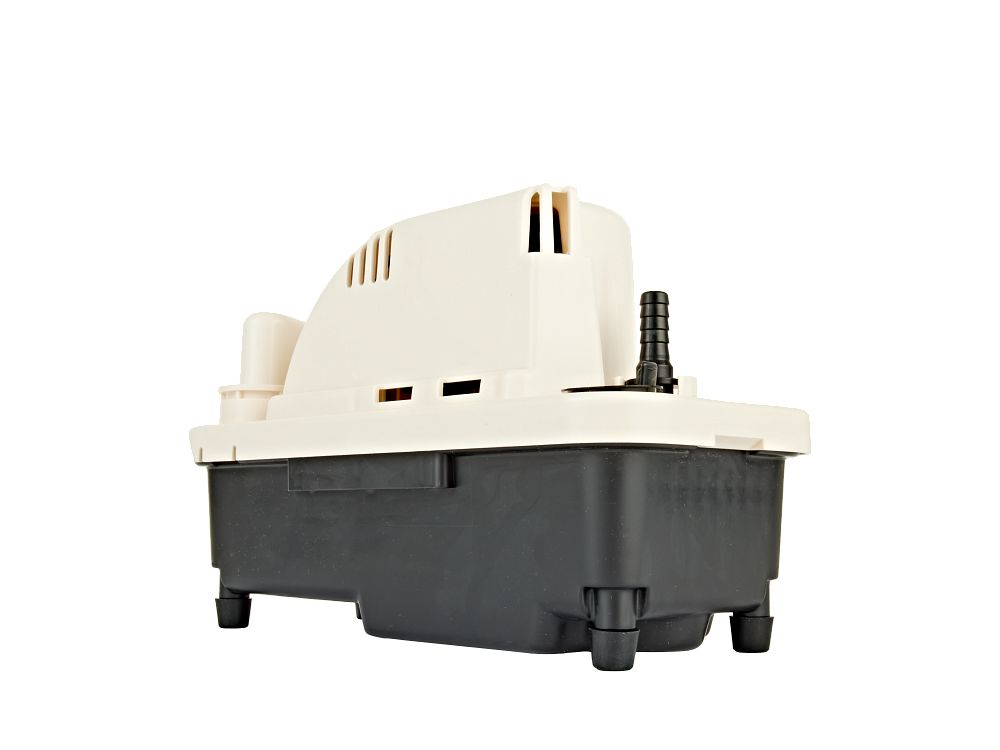

Little Giant 554630 VCMA-20ULS-PRO Condensate Pump 115V

Product Description

The LITTLE GIANT 554630 VCMA-20ULS-PRO condensate pump provides high-efficiency condensate removal from air conditioning, refrigeration, and dehumidification equipment when gravity drainage is not possible. Its slim footprint makes it suitable for tight spaces. It operates at 115V and features a built-in overflow switch for added safety, ideal for HVAC systems.

• Features a 1/30 hp high-performance motor.
• Equipped with fully automatic start/stop and safety switch operations.
• CSA certified to US and Canada standards.

Product Highlights

This condensate pump automatically collects and removes condensate from HVAC systems, preventing potential water damage.

Product Information

Standard Information

• Brand: LITTLE GIANT
• Manufacturer Part Number: 554630 VCMA-20ULS-PRO-115V

Technical Specifications

• HP 60Hz: 1/30 hp
• Frequency: 60 Hz
• Amps - Full Load: 1.5 A
• Full Load Watts: 93 W
• Volts: 115 VAC
• Cord Length: 6 ft
• Continuous Duty: No
• Maximum Flow Rate - 60Hz: 84 gph
• Max PSIG: 9.1 PSI
• Max Flow Rate - 50Hz: 84 gph
• Shut-Off: 21 ft
• Safety Switch: Yes
• Max Fluid Temperature: 140 °F
• Discharge: 3/8" barbed (9.5 mm)
• Product Length: 10.23 "
• Product Width: 4.75 "
• Product Height: 6.46 "
• Tubing Included: No
• Electrical Agency Approvals: CSA
• Capacity: 84 gph @ 1' / 115 V 78 gph @ 1' / 230 V
• Max. Liquid Temp.: 140 °F (60 °C)
• Impeller: Glass-filled Polypropylene
• Electrical: 115 V, 60 Hz, 1.5 A 230 V, 50/60 Hz, 0.57/0.6 A
• Operation: Automatic
• UPC: 010121014428
• Amperage: 1.5 Amps
• Voltage: 115V
• Type: Condensate Pump
• Model: 554630
• Plumbing pump type: Condensate Pump
• Brand: Little Giant
• Features: Automatic
