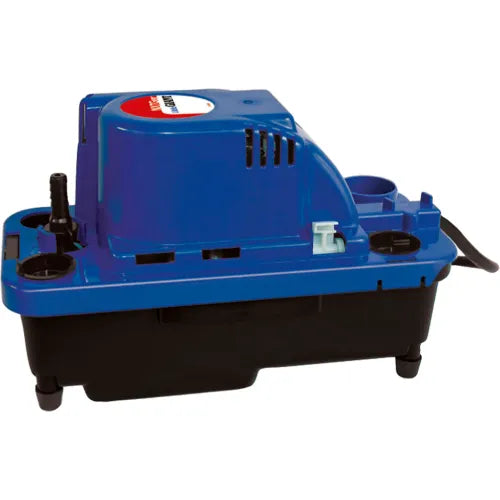

Little Giant 554621 VCMX-20UL Condensate Removal Pump 230V

Product Description

The Little Giant 554621 VCMX-20UL is a condensate removal pump designed for air conditioning and gas furnace systems where gravity drainage is not feasible. It comes with an oil-resistant tank and a stainless steel motor shaft, ensuring durability and reliability in operation. The pump allows for flexible installation options and includes a built-in check valve for added efficiency.

• Designed for condensate removal
• Oil-resistant tank for durability
• Stainless steel motor shaft for reliability

Product Highlights

This condensate pump is ideal for air conditioners, gas furnaces, and condensing boilers.

Product Information

Standard Information

• Brand: Little Giant
• MPN: 554621

Technical Specifications

• Hertz: 50/60 Hz
• Phase: 1
• Voltage: 230 V
• Wattage: 75 W
• Amperage: 0.6 / 0.5 A
• Material: ABS Plastic
• Operation: Fully Automatic: Start, Stop, Safety Switch
• Horsepower: 1/30 HP
• Width: 4-13/16 inches
• Height: 6-1/2 inches
• Length: 10-3/16 inches
• For Use With: Air Conditioner, Gas Furnace, Condensing Boilers
• Shut Off: 20 ft
• Max Temperature: 120 °F
• Gallons per Hour: 69 @ 5'H gal/hr
• Cord Length: 6 ft
• Gallons per Minute: 1.1 gal/min
• Discharge Head: 3/8 Barb
• Max Liquid Temperature: 140 °F
• Certifications: cCSAus
