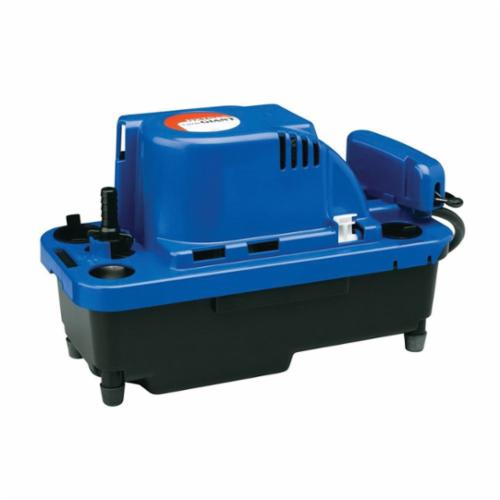

Little Giant 554550 VCMX-20 Automatic Condensate Removal Pump 84 gph 1-1/8 in Inlet x 3/8 in OD Barbed Outlet

Product Description

The Little Giant 554550 is a VCMX-20 Automatic Condensate Removal Pump designed to efficiently remove condensate from air conditioning systems. This pump has a flow rate of eighty-four gallons per hour, making it suitable for high-efficiency gas furnace condensation and condensing boilers.

• External test/run lever
• Slim footprint
• Vertical centrifugal pump design

Product Highlights

This pump includes a dual function safety overflow switch offering both normally open and normally closed operation. It is designed to connect to equipment shut down systems if required, enhancing overall safety in operations.

Product Information

Standard Information

• Brand: Little Giant Manufacturing
• Part Number: L0945

Technical Specifications

• Application: For removal of condensate from air conditioners, suitable for high efficiency, gas furnace condensation, and condensing boilers
• Dimensions: 10.2 inches L x 4.8 inches W x 6.5 inches H
• Electrical Rating: 1.5 A, 115 VAC, 60 Hz, 1/30 hp
• Flow Rate: 84 gph
• Inlet Size: 1-1/8 inches
• Material: ABS
• Maximum Pressure: 9.1 psi
• Standards/Approvals: cCSAus Certified
• Mounting Type: Wall
• Outlet Size: 3/8 inches OD Barbed
• Package Weight: 5.5 lb
• Power Rating: 93 W
• Series: VCMX-20
• Shutoff Head: 21 ft
• Temperature Rating: 140 degrees F
• Type: Automatic
