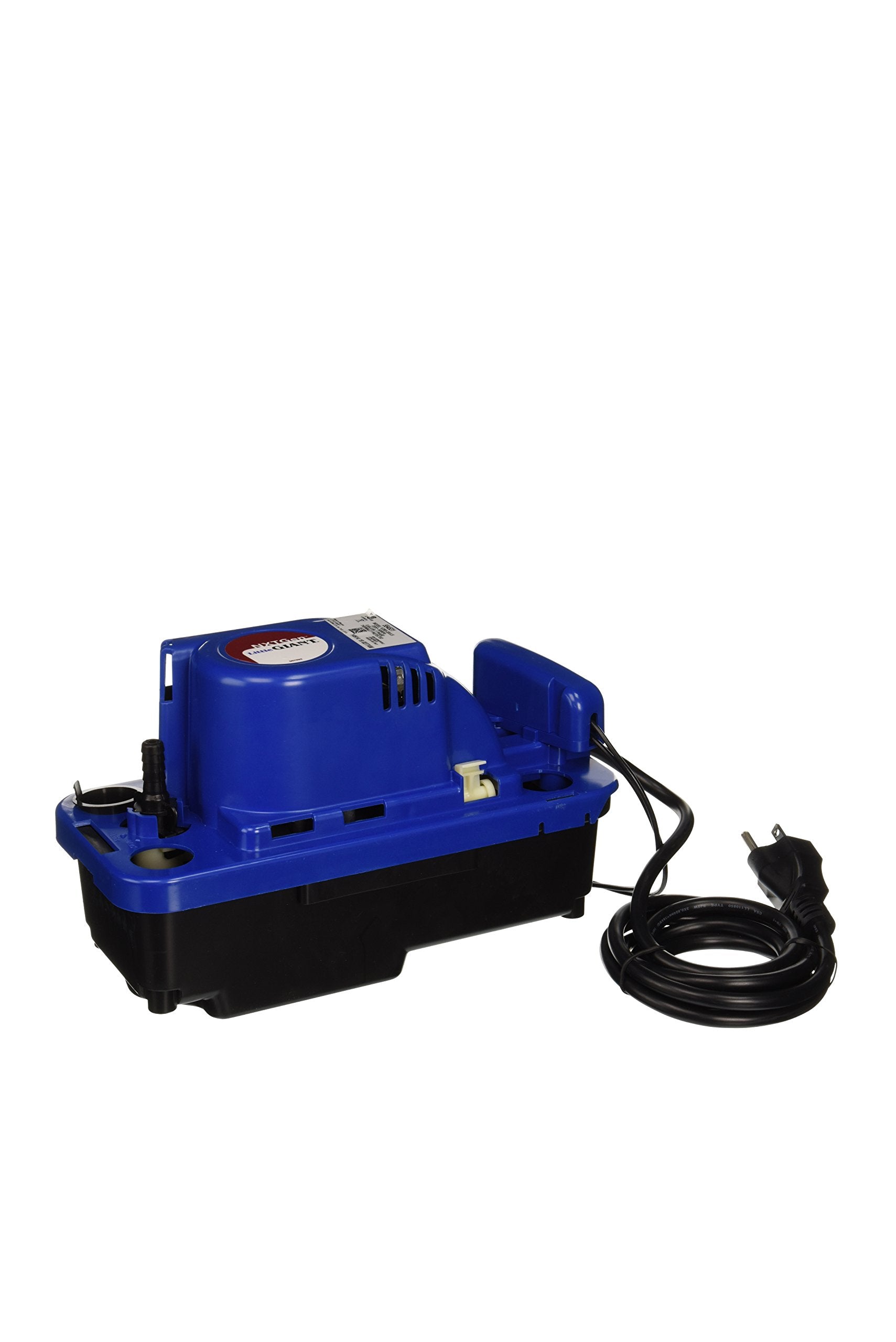

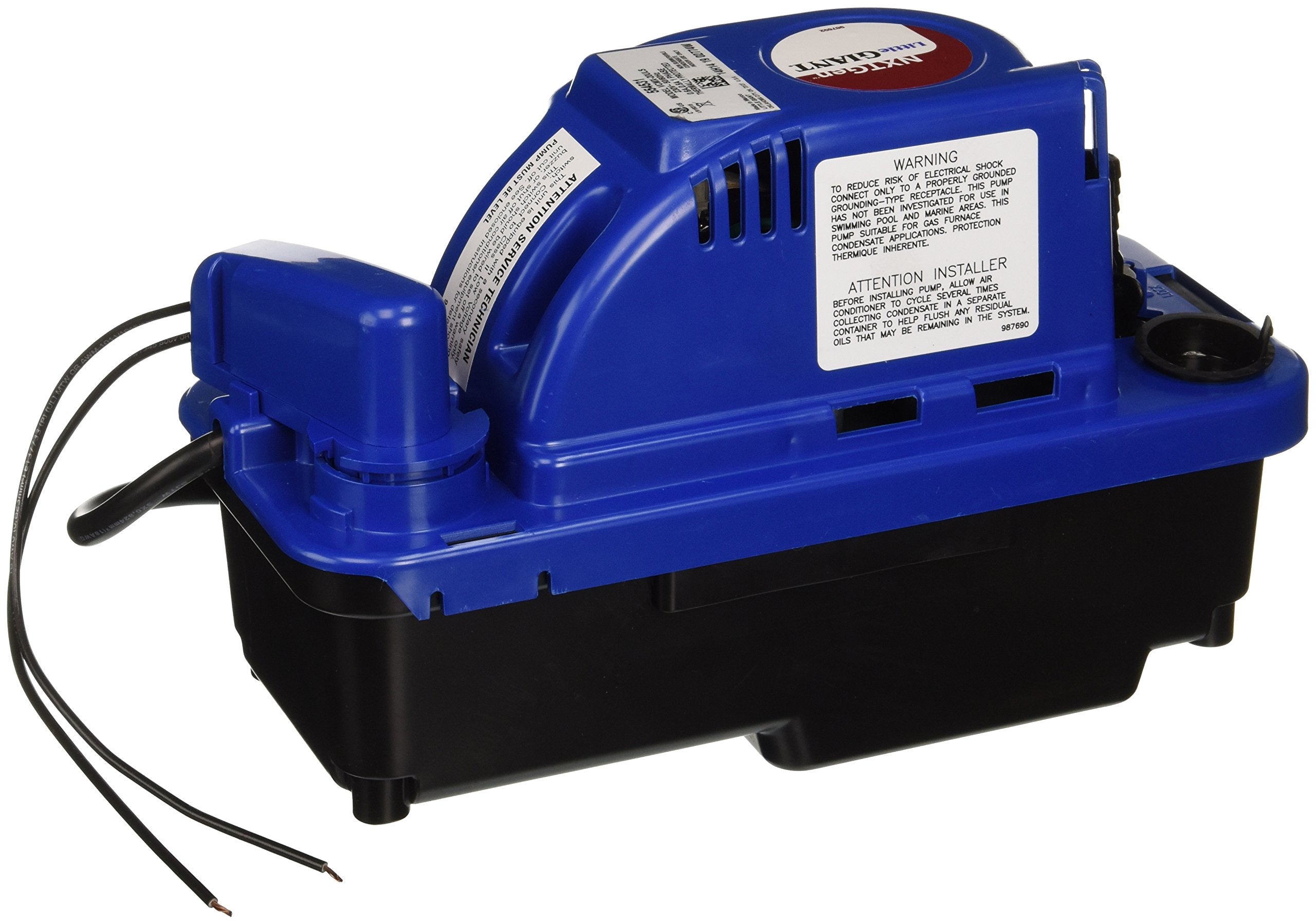

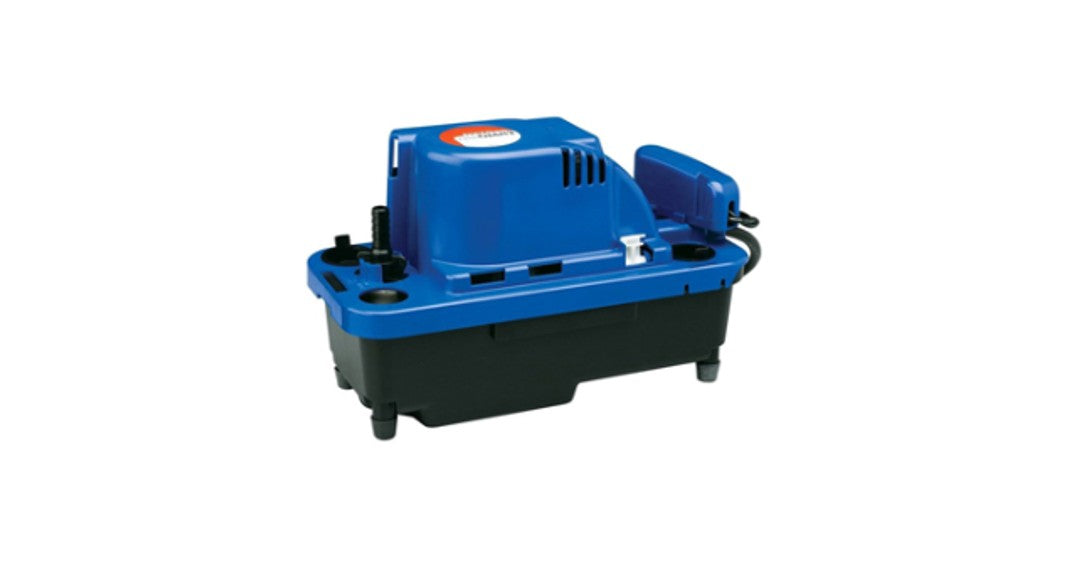

Little Giant 554531 VCMX 84 GPH Condensate Removal Pump

Product Description

The Little Giant 554531 VCMX Series condensate pump is designed for automatic condensate removal from air conditioning equipment, dehumidifiers, high-efficiency furnaces, and condensing boilers. It features automatic start and stop operation and a vertical centrifugal pump design. The pump is thermally protected with a fan-cooled motor and includes rubber feet for vibration and noise dampening.

• Equipped with a 3/8" O.D. barbed 1/4-turn quick-release, locking discharge adapter with a built-in check valve.
• Features oil-resistant tank and check valve.
• Includes a galvanized steel "quick install" wall mount bracket.

Product Highlights

This condensate pump is ideal for automatic removal of condensate in various HVAC and climate control applications.

Product Information

Standard Information

• Brand: LITTLE GIANT
• Manufacturer Part Number: 554531
• Country of Origin: Mexico

Technical Specifications

• UPC: 010121120716
• Max Head: 19 Feet
• Phase: Single
• Type: Condensate Pump
• Frequency: 60 Hz
• Product Category: Mini Split Accessories
• Power Cord Length: 6 Feet
• Maximum Shut Off: 19 feet
• Power Consumption: 75 Watts
• Model Number: VCMX-20ULS
• Flow: 78 GPH at 1'
• Voltage: 230V AC
• Hertz: 50/60
• Amps: 0.6 A
• Horse Power: 1/30
• Discharge Diameter: 3/8"
• Flow Rates at 1 feet of head (GPH): 84
• Flow Rates at 5 feet of head (GPH): 75
• Flow Rates at 10 feet of head (GPH): 60
• Flow Rates at 15 feet of head (GPH): 42
• Flow Rates at 20 feet of head (GPH): 10
• Shut Off (maximum head height): 21'
• Brand: LITTLE GIANT
• Country of Origin: Mexico
• MPN: 554531
• Model: VCMX-20ULS
• Electrical Ratings: 0.6 A 230 V AC 50/60 Hz
• Impeller Type: Polypropylene
• Maximum Pressure: 9.1 psi
• Outlet Size: 3/8 in Barb
• Power Rating: 75 W
• Reservoir Capacity: 1/3 gal.
• Shutoff Head: 21 ft
• Temperature Rating: 140 deg F
• Discharge Size - Pumps: 3/8 in Barb
• Compatible Intake Pipe Size: 1 1/8 in
• Compatible Discharge Pipe Size: 3/8 in
• Condensate Pumps - Type: Condensate
• Item: Condensate Removal Pump
• HP - Pumps: 1/30 hp
• Voltage - Pumps: 230V AC
• Max. Temp - Pumps: 140 Degrees F
• Max. Head - Pumps: 19 ft
• Shut-Off: 19 ft.
• Standards: cCSAus
• GPH of Water @ 12 Ft. of Head: 47
• Pump Type: Standard
• Discharge: 3/8" Barb
• GPH of Water @ 5 Ft. of Head: 67
• Watts: 75 W
• GPH of Water @ 1 Ft. of Head: 78
• Includes: Models Equipped With Overflow Detection Switch
• Max. Temp.: 140 Degrees F
• Shaft Material: Stainless Steel
• Float Material: Polypropylene
• GPH of Water @ 15 Ft. of Head: 29
• GPH of Water @ 9 Ft. of Head: 33
• Max. Head Range: 10 ft to 19 ft
• Compatible Media Type: Water
• Body Gasket Material: Stainless Steel
• Tank Capacity: 1/2 gal
• Shut Off Level: 1.2 in
• Electrical Connection Type: Cord with Plug
• For Use With Potable Systems: No
• Intake Connection: 1 1/8 in Open
• Maximum Ambient Temperature: 140 Degrees F
• Intake Connection Style: Open
• Maximum Media Temperature: 140 Degrees F
• Maximum Feet of Head: 19 ft
• Maximum Flow Rate @ 15 Feet of Head: 0.5 gpm
• Nameplate Voltage: 230V AC
• Discharge Connection Style: Barbed
• Series Family: VCMX
• Maximum Flow Rate @ 10 Feet of Head: 0.9 gpm
• Discharge Connection: 3/8 in Barbed
• Maximum Operating Pressure: 9.1 psi
• Series: VCMX-20
• Number of Intakes: 3
• Maximum Flow Rate @ 1 Feet of Head: 1.3 gpm
• Pump Activation Type: Float Switch
• Horsepower: 1/30 hp
• Plenum Rated: No
• Maximum Flow Rate @ 5 Feet of Head: 1.1 gpm
