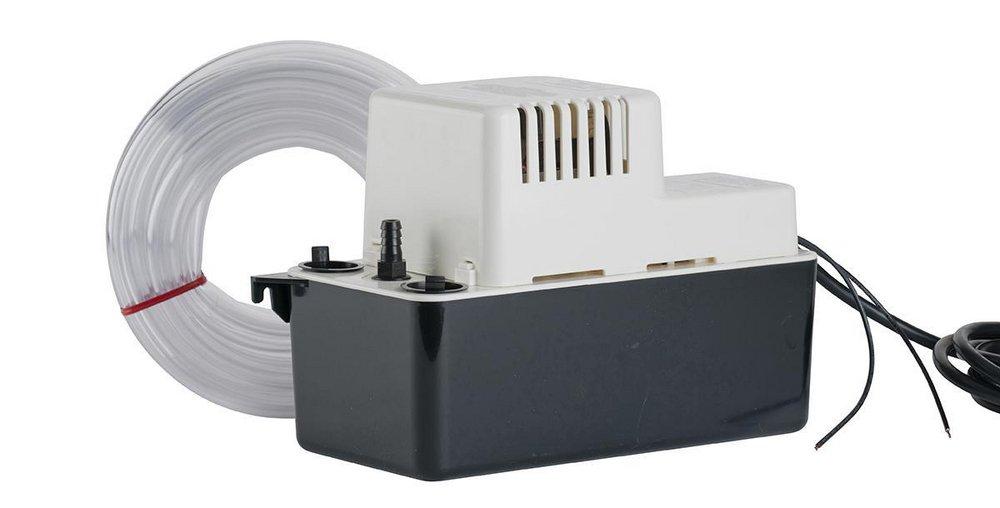

Little Giant 554461 VCMA-20 Series 75W 230V 0.5A 1/30 hp 80 gph ABS Condensate Pump

Product Description

The Little Giant Condensate Pump, MPN 554461, is designed to effectively remove condensate and wastewater from low areas where gravity drainage is not feasible. This model features a thermally protected, fan-cooled motor that ensures durability and safety during operation. Its compact design makes installation easier in various settings, especially in high-efficiency furnace applications.

• Includes a built-in check valve and multiple inlet drain options.
• Automatic operation via a float switch.
• Capable of handling temperatures up to 140 degrees Fahrenheit.

Product Highlights

This condensate pump is suitable for use with air conditioning systems, gas furnaces, and condensing boilers. The device serves to prevent overflow by shutting off via a safety switch when necessary.

Product Information

Standard Information

• Brand: Little Giant
• MPN: 554461

Technical Specifications

• Power Rating: 75 W
• Voltage: 230 V
• Flow Rate: 80 gph
• Shutoff Head: 20 ft
• Motor: 1/30 hp
• Dimensions: 10.3 in L x 5 in W x 7 in H
• Reservoir Capacity: 1/2 gal
• Weight: 6.25 lbs
