Product Description

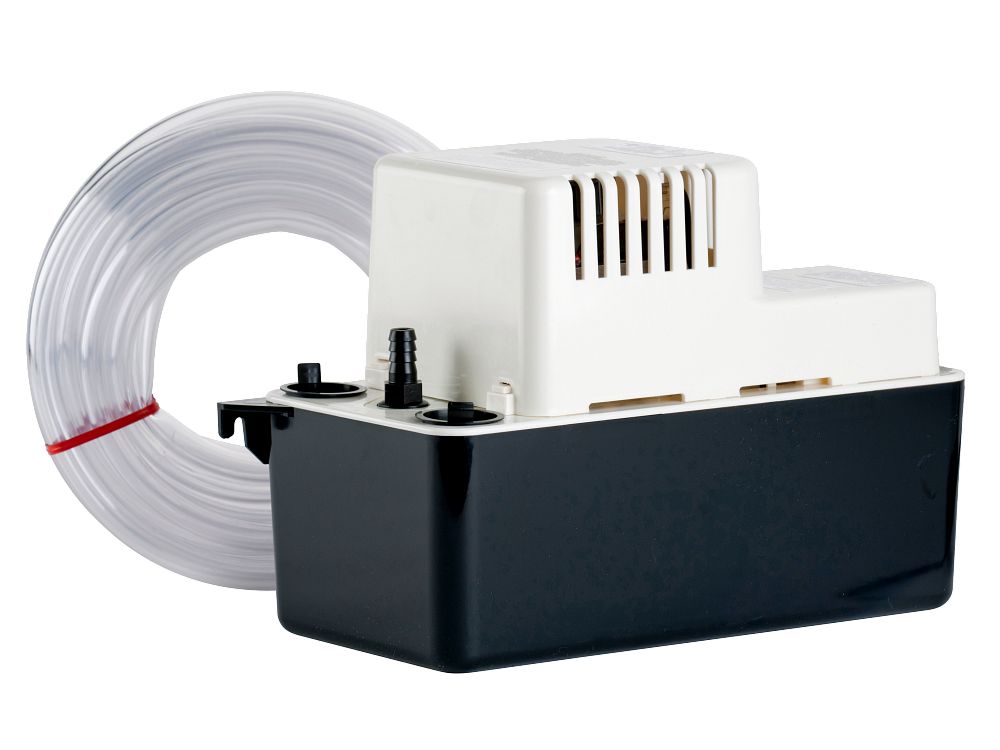

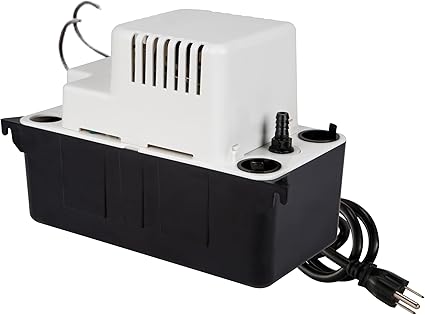

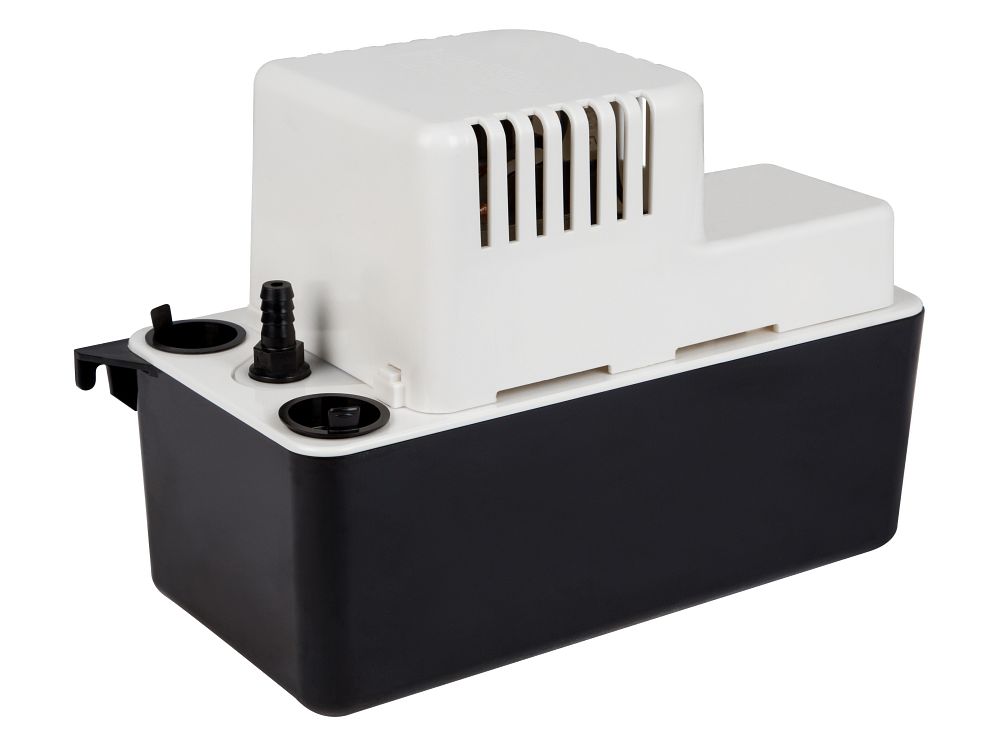

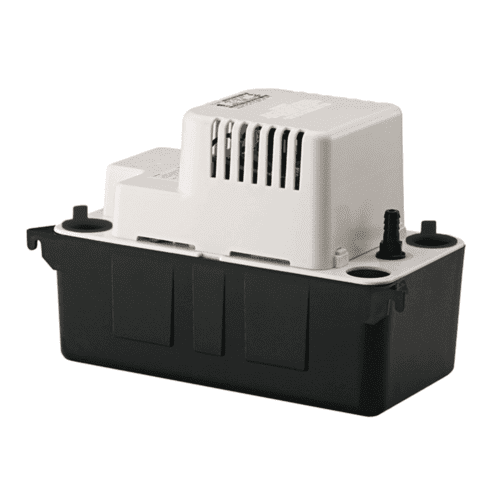

The LITTLE GIANT 554405 VCMA-15ULS-115V condensate pump is a 1/50 hp pump designed for collecting and removing condensation from air conditioners. It is also suitable for high-efficiency gas furnace condensation and condensing boilers. It features a 6 ft power cord and a 3/8" O.D. barbed discharge adapter with built-in check valve and a 1/2-gallon tank capacity.
- Pumps 65 gallons of water per hour with its 1/50 hp high-performance motor.
- Features ABS tank, motor cover, and volute, along with a stainless steel motor shaft.
- Includes an overflow detection switch that can shut down equipment or activate an alarm.
Product Highlights
Automatic condensate pump with vertical-type switch, ABS tank, and thermal overload protection. Ideal for boilers, furnaces, air conditioners, and dehumidifiers.
Product Information
Standard Information
-
Brand: LITTLE GIANT
-
Manufacturer Part Number: 554405 VCMA-15ULS-115V
-
Country of Origin: Import
Technical Specifications
-
Capacity: 65 gph @ 1'
-
Shut Off: 15' (4.6 m)
-
Max. Liquid Temp.: 140 °F (60 °C)
-
Discharge: 3/8" barbed (9.5 mm)
-
Impeller: Glass-filled Polypropylene
-
Electrical: 115 V, 60 Hz, 1A
-
Operation: Automatic
-
Brand: Little Giant
-
Material: Acrylonitrile Butadiene Styrene (ABS)
-
Power Source: Corded Electric
-
Maximum Flow Rate: 1.08 Gallons Per Minute
-
Maximum Lifting Height: 15 Feet
-
Voltage: 115 Volts (AC)
-

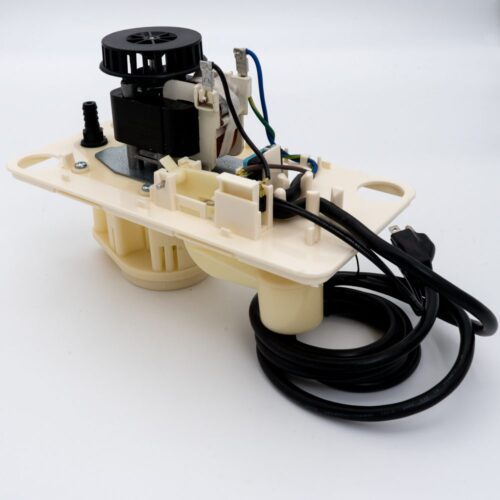

Motor: 1/50 hp, 115 volts, 60 Hz, thermally protected, fan-cooled motor; CSA listed in the USA and Canada
-
Amperage: 1.0 running Amps
-
Wattage: 60 Watts
-
Intake: Three 1-1/8" inlet holes are included, two with covers, to accommodate up to 3 appliances; please check performance specifications to ensure pump can adequately support the three appliances
-
Performance at 1' lift: 65 gph (246.4 lph)
-
Performance at 5' lift: 50 gph (189.5 lph)
-
Performance at 10' lift: 25 gph (94.8 lph)
-
Maximum pressure: 6.5 psi (0.45 bar)
-
Power cord: 6' (1.8 m) power cord with 3-prong 115-volt plug; plug fits standard 115-volt North American outlets
-
Switch: Vertical switch; on at 2.5" (63.5 mm); off at 1.1" (27.9 mm)
-
Overflow switch: Dual function Normally Open (NO)/Normally Closed (NC); comes factory set to Normally Open which shuts down equipment if high water is detected; can be changed to Normally Closed to activate an audible alarm (not included)
-
Tubing included?: No
-
Cord Type: Power
-
Domestic/Import: Import
-
Electrical Ratings: 1/50 hp
-
Flow Rate: 65 gph
-
Impeller Type: Glass-Filled Polypropylene
-
Mounting Type: Wall
-
Power Rating: 60 W
-
Reservoir Capacity: 1/2 gal
-
Series: VCMA-15ULS
-
Shutoff Head: 15 ft
-
Temperature Rating: 140 deg F
-
Type: Automatic
-
Labeling Available: Yes
