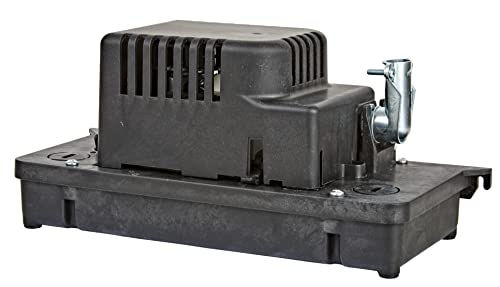

Little Giant 554221101 VCCA-20-P 115 Volt, 1/30 HP, 80 GPH Automatic Condensate Removal Pump

Product Description

The Little Giant VCCA-20-P is an efficient condensate removal pump tailored for low-profile applications within air conditioning, refrigeration, and dehumidification systems when gravity drainage is impracticable. This model operates at 115 volts and is equipped with a 1/30 HP motor, capable of pumping 80 gallons per hour.

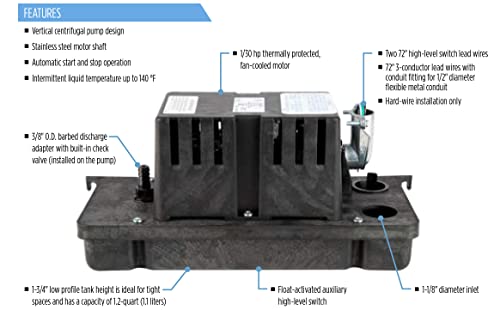

• Designed for use in constrained areas due to its low tank height
• Includes thermal overload protection and a safety switch
• Meets Underwriters' Laboratories Standard 2043 for air handling spaces

Product Highlights

This unit is designed for hardwire installation only and includes various features such as a motor switch test lever, rubber feet to reduce vibration, and three 1-1/8 inch inlets with knock-out plugs. It operates up to a temperature of 140°F.

Product Information

Standard Information

• Brand: Little Giant
• MPN: 554221101

Technical Specifications

• Voltage: 115V
• Horsepower: 1/30 HP
• Flow Rate: 80 GPH at 1 ft lift
• Shutoff Head: 20 ft
• Motor Specifications: Thermal overload protected, 1.5 Amps, 93 Watts
• Pump Specifications: 1/4-turn, 2 discharge adapters for 3/8-inch ID tubing or 3/8-inch copper tubing
