Product Description

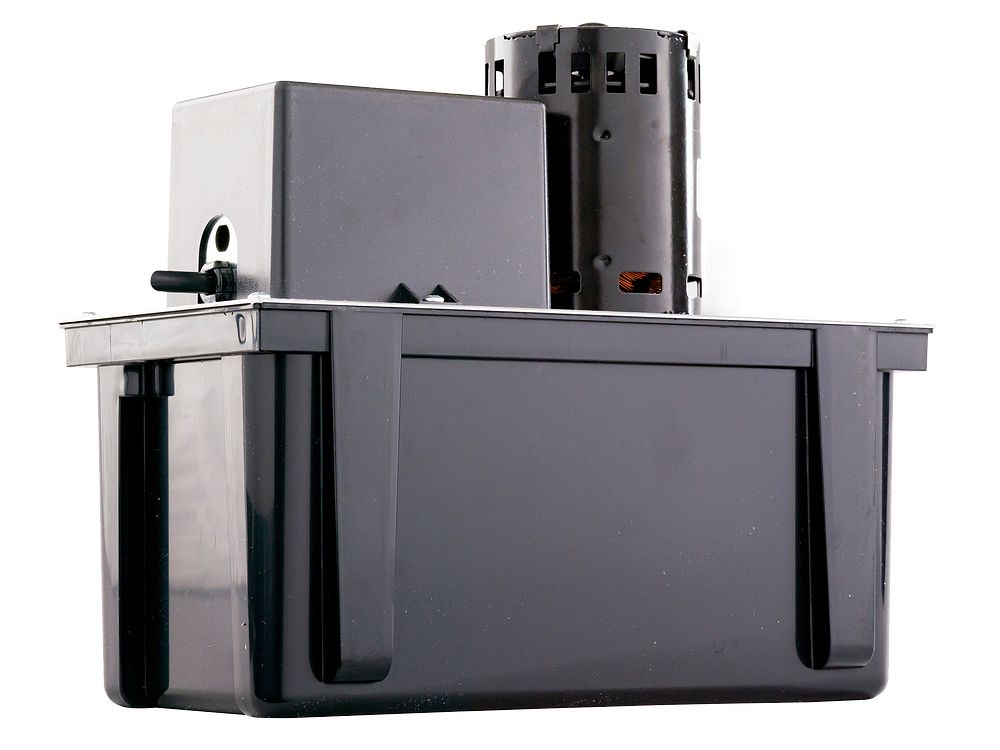

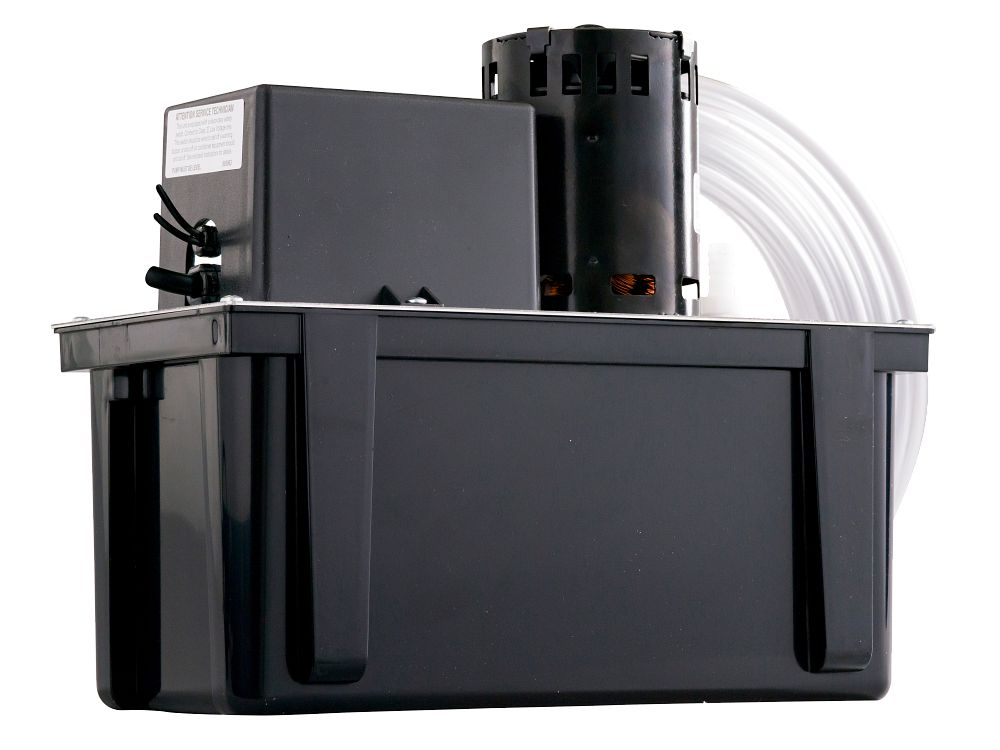

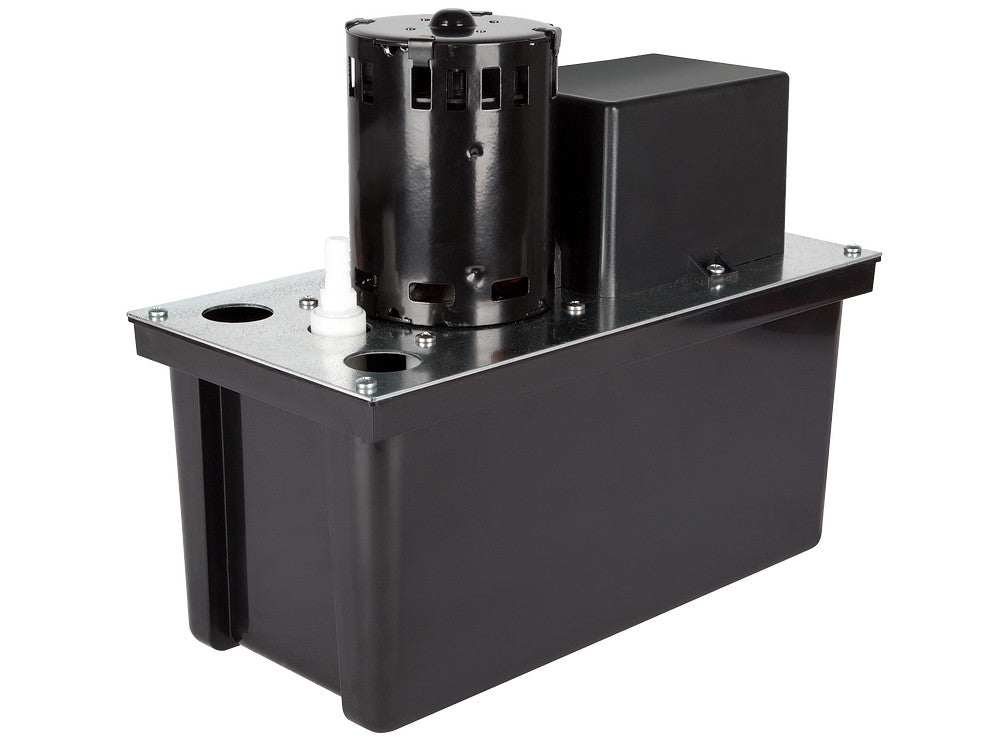

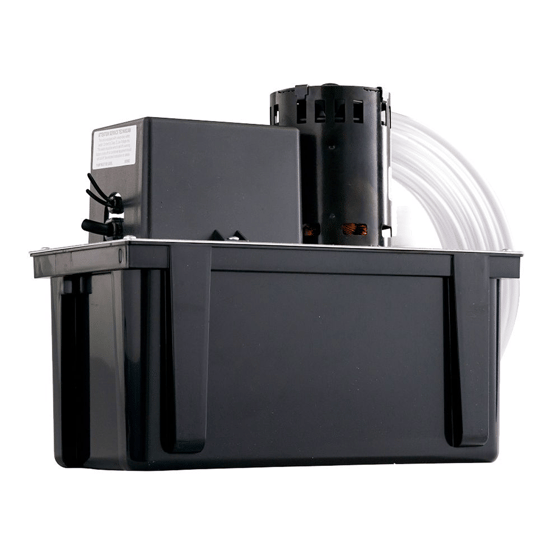

The LITTLE GIANT 553211 VCL-24ULS series pump is designed for high-efficiency gas furnace applications that produce acidic condensate. It is also suitable for removing condensate from air conditioning, refrigeration, and dehumidification equipment. The pump features a safety switch that can shut down equipment or trigger an alarm to prevent overflow.
- Features a 1-gallon ABS tank and a galvanized steel cover.
- The pump has a 270 GPH flow rate at 1' of head and a 24' shut-off head.
- Includes a 1/4" FNPT or 3/8" O.D. barbed discharge adapter.
Product Highlights
This automatic condensate removal pump is ideal for removing condensation from HVAC equipment and high-efficiency furnaces. It features a safety switch and durable construction.
Product Information
Standard Information
-
Brand: LITTLE GIANT
-
Manufacturer Part Number: 553211 VCL-24ULS-230V
-
Country of Origin: MEXICO
Technical Specifications
-
Shutoff Head (ft.): 24'
-
Voltage: 230V
-
Flow at 1 FT Head: 270 GPH
-
Horse Power: 1/18
-
Includes: Safety Switch
-
Capacity: 270 gph @ 1'
-
Max. Liquid Temp.: 120 °F (49 °C)
-
Discharge: 0.25 "
-
Impeller: Polypropylene
-
Electrical: 230 V, 50/60 Hz, 1.2 A
-
Operation: Automatic
-
Material: Acrylonitrile Butadiene Styrene (ABS)
-
Power Source: Corded Electric
-
Maximum Flow Rate: 3.33 Gallons Per Minute
-
Maximum Lifting Height: 24 Feet
-
HP 60Hz: 1/18 hp
-
Frequency: 50Hz/60Hz
-
Amps - Full Load: 1.2 A
-
Full Load Watts: 148 W
-
Volts: 230 VAC
-
Cord Length: 6 ft
-
Maximum Flow Rate - 60Hz: 3.33 gpm
-
Max PSIG: 10.4 PSI
-
Max Flow Rate - 50Hz: 270 gph
-
Shut-Off: 24 ft
-
Safety Switch: Yes
-
Max Fluid Temperature: 120 °F
-
Pump Body Material: Plastic
-
Pump Length: 12.11 "
-
Motor: 1/18 HP
-
Tank Capacity: 1 gallon
-
Intermittent Liquid Temp. up to: 120°F
-
Flow: 270 GPH @ 1' of Head
-
Discharge Adapter: 1/4" FNPT or 3/8" O.D. barbed
-
Housing: ABS
-
Cover: Galvanized steel
-
Motor Shaft: Stainless steel
-
Volute: ABS
-
GPH @ 1': 270
-
GPH @ 15': 175
-
GPH @ 20': 105
-
GPH @ 5': 250
-
GPH @ 9': 210
-
HP: 1/18
