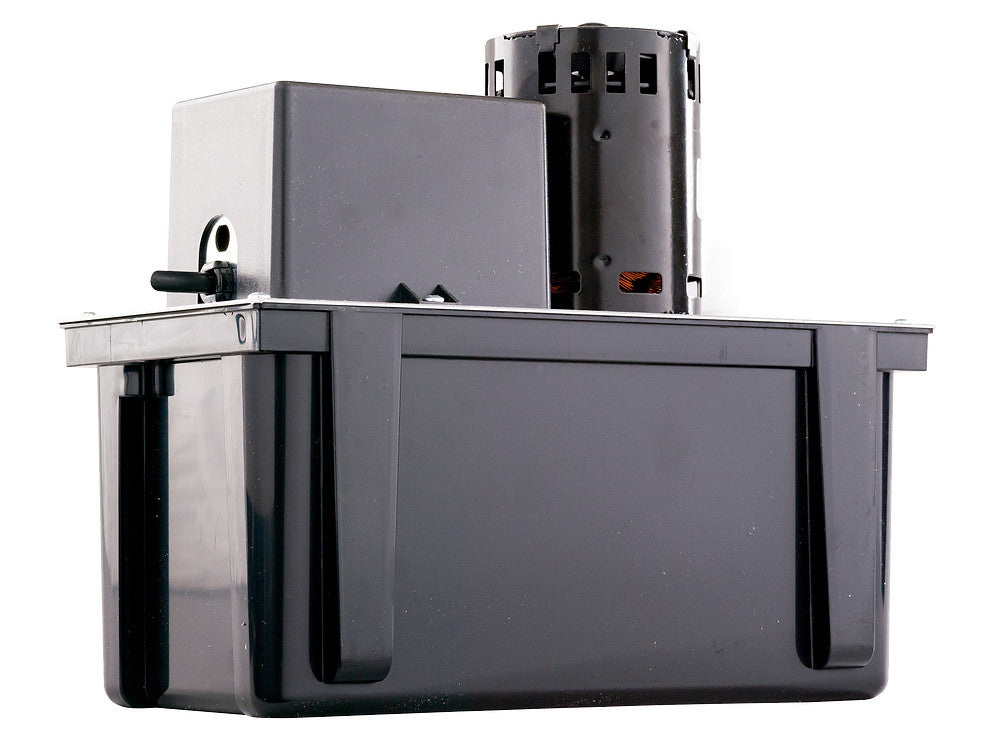

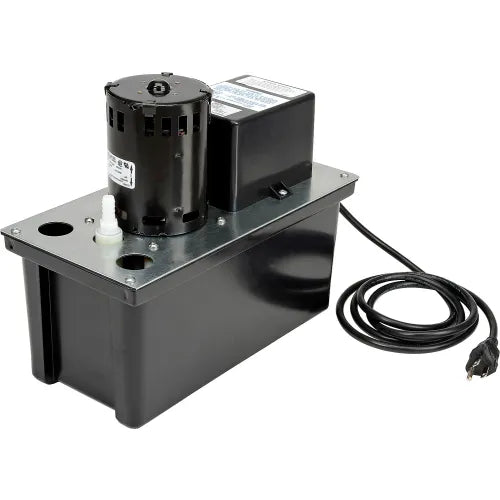

Little Giant 553201 VCL-24ULS automatic condensate removal pump 1/18 hp with 1-gallon tank

Product Description

The LITTLE GIANT 553201 VCL-24ULS is a 1/18 HP automatic condensate removal pump designed for removing condensate from air conditioning, refrigeration, and dehumidification equipment. It is also suitable for high-efficiency oil and gas-fired condensing furnace and boiler equipment. The pump features a safety switch and a large capacity 1-gallon tank. The pump is controlled by a float/switch mechanism.

• Features a safety switch and 1-gallon ABS plastic tank.
• Equipped with a thermally protected, fan-cooled concentric motor with stainless steel motor shaft.
• Designed for automatic collection and removal of condensate.

Product Highlights

This condensate removal pump is ideal for air conditioning units, refrigeration, and dehumidification equipment. It features a safety switch, a 1-gallon tank, and a thermally protected motor.

Product Information

Standard Information

• Brand: LITTLE GIANT
• Manufacturer Part Number: 553201 VCL-24ULS-115V

Technical Specifications

• Brand: Little Giant
• Voltage: 115 Volts
• Horsepower: 1/18 HP
• Maximum Flow Rate: 4.5 Gallons Per Minute
• Performance at 1' lift: 270 gph (1023.3 lph)
• Performance at 3' lift: 260 gph (985.4 lph)
• Performance at 5' lift: 250 gph (947.5 lph)
• Performance at 9' lift: 210 gph (796 lph)
• Shut-off: 24' (7.3 m)
• Discharge: 0.38 "
• Amperage: 2.5 running Amps
• Wattage: 148 Watts
• Electrical: 115 V, 60 Hz, 2.5 A 230 V, 50/60 Hz, 1.2 A
• Operation: Automatic
• Frequency: 60 Hz
• Full Load Watts: 148 W
• Cord Length: 6 ft
• Continuous Duty: Yes
• Max PSIG: 10.4 PSI
• Safety Switch: Yes
• Max Fluid Temperature: 120 °F
• Pump Base Material: Plastic
• Pump Body Material: Plastic
• Discharge Type: Barb
• Product Length: 12.11 "
• Product Width: 6 "
• Product Height: 10.4 "
• Pump Length: 12.11 "
• Electrical Agency Approvals: CSA
• Gallons per Minute: 4.5 gal/min
• Gallons per Hour: 270 @ 1' gal/hr
• Manufacturers Part Number: 553201
• Suction Draw Head: 24 ft
