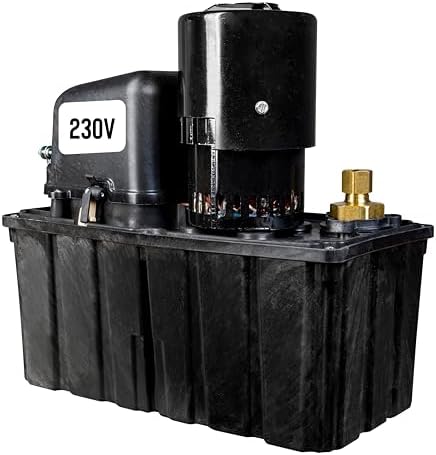

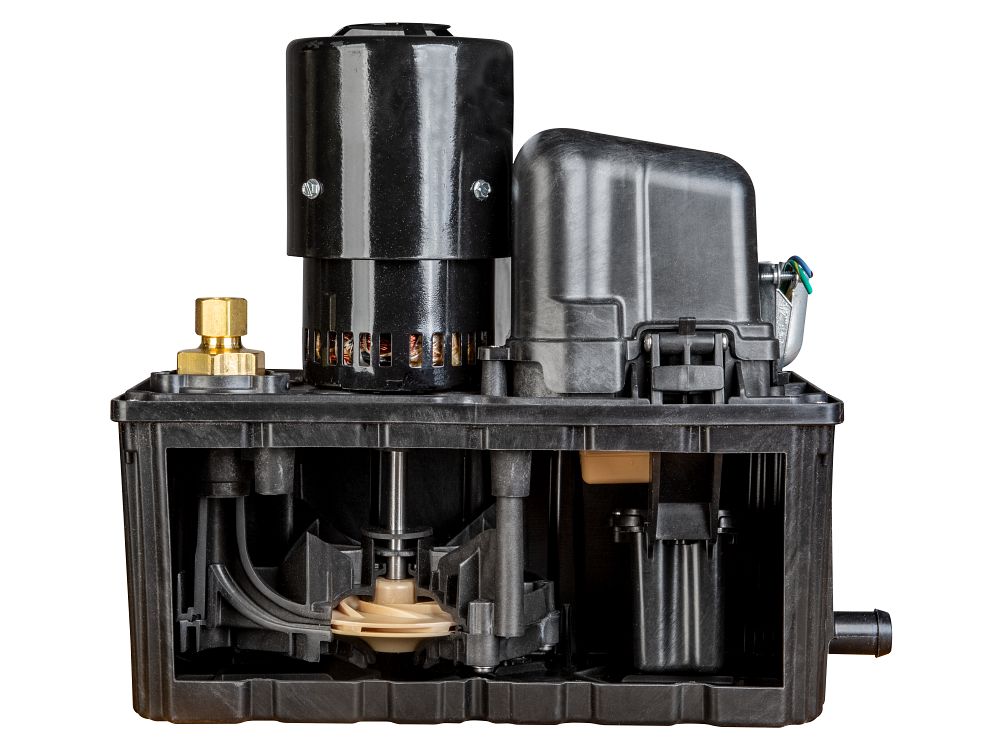

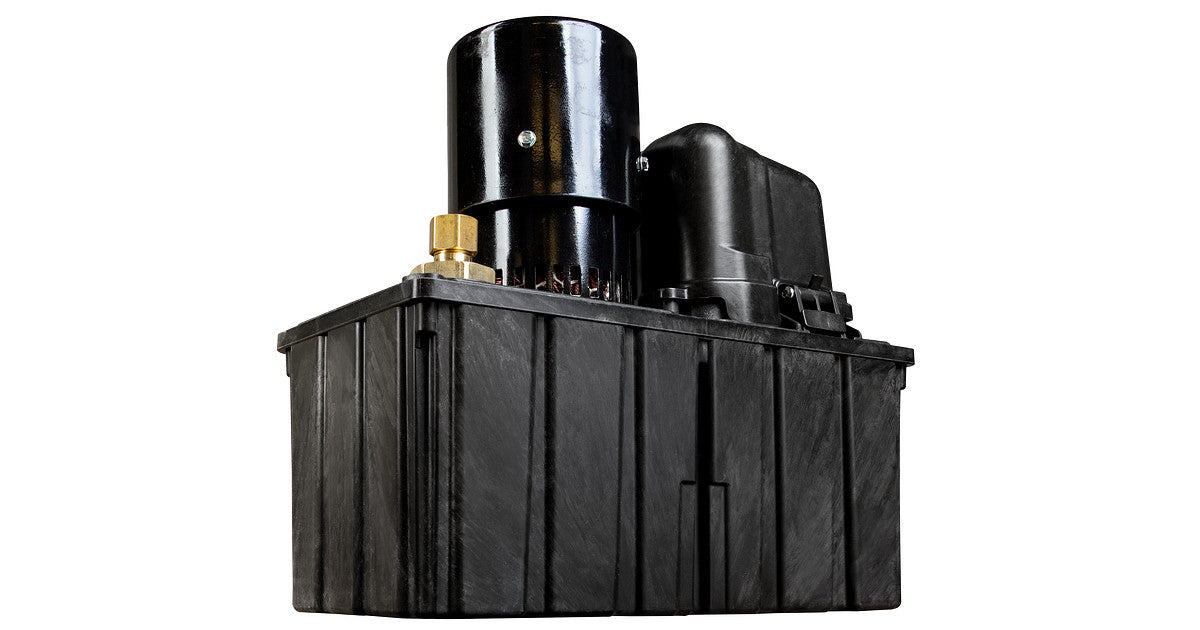

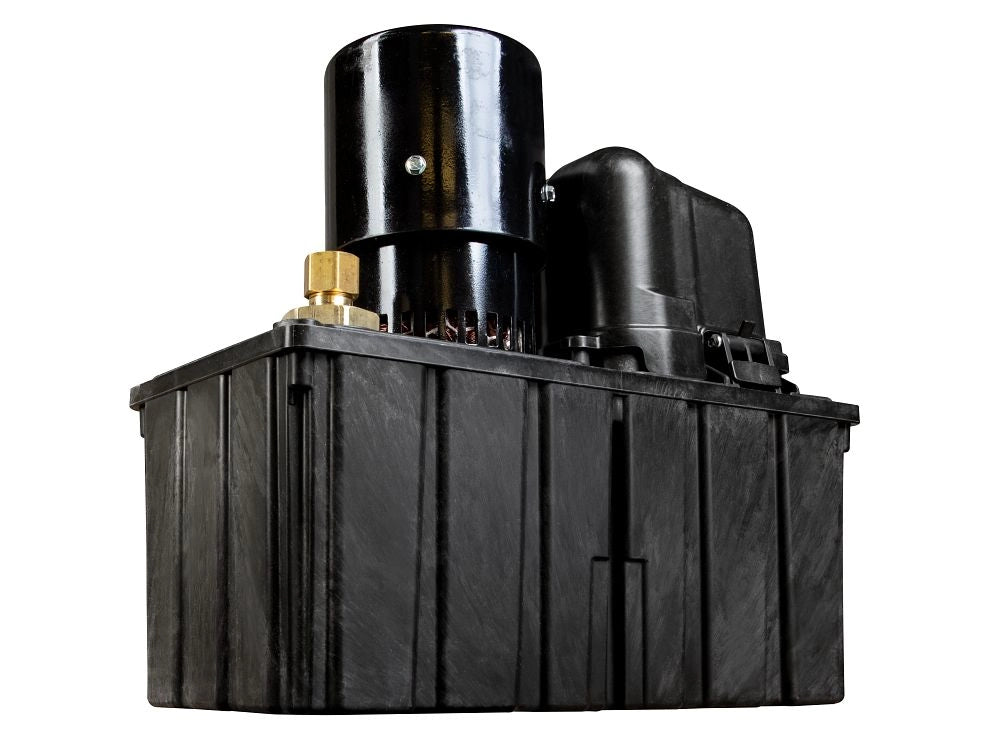

Little Giant 553160102 HT-VCL-60-P series high-temp condensate pump 1/3 hp 1 gallon

Product Description

The LITTLE GIANT 553160102 HT-VCL-60-P Series is a high-temperature condensate pump designed for plenum applications. Rated for up to 212 °F (100 °C), it efficiently removes condensate from HVAC systems, steam humidifiers, and boiler applications. This pump features a low-profile design and is compliant with UL standard UL2043 for air-handling spaces. An automatic float switch mechanism controls pump operation, ensuring reliable condensate removal.

• 1/3 horsepower thermally-protected, fan-cooled motor
• 1-gallon collection tank
• Stainless steel motor shaft

Product Highlights

Designed for plenum applications, this pump handles high-temperature condensate up to 212 °F, ensuring efficient removal from steam humidifiers and boilers.

Product Information

Standard Information

• Brand: LITTLE GIANT
• Manufacturer Part Number: 553160102

Technical Specifications

• Flow Rate: 575 gph @ 5'
• Shut-Off Height: 62 ft
• Max Fluid Temperature: 212 °F (100 °C)
• Discharge Connection: Brass with compression nut and ferrule fits Type L drawn (hard) copper tubing, 1/2" outer diameter, 7/16" inner diameter
• Impeller Material: Glass-filled Polypropylene
• Operation: Automatic
• Model Number: HT-VCL-60-P
• Input Voltage: 208 VAC / 230 VAC
• Safety Switch: Yes
• Tubing Included: No
• Horsepower: 1/3 hp
• Input Frequency: 50Hz/60Hz
• Full Load Amps: 4 A
• Full Load Watts: 300 W
• Max Pressure: 26.9 PSI
• Maximum Suction Lift: 18.9 Meters
• Max Solid Handling Size: 0 "
• Collection Tank Capacity: 1 gal
• Pump Base Material: Polypropylene
• Pump Body Material: Polypropylene
• Impeller Type: Closed
• Suction Type: Screened
• Certifications: CSA, UL 2043
• Motor Shaft Material: Stainless steel
• Inlet Diameter: 1.07" (with 0.69" diameter rubber grommet)
• Switch Type: Float-activated
• Lead Wire Length: 14 ft
• Conduit Fitting: Adjustable right angle conduit fitting for use with flexible EMT
• Additional Inlet: Bottom inlet when drain outlet height is limited
• Motor Type: Permanent Split Capacitor (PSC), thermally protected
• Motor Frequency: 60 Hz
• Performance at 10' lift: 560 gph (2120 lph)
• Performance at 20' lift: 505 gph (1911 lph)
• Performance at 30' lift: 450 gph (1703 lph)
• Performance at 40' lift: 375 gph (1419 lph)
• Performance at 60' lift: 66 gph (250 lph)
