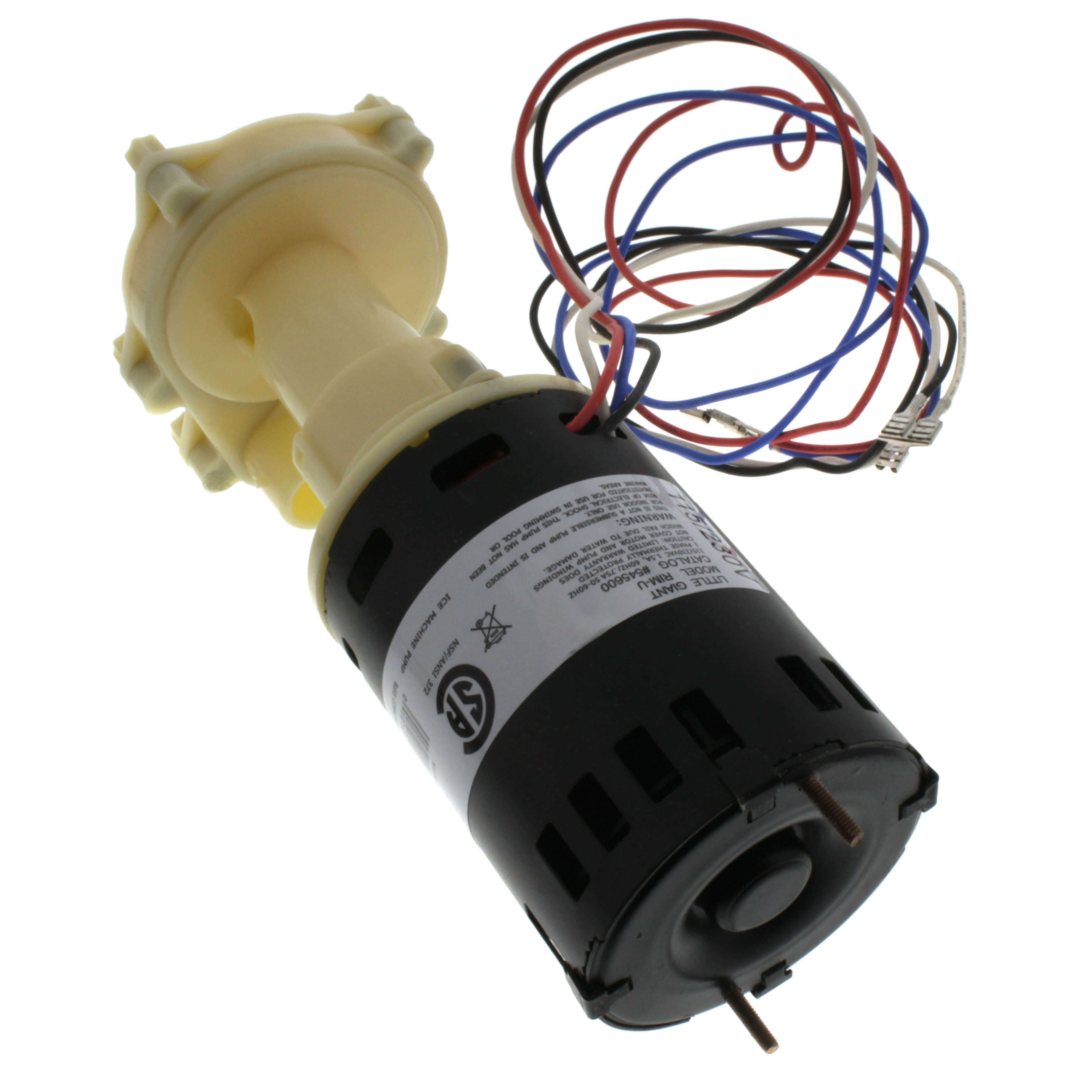

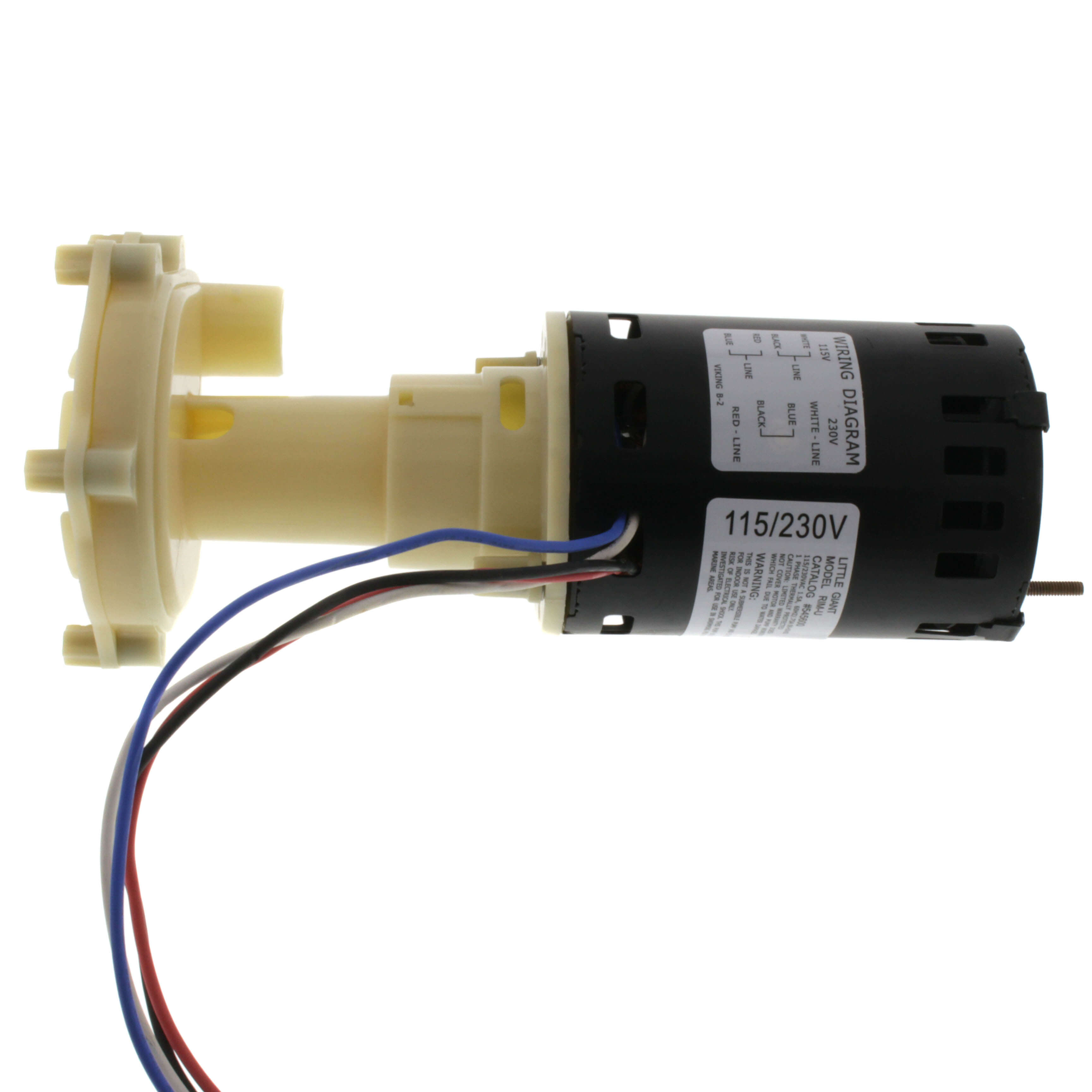

Little Giant 545600 Universal Ice Machine Replacement Pump 1/25 HP (1 PACK) 545600

Product Description

The Little Giant 545600 is a universal ice machine replacement pump designed for reliable operation. This pump operates on dual voltage systems at one hundred fifteen or two hundred thirty volts and is suitable for a wide range of ice machines. Equipped with a horsepower rating of one quarter, it ensures effective water movement.

• Dual voltage compatibility for versatile applications.
• Built with NSF-listed materials for safety and durability.
• Includes multiple impeller and discharge configurations to fit various models.

Product Highlights

This pump features a low-profile design with a screened intake and easy disassembly for maintenance. The materials used are corrosion-resistant and include ABS for the housing and stainless steel for the motor shaft.

Product Information

Standard Information

• Brand: Little Giant
• MPN: 545600

Technical Specifications

• Voltage: 115/230 V
• Horsepower: 1/25 HP
• Hertz: 50/60 Hz
• Amperage: 1.5/.75 A
• Material: ABS and stainless steel
• Weight: 5 lbs
• Dimensions: 11.25 inches (L) x 5.5 inches (W) x 4.5 inches (H)
• Max Head: 2 ft
• Gallons per Minute: 12.6 gal/min
• Rotations per Minute: 3165 rpm
• Inlet Connection: 1-1/2 in FNPT
• Discharge Connection: 1-1/2 in FNPT
• Cord Length: 3 ft
• Warranty: 1 year
