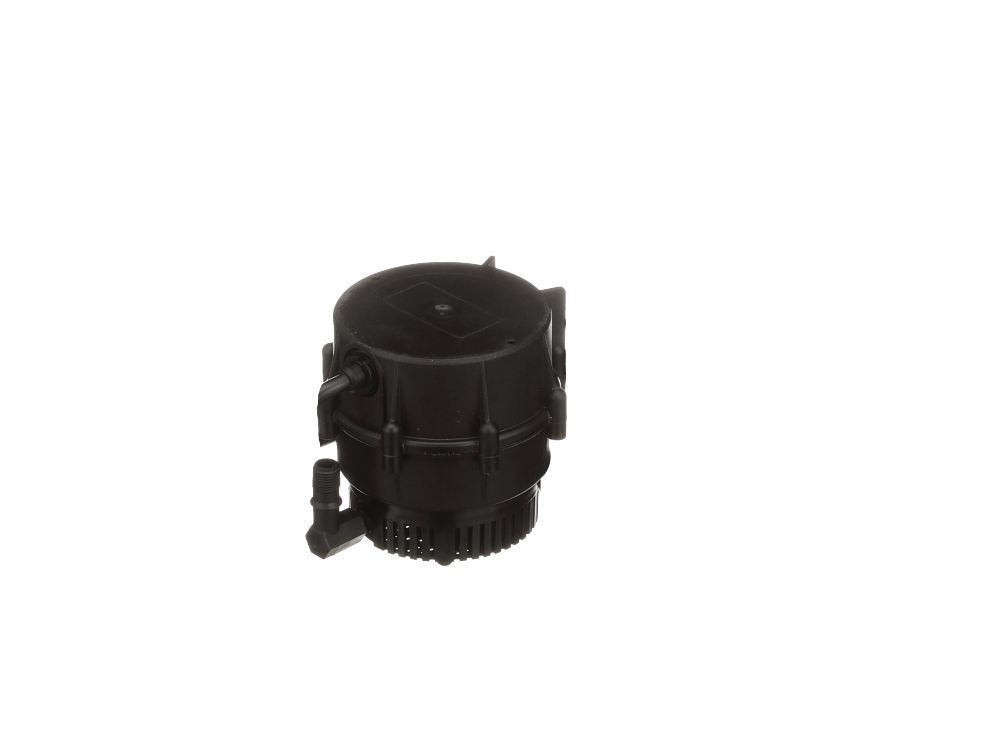

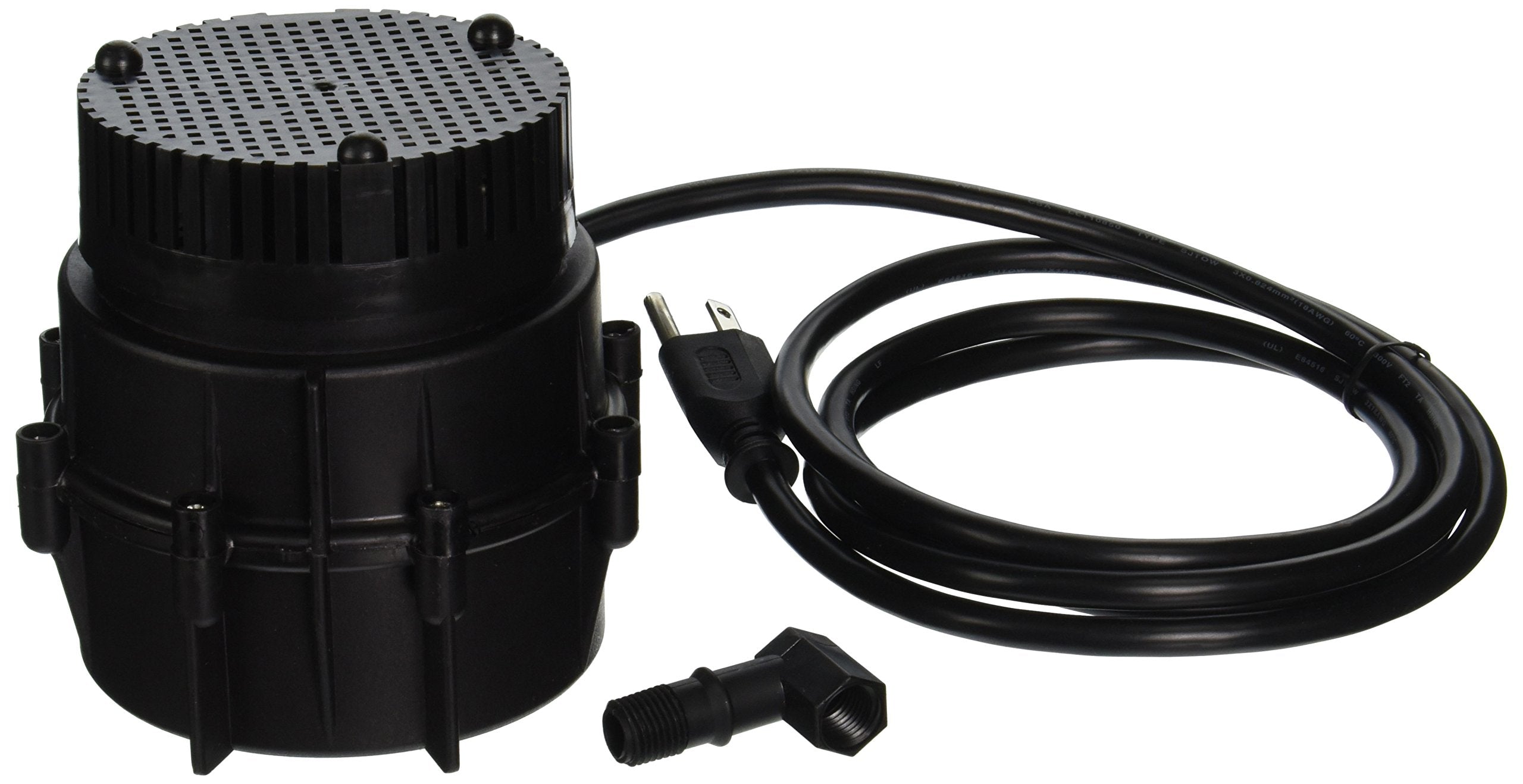

Little Giant 527003 NK-2 Multi-Purpose Pump 1/40 HP

Product Description

The LITTLE GIANT 527003 NK-2 multi-purpose pump is designed for commercial, industrial, and home use for liquid transfer or recirculation. It is suitable for aquariums, swimming pools, water displays, ice makers, and air conditioners. It can also be used for boat bailing, fuel oil transfer, and pumping mild chemicals.

• For commercial, industrial, and home use
• Suitable for aquariums, swimming pools, water displays, ice makers, air conditioners
• Can be used for boat bailing and fuel oil transfer

Product Highlights

This multi-purpose pump is ideal for various applications requiring liquid transfer or recirculation.

Product Information

Standard Information

• Brand: LITTLE GIANT
• Manufacturer Part Number: 527003
• Country of Origin: Mexico

Technical Specifications

• Type: Multi-Purpose Pump
• Brand: Little Giant
• Hertz: 60 Hz
• Phase: 1
• Series: NK-2
• Voltage: 115 V
• Wattage: 100 W
• Amperage: 1.7 A
• Includes: 6' Cable
• Material: Nylon
• Horsepower: 1/40 HP
• Width: 5 in
• Submersible: Yes
• Height: 3-11/16 in
• Length: 4-9/16 in
• Max Pressure: 4.4 psi
• Max Head: 12.3 ft
• Gallons per Hour: 325 gal/hr
• Cord Length: 6 ft
• Gallons per Minute: 5.4 gal/min
• Shaft Seal Material: Viton
• Continuous Operation: Yes
• Rotations per Minute: 3400 rpm
• Max Fluid Temperature: 120 °F
• Discharge Connection Type: MNPT
• Manufacturers Part Number: 527003
• Discharge Connection Size: 1/4 in
• Temperature of Liquid Pumped: 120
• Warranty: 1 yr
• Maximum Lift: 12.3'
• Motor: 1/40 HP oil filled
• Housing Material: Nylon
• Cover Material: Nylon
• Volute Material: Nylon
• Impeller Material: Nylon
• Screen Material: Polypropylene
• Flow: 325 GPH at 1' of Head
• Shut Off: 12.3'
• Discharge: 1/4 MNPT
• Application: Recirculation
• Flow at 1 FT Head: 325 GPH
• Shutoff Head (ft.): 12.3'
• Country of Origin (subject to change) [Specifications]: Mexico
• Frequency: 60 Hz
• Amps - Full Load: 1.1 A
• Full Load Watts: 100 W
• Volts: 115 VAC
• Maximum Flow Rate - 60Hz: 5.42 gpm / 325 gph
• Flow Rate At 1ft: 5.42 gpm / 325 gph
• Shut Off Height - 60Hz: 12.3 ft
• Max PSIG - 60Hz: 4.4 PSI
• Pump Body Material: Nylon
• Discharge Head Material: Thermoplastic
• Discharge Material: Thermoplastic
• Intake Screen Material: Polypropylene
• Seal Material: FKM
• Seal Type: Lip Seal Ring
• Discharge Type: Threaded - MNPT
• Suction Type: Screened
• Product Length: 5 "
• Product Width: 5 "
• Product Height: 4.6 "
• Pump Length: 5 "
• Product Weight: 4.5 lb
• Product Weight w/ Pack: 5 lb
• Carton Length: 7.25 "
• Carton Width: 6.63 "
• Carton Height: 5 "
• Minimum Order Quantity: 1
• Electrical Agency Approvals: CSA
• Standard Warranty: 12 Month Install / 12 Month Manufacturing
• Capacity: 325 gph @ 1'
• Max. Liquid Temp.: 120 °F (49 °C)
• Impeller: Nylon
• Electrical: 115 V, 60 Hz, 1.7 A 230 V, 50/60 Hz, 0.9/0.7 A
• Type Design: Direct Drive Submersible
• Maximum Flow Rate: 5.42 gpm
• Max ft of Head: 12 ft
• Intake: Smooth Sump
• Full Load Amps: 1.7
• Wetted Materials: Nylon Impeller
• O Ring Material: Nitrile
• Seal: Fluoroelastomer (FKM)
• SPECIAL_ORDER_ITEM: N
• Special Order Item: N
