Little Giant 517252 PWM5200 Wet Rotor Waterfall, Stream, Pond Pump 4080 GPH

Product Description

The Little Giant submersible PWM5200 high volume wet rotor pump is durable, reliable and energy efficient. Its power and simplicity of operation makes it the perfect choice for many water gardening applications, especially waterfalls. This pump delivers up to 4080 GPH at 1-ft. lift and comes with a 20-ft. cord.

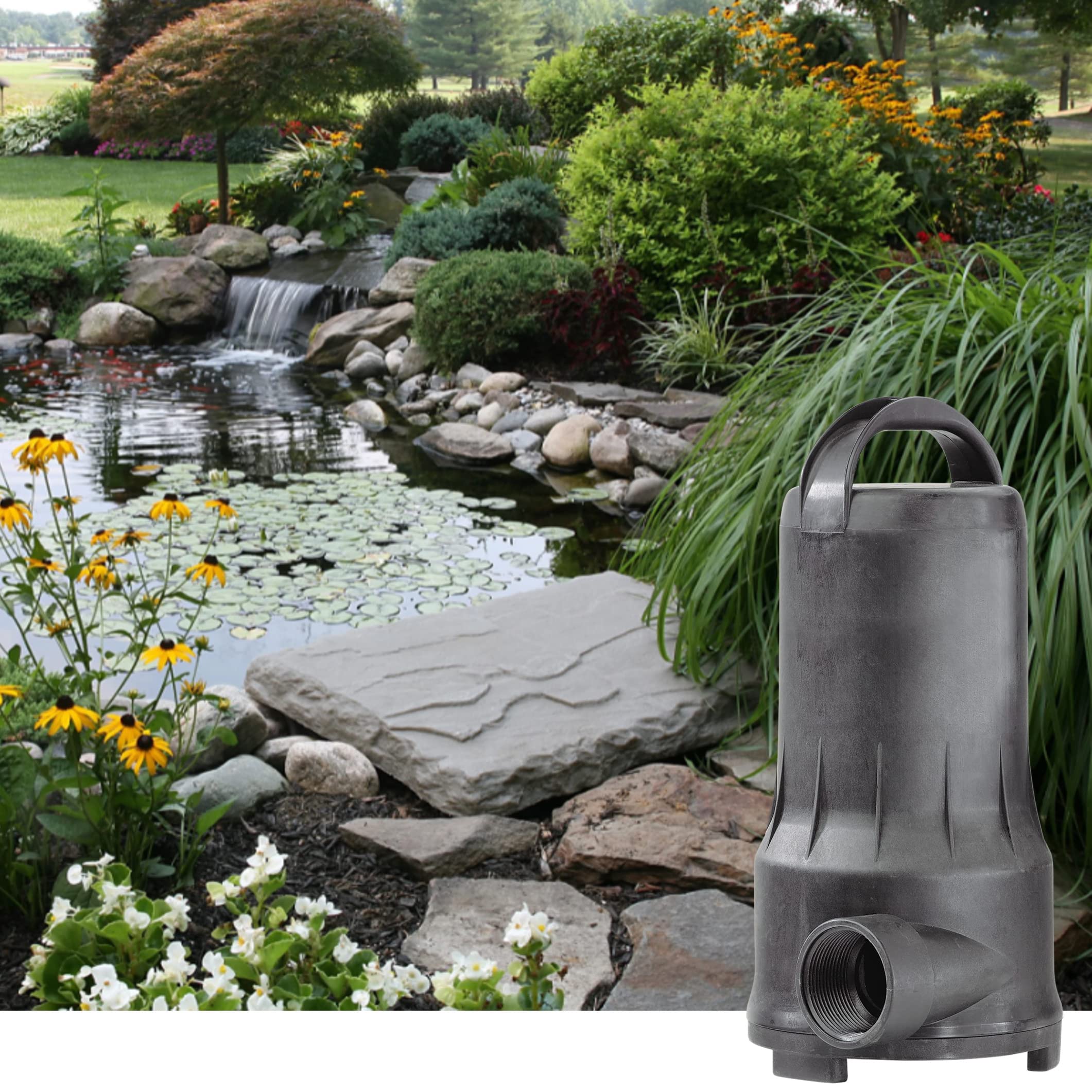

• Perfect choice for waterfalls, streams, ponds, fountains, and water displays
• Uses between 40 - 60% less electricity than conventional direct drive pumps
• Oil-less design for consistent and safe operation in any habitat; safe for fish

Product Highlights

The Little Giant PWM5200 wet rotor pump is energy efficient and reliable. Ideal for waterfalls, streams, ponds, fountains, and water displays.

Product Information

Standard Information

• Brand: LITTLE GIANT
• Manufacturer Part Number: 517252

Technical Specifications

• Voltage: 115 Volts
• Amps: 5.0 Amps
• Watts: 410 Watts

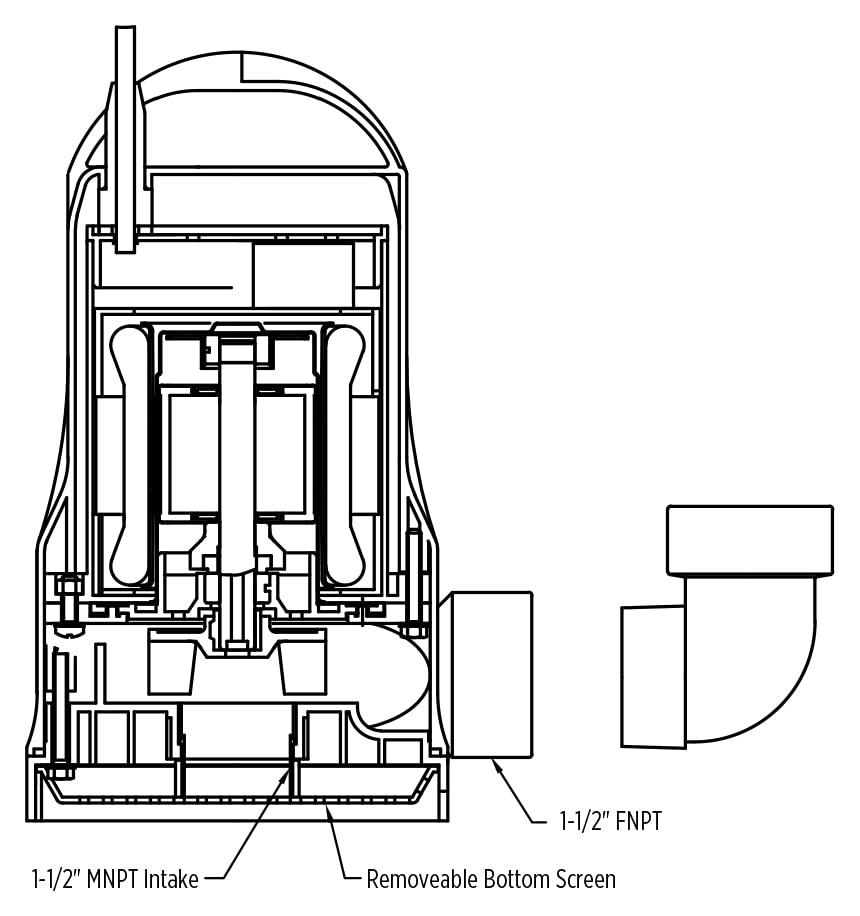

• Intake: 1-1/2" MNPT
• Discharge: 1-1/2" FPT (female threaded)
• GPH at 1-ft. lift: 4080 GPH
• Shutoff: 20 ft
• Maximum Pressure: 8.6 PSI
• Cord Length: 20 ft
• Maximum Flow Rate - 60Hz: 68 gpm / 4080 gph
• Discharge Type: Threaded - FNPT
• Suction Type: MNPT
• Product Length: 6.75 "
• Product Width: 5.75 "
• Product Height: 11.5 "
• Pump Length: 6.75 "
• Product Weight: 13.5 lb
• Type: High Volume
• PowerRating: 410 W
• FlowCapacity: 4080 gph at 1 ft, 3480 gph at 5 ft, 2520 gph at 10 ft, 1115 gph at 15 ft
• Motor: PSC
• Maximum Flow Rate: 68 Gallons Per Minute
• Little Giant Part Number: PWM5200 (517252)
• Flow Rate @ 1 Ft. of Head: 4,080 GPH
• Flow Rate @ 5 Ft. of Head: 3,460 GPH
• Flow Rate @ 10 Ft. of Head: 2,460 GPH
• Flow Rate @ 15 Ft. of Head: 1,080 GPH
• Maximum Head: 20 ft.
• Power Consumption: 410 W / 5.0 A
• Fittings Included: 1-1/2" and 2" adapters
• Power Cord Length: 20 ft.
• Inlet Size: 1 1/2"
• Outlet Size: 1 1/2"
• Wattage: 410 W
