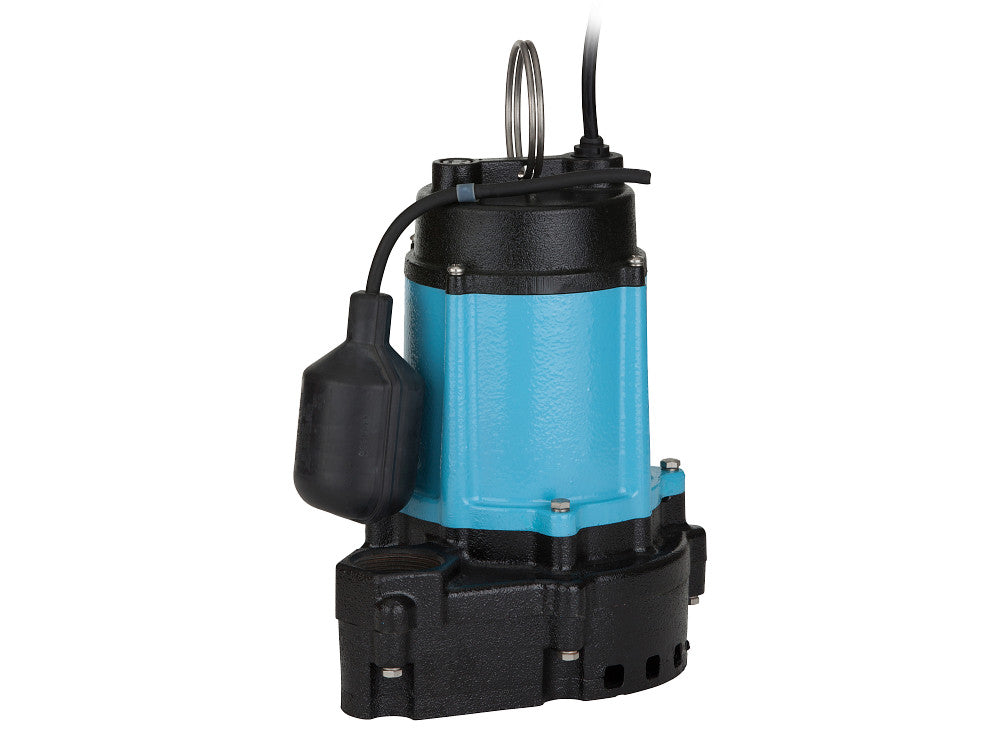

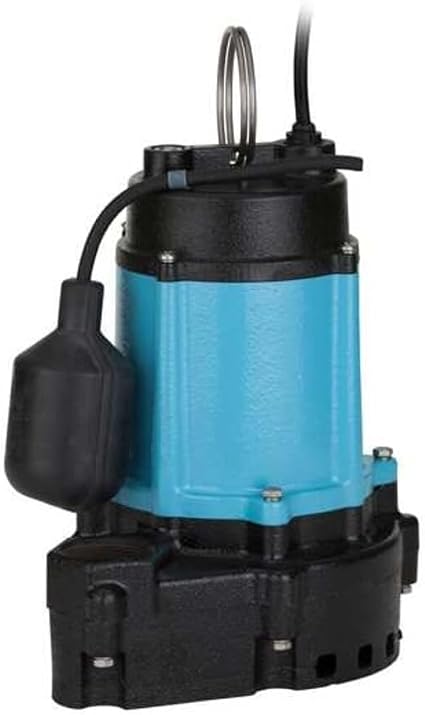

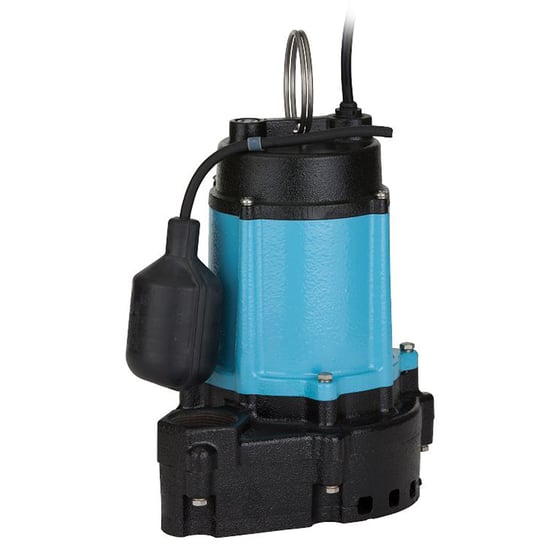

Little Giant 510852 10EC series piggyback mechanical float cast iron base sump pump 1/2 hp replacement 10En

Product Description

The Little Giant 510852 10EC Series Sump Pump is a 1/2 hp submersible unit designed for continuous duty in effluent and dewatering applications. Featuring a permanent split capacitor (PSC) motor with thermal overload protection, it handles solids up to 0.5 inches and liquids up to 140°F. This pump delivers 67 GPM at 5 feet of head with a 36-foot maximum shut-off. Constructed with epoxy-coated cast iron, it ensures durability and efficient performance.

• 1/2 hp motor with a full-load rating of 6.5 amps, delivering 67 GPM at 5 feet of head and a 36-foot maximum shut-off.
• Features a permanent split capacitor (PSC) motor for lower current draw, higher energy efficiency, and improved performance.
• Equipped with a reliable snap-action float switch (SFS) with rugged stainless steel switch arms for automatic operation.

Product Highlights

Continuous duty 1/2 hp sump pump with PSC motor, cast iron construction, and 140°F liquid temperature rating.

Product Information

Standard Information

• Brand: LITTLE GIANT
• Manufacturer Part Number: 510852
• Country of Origin: China

Technical Specifications

• MPN: 510852
• Input Voltage: 115 VAC
• Frequency: 60 Hz
• Full Load Amps: 6.5 A
• Starting Amps: 14.5 A
• Power Consumption: 750 W
• Flow Rate: 67 GPM @ 5 ft, 57 GPM @ 10 ft, 52 GPM @ 15 ft, 47 GPM @ 20 ft, 28 GPM @ 30 ft
• Shut Off Head: 36 ft
• PSI: 15.6
• Model: 10EC-CIA-RF
• Horsepower: 1/2 HP
• Base Material: Cast Iron
• Switch Type: Piggyback Mechanical Float
• On Level: 13 - 15 in
• Off Level: 6 - 8 in
• Cord Length: 20 ft
• Phase: Single-Phase
• Cord Type: SJTW
• Cord Gauge/Conductor: 18-3
• Motor Type: Submersible
• Duty Cycle: Continuous
• Thermal Overload Protection: Yes
• Minimum Flow Rate: 5 GPM
• Minimum Head: 5 ft
• Stages: 1
• Max Solid Handling Size: 0.5 in
• Motor Cooling: Oil
• Max Fluid Temperature: 140 °F
• Volute Material: Cast Iron
• Impeller Type: Non-Clog
• Impeller Material: Nylon
• Motor Shaft Material: SAE 1040/45 Carbon Steel
• Intake Screen Material: Cast Iron Epoxy
• Fasteners Material: Stainless Steel
• Top Bearing Material: Steel
• Top Bearing Type: Ball
• Bottom Bearing Material: Steel
• Bottom Bearing Type: Ball Bearing
• Seal Material: Carbon/Ceramic, Nitrile
• Seal Type: Mechanical Seal
• Discharge Type: Threaded FNPT
• Discharge Size: 1.5 in
• Certifications: cCSAus
• Series: 10 EC Series
• Product Type: Effluent Pump, Submersible Sump Pump
• Application: Effluent, Dewatering, Water Transfer, Waste Removal
• Casing Material: Epoxy-coated Cast Iron
• Motor Casing Material: Epoxy-coated Cast Iron
• Operation: Automatic
• Motor Design: Permanent Split Capacitor
• Minimum Sump Pit Diameter: 11 in
• Body Diameter: 8.5 in
• Switch Actuation: Tether Float
• Switch Electrical Connection: Piggyback
• Impeller Design: Semi-Open
• Installation: Submersible
• Media Type: Effluent Water
• Industry Application: Residential
• Maximum Rotation Speed: 3450 RPM
• Shaft Seal Type: Single Mechanical
• Discharge Connection: 1.5 in FNPT Vertical
