Little Giant 510803 10EC-CIA-SFS 1/2 HP 10 FT Replacement MPN

Product Description

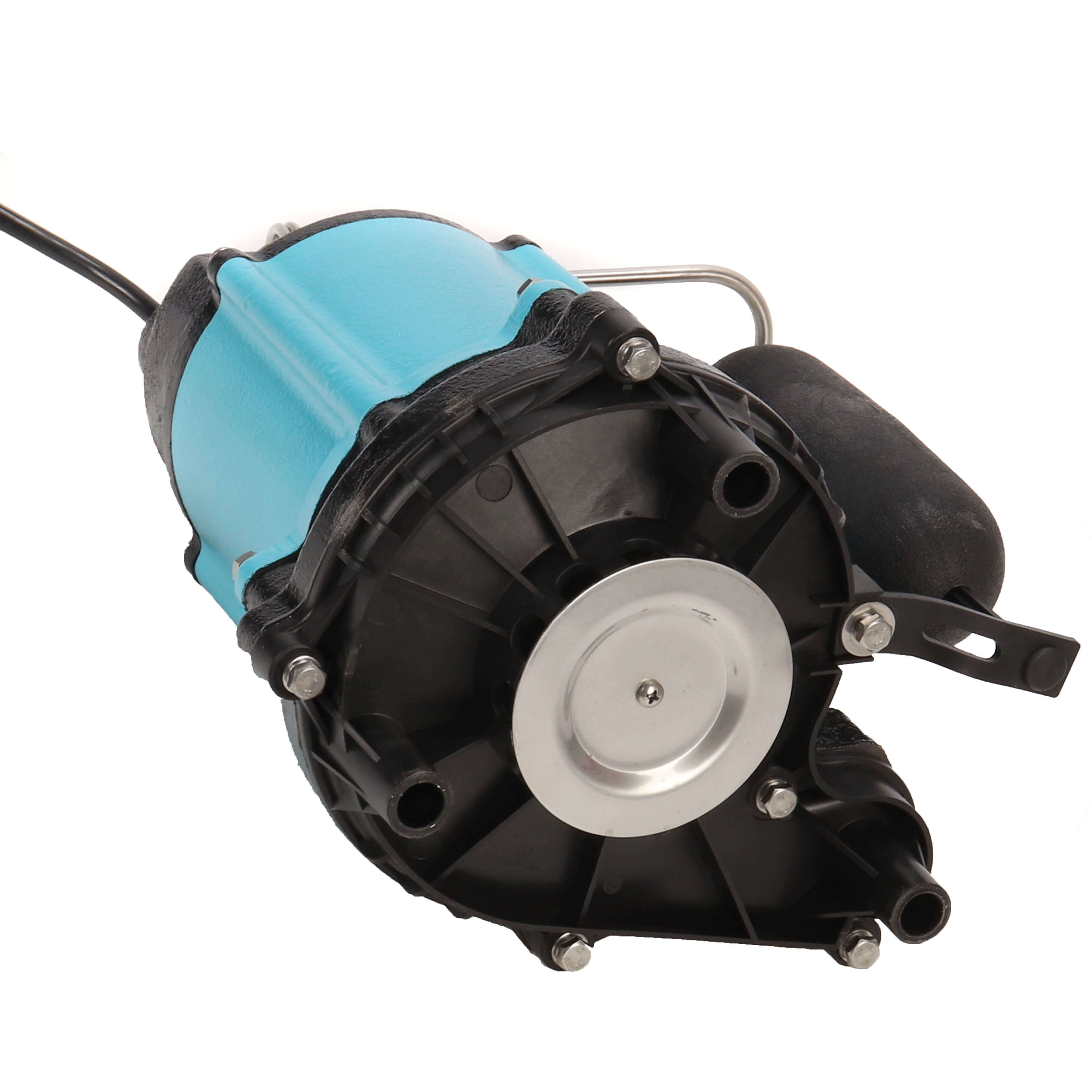

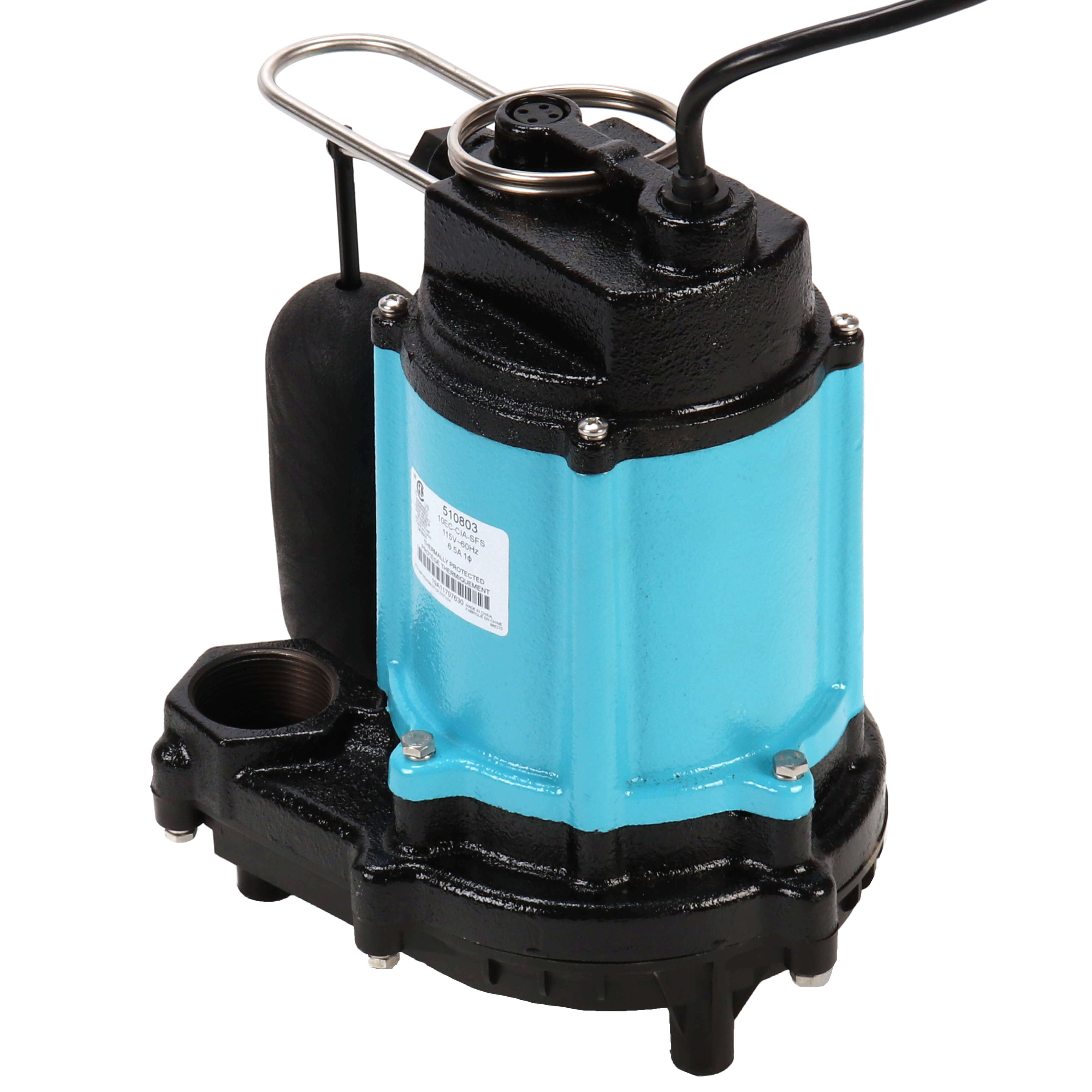

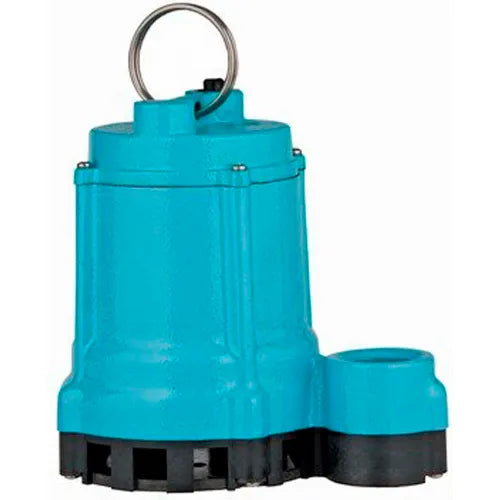

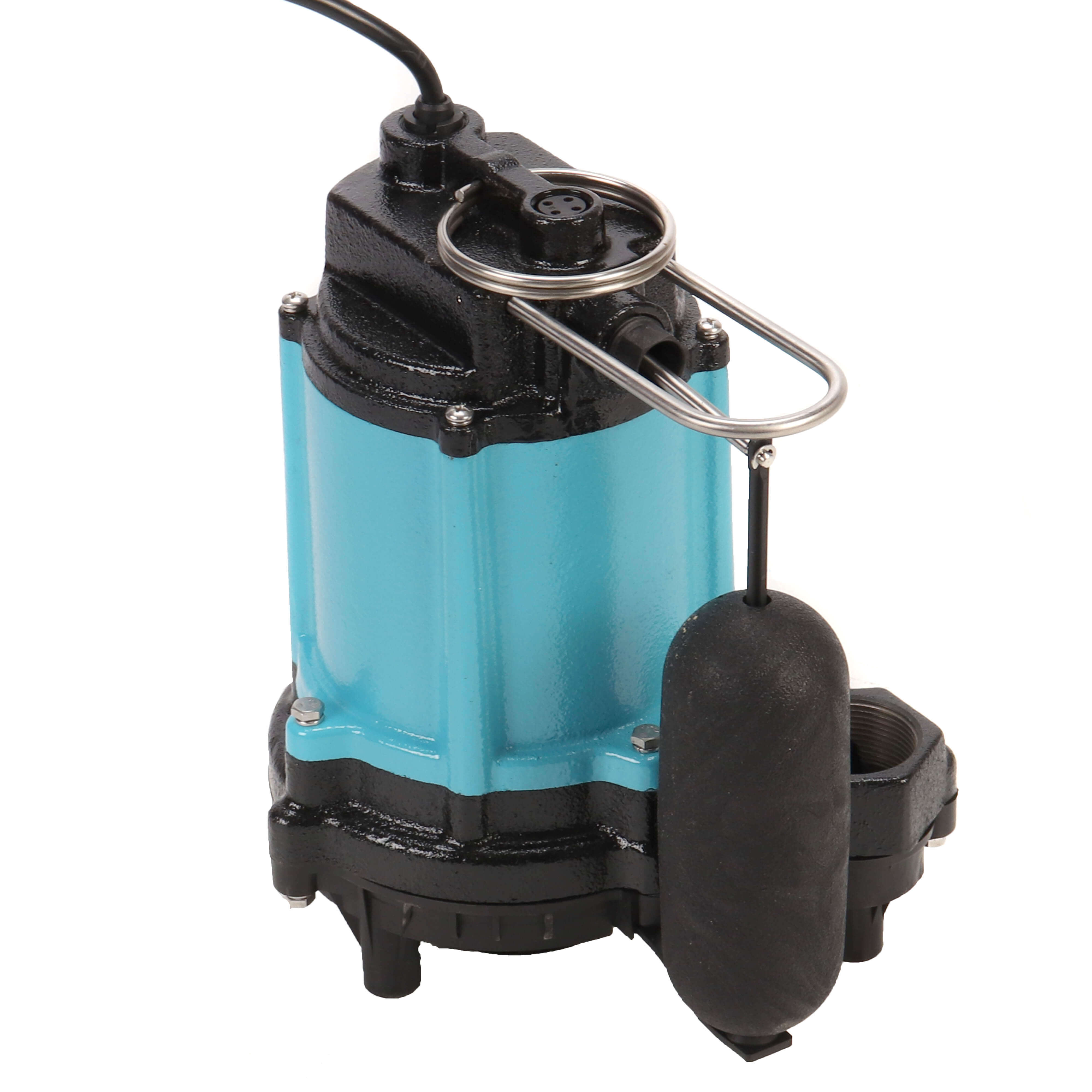

The Little Giant 510803 is a 1/2 horsepower automatic submersible pump designed to handle effluent wastewater removal, dewatering, and water transfer. This pump is equipped with a permanent split capacitor motor, making it energy efficient while also providing quiet operation. It has a discharge size of 1-1/2 inches and can handle solids up to half an inch in diameter.

• Made from durable cast iron and features a polypropylene base.
• Designed for continuous duty with low energy demand.
• Temperature rating of 140 degrees Fahrenheit for various applications.

Product Highlights

This model is suitable for applications that require reliable operation and high efficiency. Its robust construction allows for long life in demanding environments.

Product Information

Standard Information

• Brand: Little Giant
• Series: 10EC

Technical Specifications

• MPN: 510803
• Horsepower: 1/2 HP
• Voltage: 115 V
• Amperage: 6.5 A
• Maximum Flow Rate: 67 GPM
• Maximum Head: 36 ft
• Suction Lift: 30 ft
• Discharge Connection Type: FNPT
• Temperature of Liquid Pumped: 140 °F
• Weight: 29 lbs
• Dimensions: 10.66 in L x 8.48 in W x 11.28 in H
• Rotational Speed: 60 Hz
• Discharge Diameter: 1-1/2 in
• Maximum Diameter Solids: 1/2 in
• Warranty: 1 yr
