Little Giant 506410 SPBS-12HF-10 Sump Pump Battery Backup System 1/2 HP

Product Description

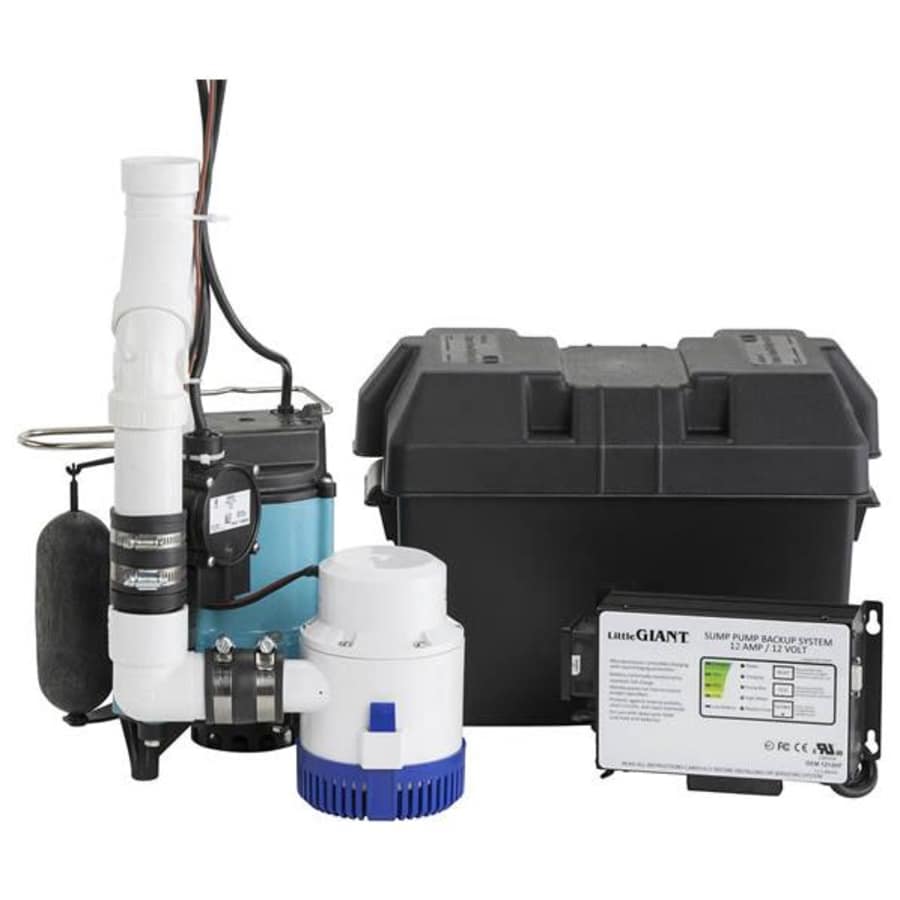

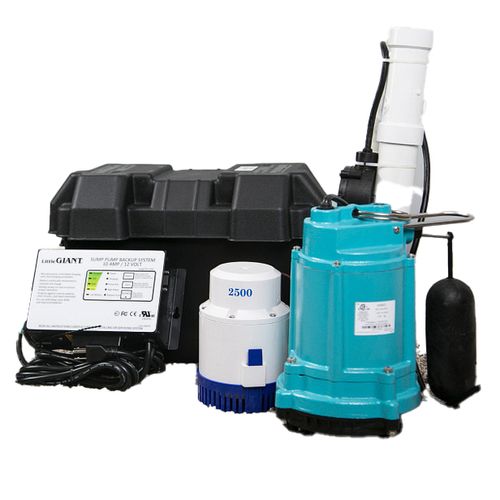

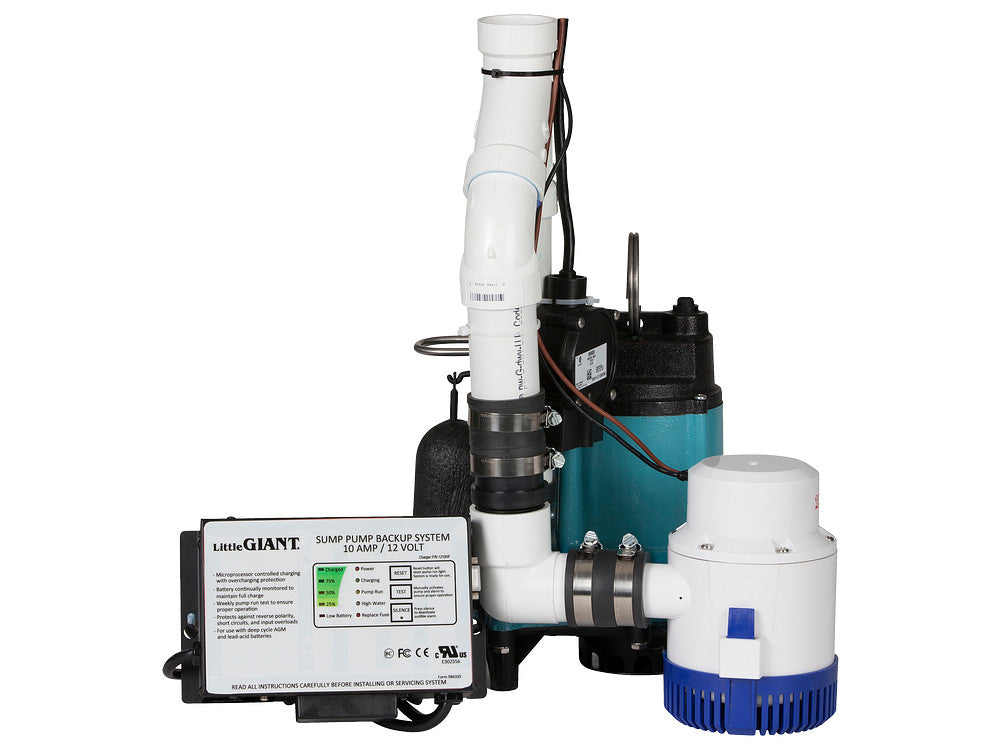

The LITTLE GIANT 506410 SPBS-12HF-10 Sump Pump Battery Backup System is an all-in-one, pre-assembled primary sump pump and battery backup package system. It allows a user to install a Little Giant 10EC 1/2 HP sump pump with the backup system, which includes the 12 amp battery charger, 3360 GPH 12 volt backup pump, diaphragm switch, and pipe fittings.

• Automatic
• Plumbing Application
• 1/2 Horse Power
• 67 Max Flow (GPM)

Product Highlights

This system provides added peace of mind, protecting your home from malfunctions, outages, or excess water. Easy and quick installation.

Product Information

Standard Information

• Brand: LITTLE GIANT
• Manufacturer Part Number: 506410

Technical Specifications

• Type: Automatic
• Voltage: 12 VDC, 115V
• Amperage: 12
• Application: Plumbing
• Cord Length: 10'
• Horse Power: 1/2
• Max Temp (F): 140°F
• Max Flow (GPM): 67
• Shutoff Head (ft.): 36'
• HP 60Hz: 1/2 hp
• Frequency: 60 Hz
• Phase: Single-Phase
• Volts: 115 VAC
• Lead Length: 10 ft
• Continuous Duty: No
• Maximum Flow Rate - 60Hz: 67 gpm
• Shut-Off: 36 ft
• Shut Off Height - 60Hz: 36 ft
• Max Solid Handling Size: 0.5 "
• Max Fluid Temperature: 140 °F
• Pump Base Material: Plastic
• Pump Body Material: Plastic
• Impeller Type: Semi-open
• Impeller Material: Nylon
• Motor Shaft End - Material: SAE 1040/45 Carbon Steel
• Intake Screen Material: Nylon
• Seal Material: Carbon/Ceramic, Nitrile
• Seal Type: Mechanical Seal
• Discharge Type: Threaded - FNPT
• Discharge: 1.5 "
• Pump Length: 10.66 "
• Electrical Agency Approvals: CSA
• Discharge Diameter: 1.25 in.
• Length: 10.4 in.
• Outlet Diameter: 1.5 in.
• Handles Solids: No
• Housing Material: Cast Iron
• Switch Type: Diaphragm
• Starting Amps: 32 Amps
• Backup GPH @ 0 feet: 2520 GPH
• Backup GPH @ 10 feet: 1200 GPH
• Backup GPH @ 5 feet: 1740 GPH
• Quick Clean Out: Yes
