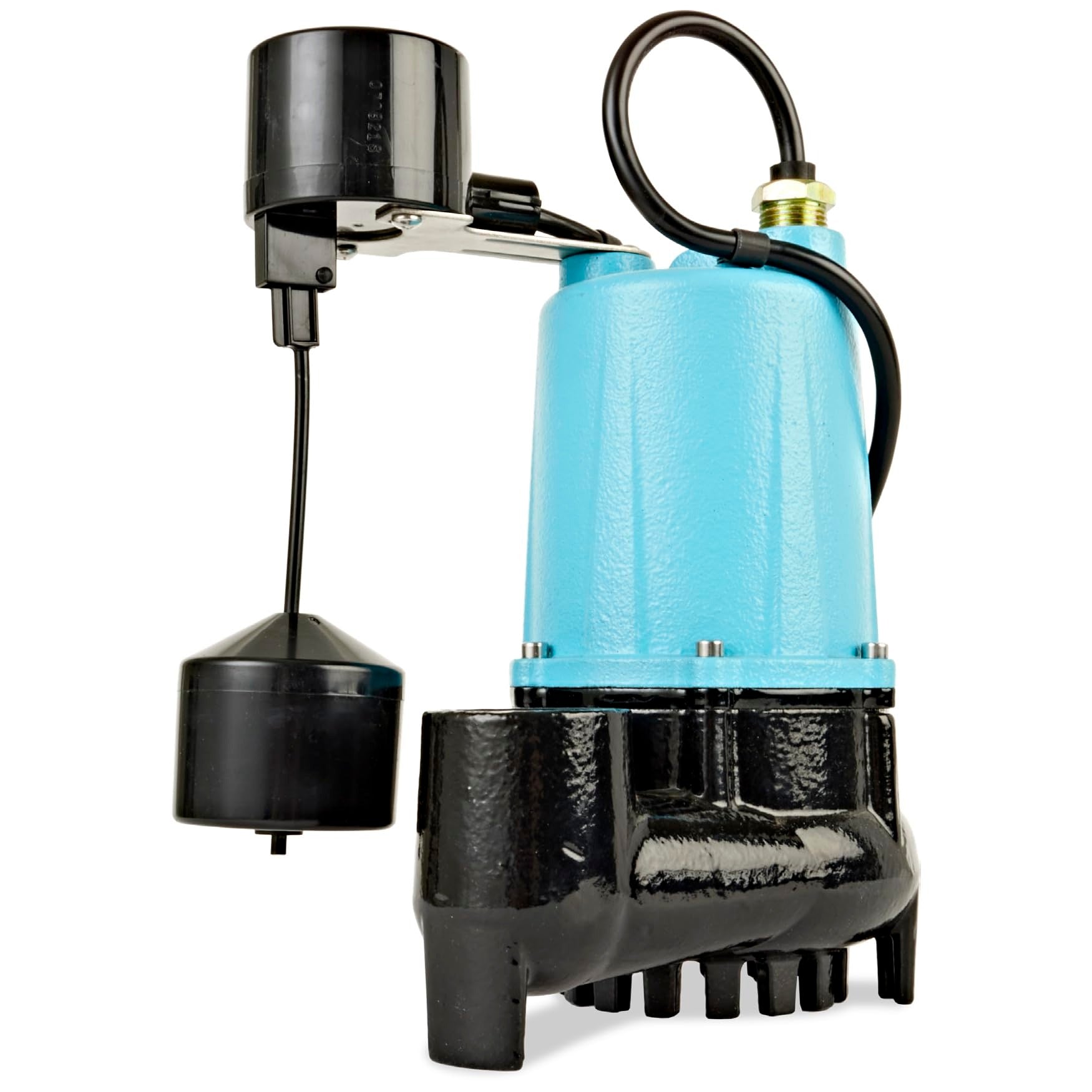

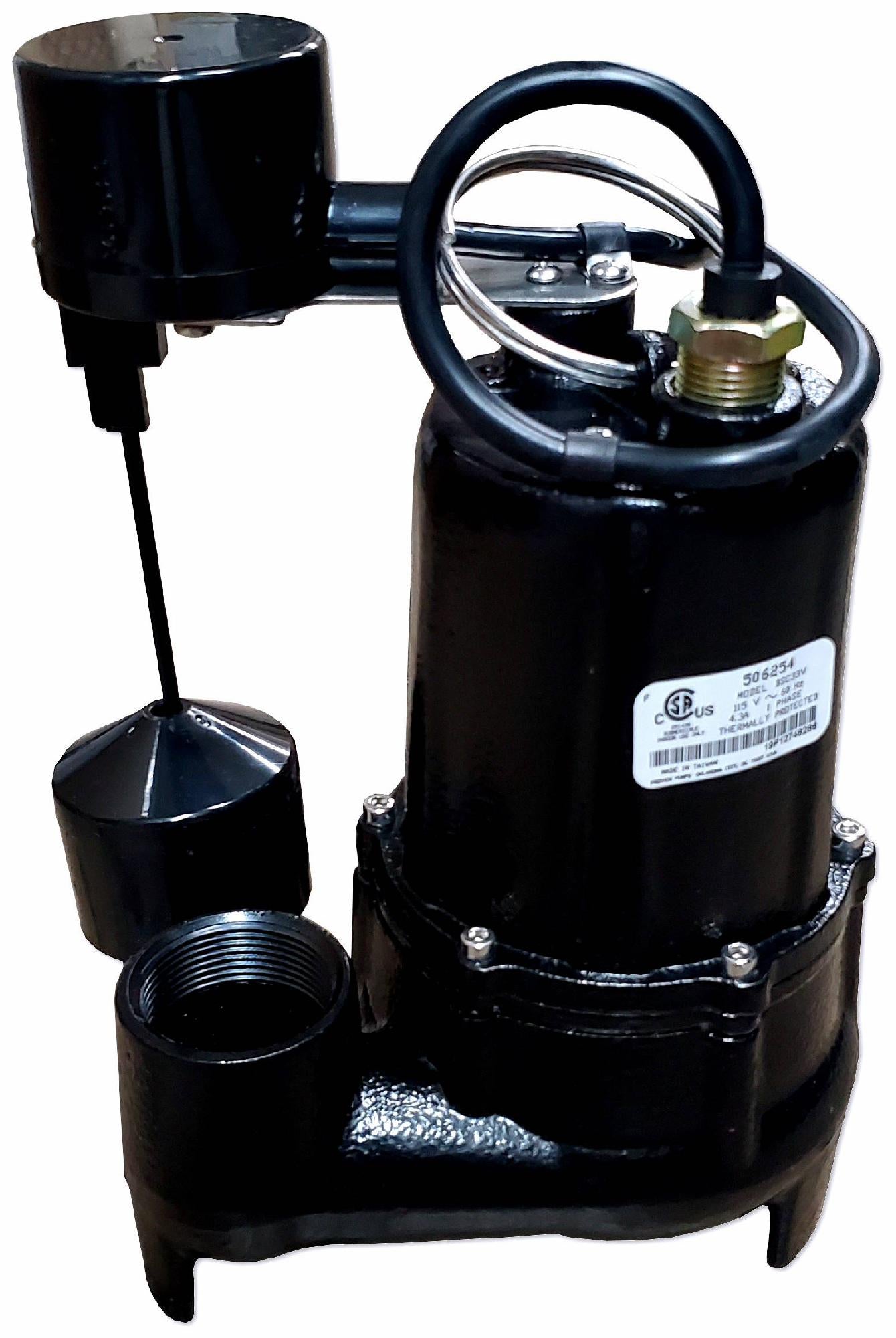

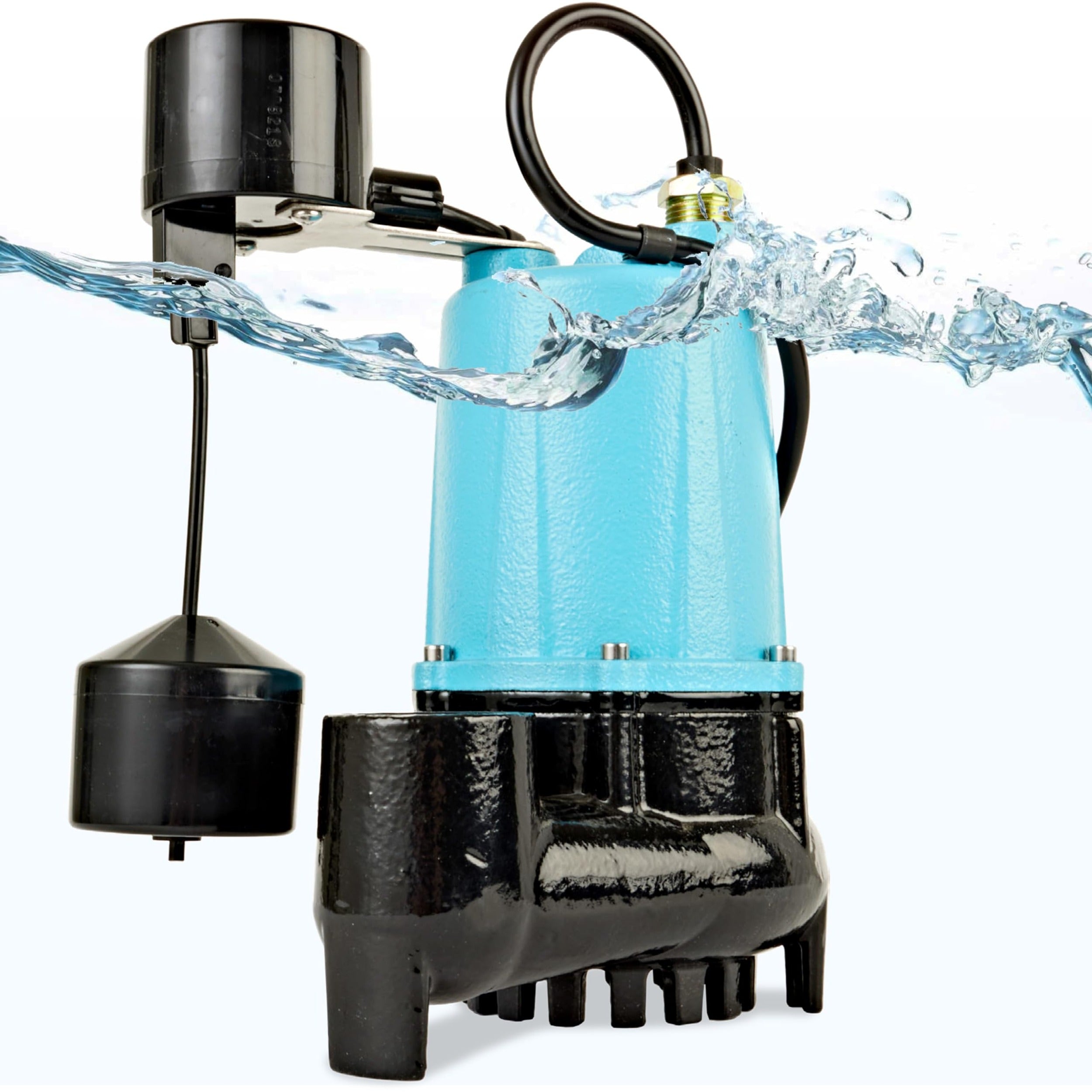

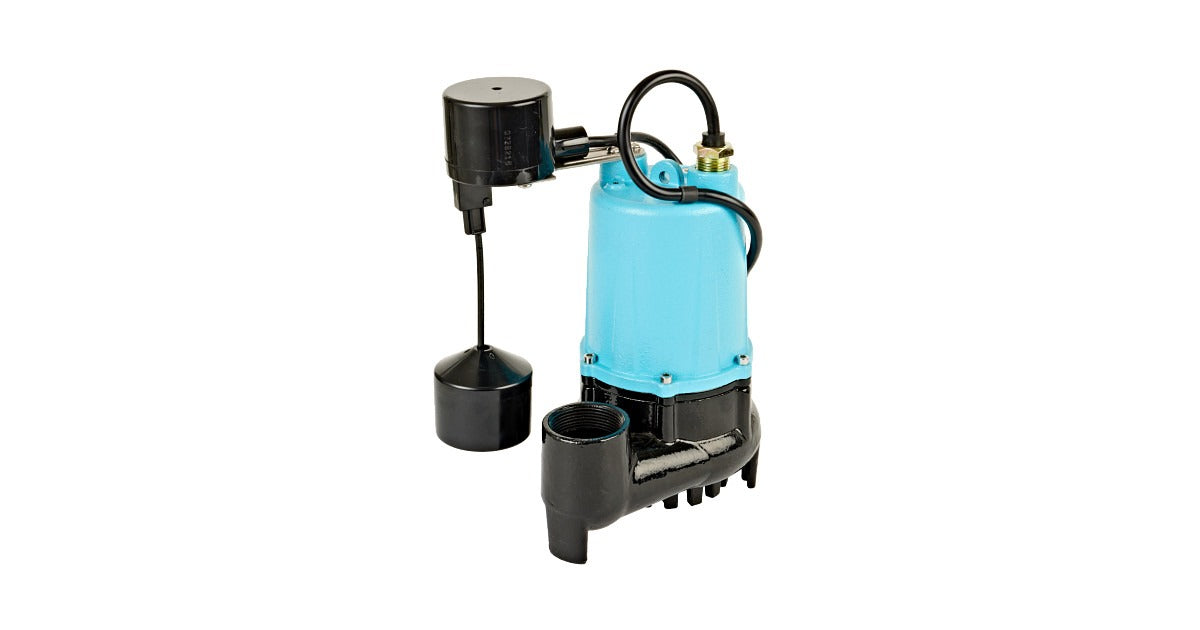

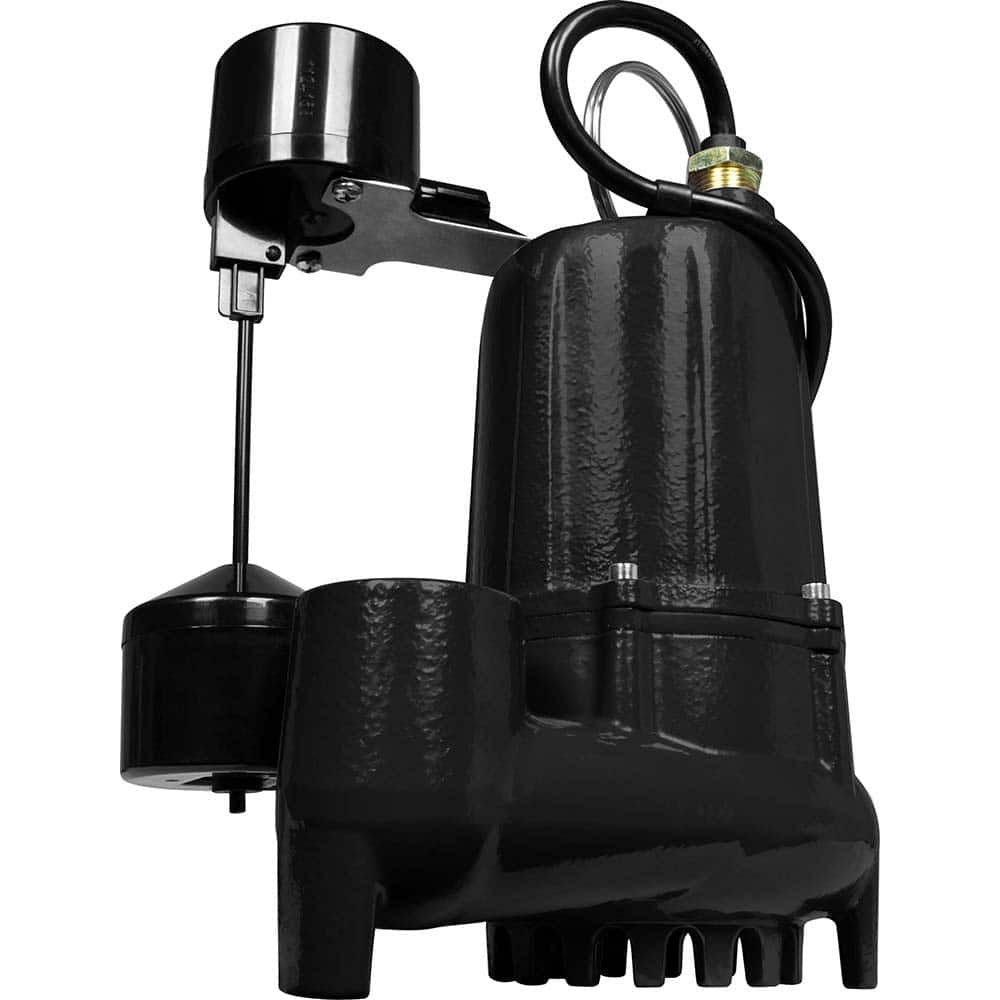

Little Giant 506254 BSC33V Submersible Cast Iron Sump Pump 115 Volt 1/3 HP (1.5 inches Discharge) BSC33V

Product Description

The Little Giant 506254 (BSC33V) is a 115 V, 1/3 hp automatic submersible cast iron sump and light effluent pump rated at 3,000 GPH (50 GPM at 5 ft). It includes a 1.5-inch FNPT discharge, 10 ft power cord, and a piggy-back vertical float switch that turns on at 7.0 in and off at 2.25 in. The pump handles up to 3/8-inch semi-solids, has a 25 ft shut-off, and a thermally protected PSC oil-filled motor.

• 1/3 hp, 115 VAC motor; 400 W, 4.3 A, 60 Hz; thermally protected, continuous duty.
• Handles up to 3/8-inch semi-solids with screened intake; vortex cast iron impeller; 1.5 in FNPT discharge.
• Piggy-back vertical float switch (on at 7.0 in, off at 2.25 in), 10 ft cord, epoxy-coated cast iron construction.

Product Highlights

Automatic submersible cast iron sump/effluent pump, 3,000 GPH (50 GPM), 1.5 in FNPT discharge, 3/8 in solids handling.

Product Information

Standard Information

• Brand: LITTLE GIANT
• Manufacturer Part Number: 506254

Technical Specifications

• Brand: Little Giant
• Manufacturer: Franklin Electric Co., Inc.
• MPN: 506254
• Model: BSC33V
• Product Type: Submersible sump / light effluent pump
• Input Voltage: 115 VAC
• Frequency: 60 Hz
• Phase: Single-phase
• Horsepower: 1/3 hp
• Power Consumption: 400 W
• Rated Current: 4.3 A
• Flow Rate: 3000 GPH (50 GPM at 5 ft)
• Max Head (Shut-Off): 25 ft
• Discharge: 1.5 in FNPT
• Discharge Type: Threaded FNPT
• Solids Handling: Up to 3/8 in (0.38 in)
• Cord Length: 10 ft
• Float Switch Type: Piggy-back vertical float switch (on at 7.0 in, off at 2.25 in)
• Max Liquid Temperature: 95 F
• Construction Material: Epoxy-coated cast iron housing, impeller and volute
• Impeller Type: Vortex cast iron impeller
• Seal Type / Material: Mechanical seal (nitrile / carbon / ceramic)
• Shaft Material: Stainless steel
• Motor Type: Oil-filled PSC motor
• Thermal Overload Protection: Yes
• Continuous Duty: Yes
• Certifications: CSA (listed in USA and Canada)
• Product Weight: 18.95 lb
• Product Length: 12 in
