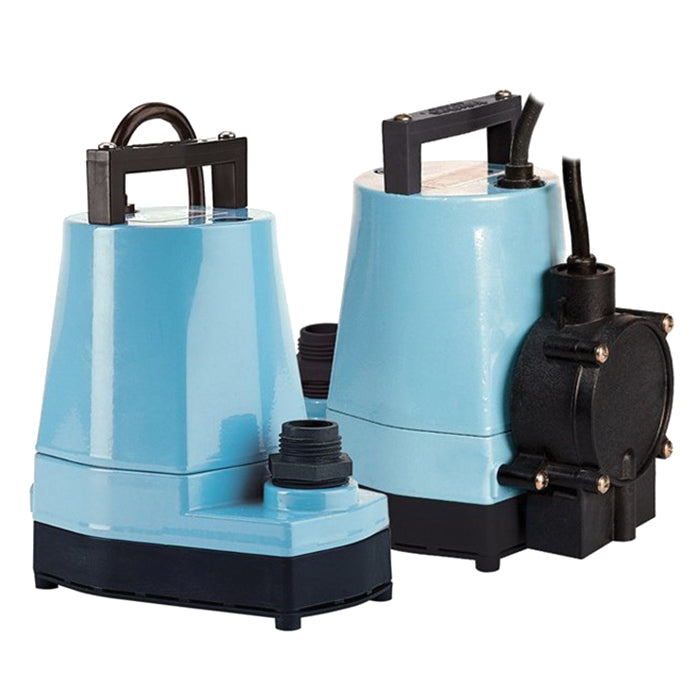

Little Giant 505300 Submersible Utility Pump 115 VAC 1/6 hp

Product Description

The Little Giant 505300 is an automatic submersible utility pump designed for various water transfer needs. With a power of 1/6 horsepower and a flow rate of 1200 gallons per minute, it is suitable for commercial, industrial, and home applications. The pump operates on 115 VAC and is built for durability and continuous use.

• 1/6 hp shaded pole motor with overload protection
• Pumps can operate down to one eighth inch
• Multiple switch options for automatic operation

Product Highlights

This pump features a nylon volute and stainless steel motor shaft, offering reliable operation with easy maintenance. The removable inlet screen simplifies cleaning, ensuring effective performance.

Product Information

Standard Information

• Brand: Little Giant
• Manufacturer: Franklin Electric

Technical Specifications

• Amperage Rating: 5 A
• Bearing Type: Sleeve
• Connection Size: 1 inch FNPT Discharge
• Cord Length: 10 feet
• Dimensions: 6.1 inches W x 7.78 inches H x 4.13 inches D
• Flow Rate: 1200 gpm
• HP Rating: 1/6 hp
• Maximum Feet of Head: 26.3 ft
• Pressure Rating: 11.4 psi
• Voltage Rating: 115 VAC
• Wattage: 380 W
• Material: Cast Aluminum
• Temperature Rating: 120 degrees F
• Standards/Certifications: cCSAus certified
• Applications: For commercial, industrial and home uses where water must be transferred or recirculated
