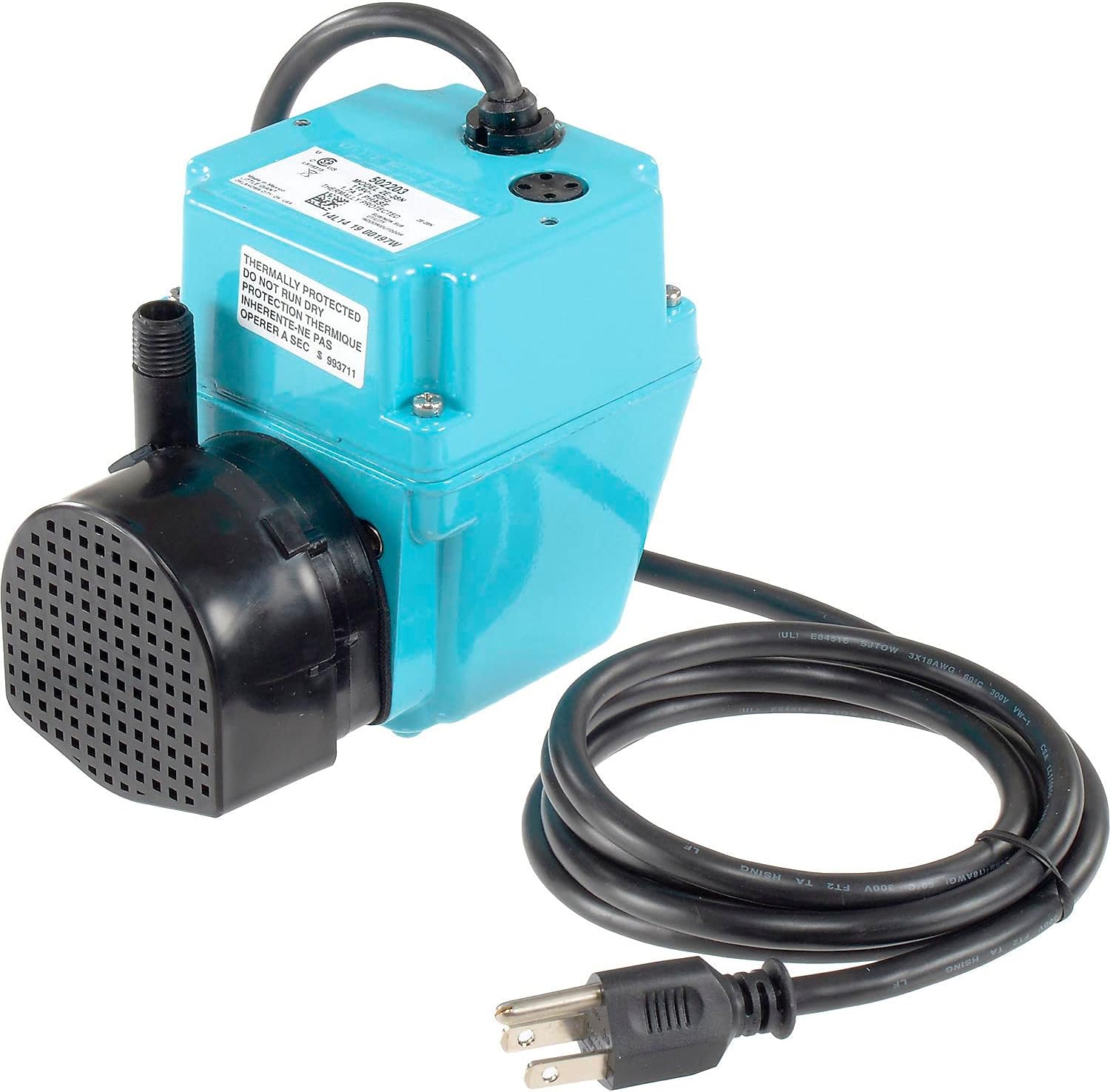

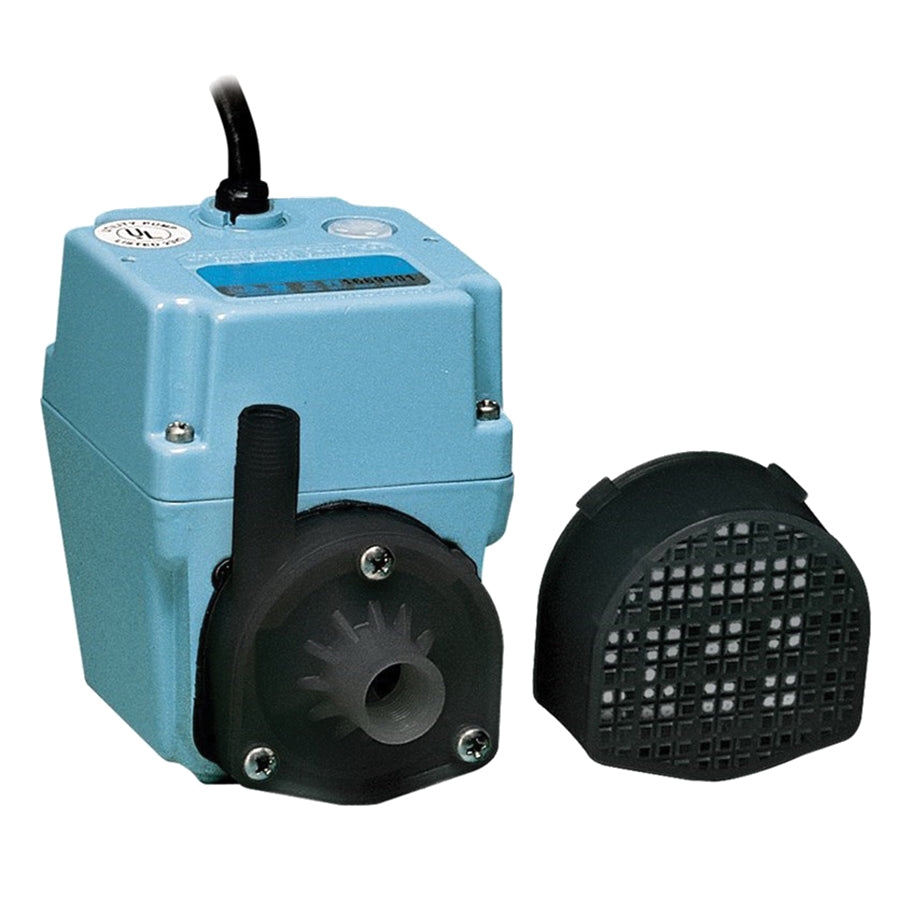

Little Giant 502203 Small Submersible Pump 115V 60Hz 6 ft Cord 11.8 ft Head

Product Description

The Little Giant 502203 Small Submersible Pump 2E-38N Series is designed for commercial, industrial, and home applications. This pump can be used fully submerged or in-line, fed with pipe or hose. Featuring a powerful 1/40 hp oil-filled motor, it is ideal for transferring or recirculating water in statuary fountains, water displays, air conditioners, machine tool coolants, and other similar applications.

• 1/40 hp oil-filled motor
• 300 gallons per hour maximum flow
• 6-foot power cord

Product Highlights

This pump features an epoxy-coated cast aluminum housing and cover for durability. The 3/8 inch FNPT intake and 1/4 inch MNPT discharge make it versatile for different applications. It includes thermal overload protection and is UL-listed for safety.

Product Information

Standard Information

• Brand: Little Giant
• MPN: 502203

Technical Specifications

• Amperage Rating: 1.7 A
• Connection Size: 1/4 inch MNPT Discharge
• Cord Length: 6 feet
• Dimensions: 5.6 inches W x 4.6 inches H x 3.5 inches D
• Finish: Epoxy Coated
• Flow Rate: 300 gallons per hour
• Frequency Rating: 60 Hz
• Horsepower: 1/40 hp
• Impeller Material: Nylon
• Item Name: Submersible Pump
• Material: Cast Aluminum
• Maximum Feet of Head: 11.8 feet
• Model: 2E-38N
• Pressure Rating: 5.1 psi
• Temperature Rating: 120 degrees Fahrenheit
• Type: Oil-Filled, Direct Drive
• Voltage Rating: 115 VAC
• Wattage: 100 W
• Standards/Certifications: UL listed
