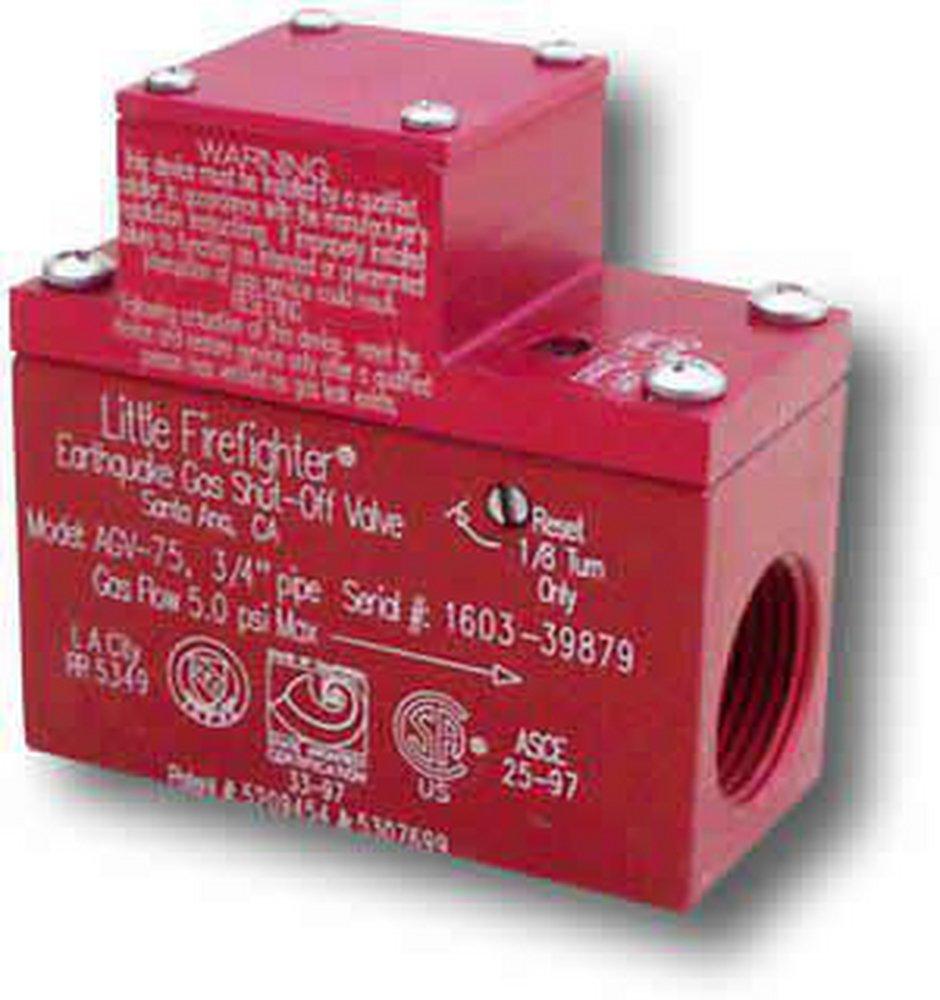

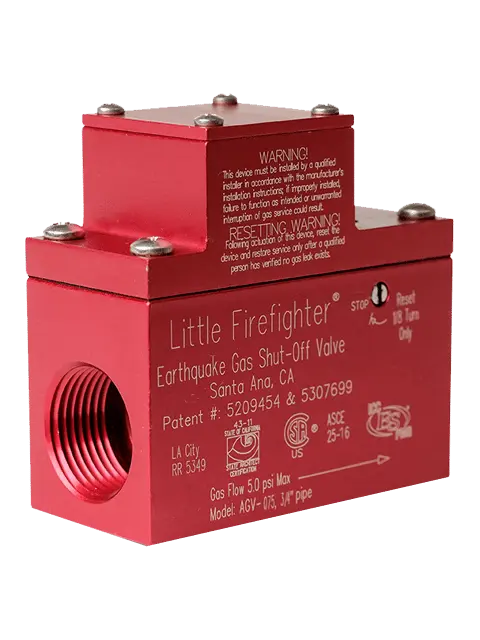

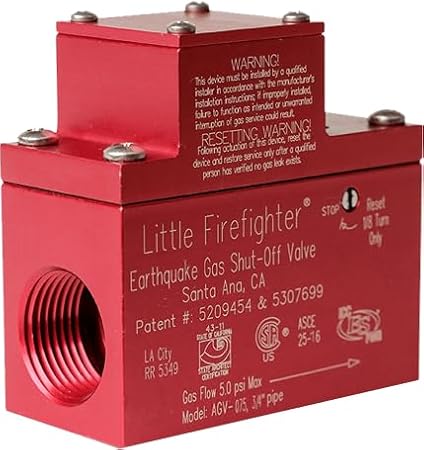

Little Firefighter NAGV-075 Gas Safety Products Earthquake Shut-off Valve 3/4 inches Horizontal

Product Description

The LITTLE FIREFIGHTER NAGV-075 is a seismic gas shut-off valve that offers an added layer of protection for your home and family. This easy-to-install device helps prevent gas leaks and fires by automatically shutting off the gas supply in the event of an earthquake or other seismic activity.

• Seismic Automatic Gas Shut Off Valve
• Fits house line pipe size of 3/4"
• Easy to reset valve after 5.4 earthquake

Product Highlights

This valve works by detecting significant shaking motion caused by seismic activity and immediately shutting off the gas flow to the structure.

Product Information

Standard Information

• Brand: LITTLE FIREFIGHTER
• Manufacturer Part Number: NAGV-075

Technical Specifications

• Material: Steel
• Exterior Finish: Steel
• Inlet Connection Size: 0.75 Inches
• Inlet Connection Type: Threaded
• Outlet Connection Type: Threaded
• Maximum Operating Pressure: 5 Pound per Square Inch
• Outlet Connection Size: 0.75 Inches
• Specification Met: ASTM
• Thread Type: NPT
• Connector Type: Threaded
• Thread Size: 3/4 inch
• Valve Type: Seismic Automatic Gas Shut off Valve
• ANSI: ANSI Z21.21
• End Connection 1: NPT
• End Connection 2: NPT
• End Connections: NPT
• Recommended Valve Application: Gas
• NSF Certified: No
• UL Listed: No
• UPC: 831888007504
• Valve Body Style: 1 piece
• Valve Operator: Lever Handle
• Valve Seat Material: Aluminum
• Valve Size: 3/4 in
