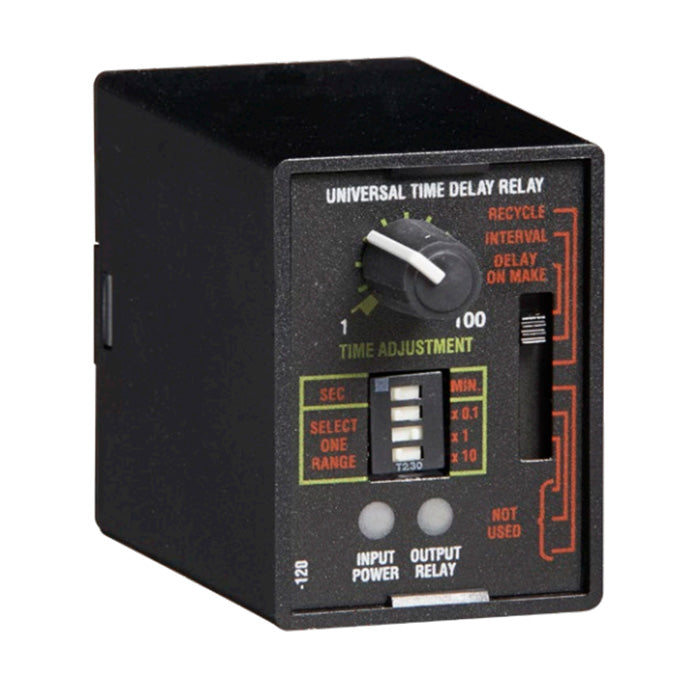

LITTELFUSE TRU3 UNIVERSAL TIME DELAY RELAY 19 TO 264 VAC

Product Description

The Littelfuse TRU3 Universal Time Delay Relay is designed for versatile functionality across a wide range of industrial applications. Key attributes include adjustable timing, universal voltage compatibility, and multiple modes of operation suited for various control systems.

• Universal voltage operation from 19 to 264 VAC and 19 to 30 VDC.
• Supports six timing functions with knob adjustments for precise control.
• Robust DPDT contacts handle up to 10 amps of current and horsepower ratings of 1/3 hp.

Product Highlights

This relay accommodates various settings such as delay-on-make, interval, and recycling. It can be directly replaced with up to 1000 competitive models, enhancing adaptability. The design incorporates a LED display, providing clear indication of input voltage and relay status.

Product Information

Standard Information

• Weight: 6 oz
• Operating Temperature: From -20 to 65 degrees C

Technical Specifications

• Input Voltage: From 19 to 264 VAC and from 19 to 30 VDC
• Contact Form: DPDT
• Mounting: Plug-In/Socket
• Dimensions: 3.44 inches H x 2.39 inches W x 1.78 inches D
• Approvals: CE, CSA Certified, UR Listed
• Health Warning: Contains nickel, known to the State of California to cause cancer.
• LED Indicators: 2 LEDs for voltage and status indication.
