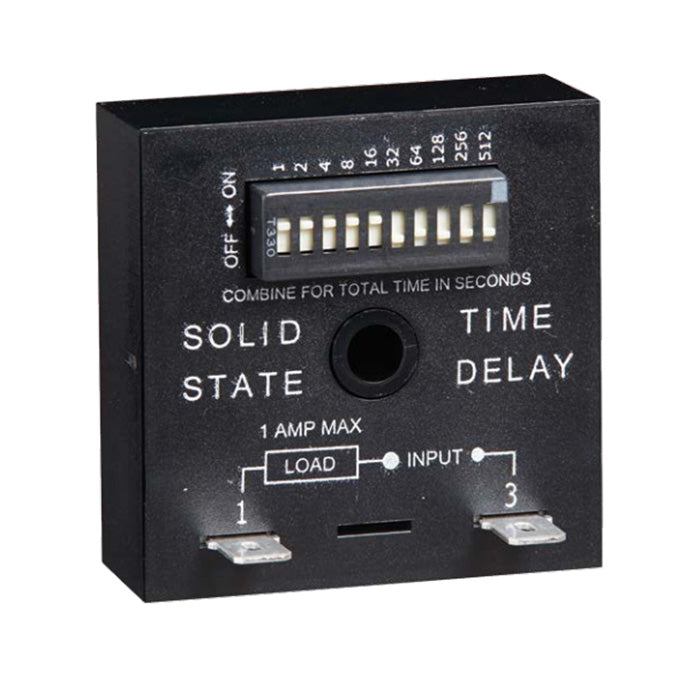

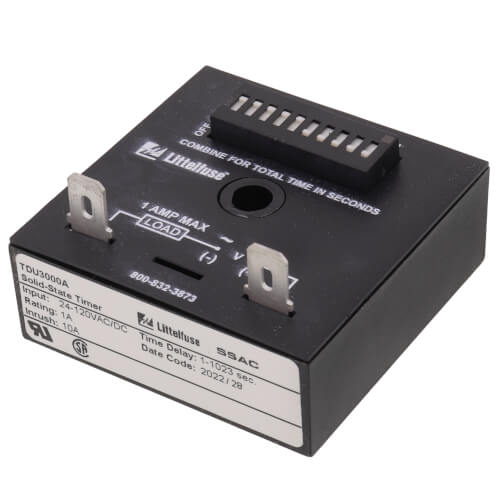

LITTELFUSE TDU3000A SOLID STATE TIMER 1 TO 1023 SEC DELAY ON MAKE

Product Description

The Littelfuse TDU3000A Solid State Timer offers robust timing solutions for industrial applications, featuring a delay-on-make timer that can be set from one to 1023 seconds. Designed for reliability, this timer operates on a voltage range of 24 to 120 VAC/VDC and maintains a load rating of 1 A steady state with a 10 A inrush at 60 degrees Celsius.

• Integrated digital circuitry ensures precise timing.
• Supports universal voltage operations.
• Encapsulated design protects against environmental factors.

Technical Specifications

This solid-state timer is ideal for a wide range of applications due to its adjustable features and solid performance. Providing a surface mounting option that can withstand temperatures from -40 to 140 degrees Fahrenheit, it guarantees reliable operation under versatile conditions.

• Type: Digital Integrated Circuitry
• Voltage Range: 24 to 120 VAC/VDC
• Time Setting: 1 to 1023 seconds
• Contact Form: SPST
• Dimensions: 2 inches height x 2 inches width x 1.21 inches depth
• Standards/Approvals: CE Marked, CSA Certified, UR Listed
