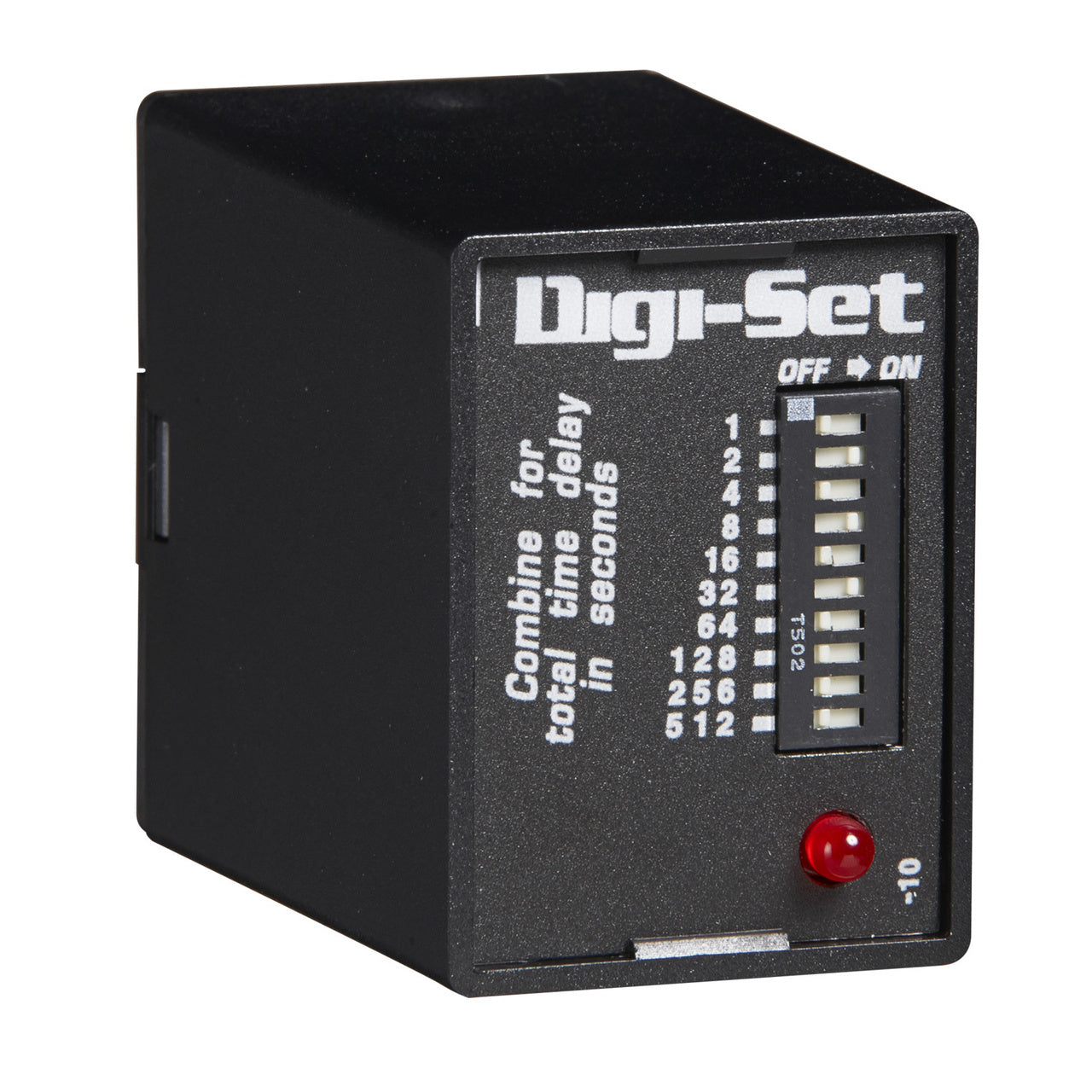

Littelfuse TDS120AL Time Delay Relay 120VAC 10A SPDT 60.7x45.2x81.3mm Socket

Product Description

The Littelfuse TDS120AL Time Delay Relay is an essential device for circuit protection in industrial settings, ensuring operations run smoothly without timing issues. It's designed to handle 120 Volts and can accommodate up to 10 Amps.

• SPDT (Single-Pole Double-Throw) contact configuration ensures versatility in wiring.
• Accurate performance with a fixed time delay within 1% of the target time delay.
• Operates effectively between -20 and 65 degrees Fahrenheit.

Product Highlights

This time delay relay offers a plug-in socket mounting, allowing for straightforward installation and replacement. It's encapsulated to protect against harsh conditions, making it ideal for demanding applications.

Product Information

Standard Information

• Mounting: Plug-In Socket
• Special Features: 10-Year Warranty

Technical Specifications

• Operating Temperature: -20 to 65 F
• UPC: 079458999891
• Brand: Littelfuse
• Dimensions: 60.7x45.2x81.3 mm
• Operation Mode: Automatic
• Contact Type: SPDT
• Current Rating: 10 Amps
