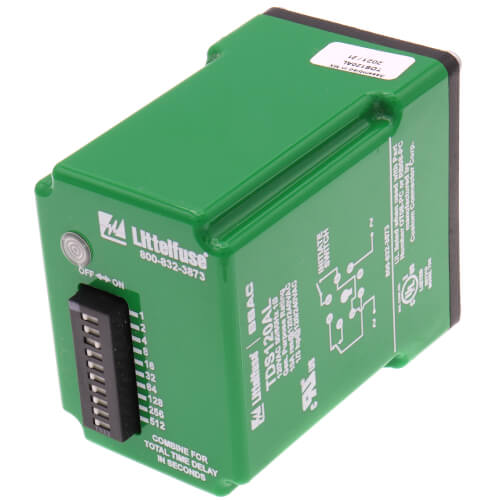

Littelfuse TDS120AL Digi-Set Single Shot 120V

Product Description

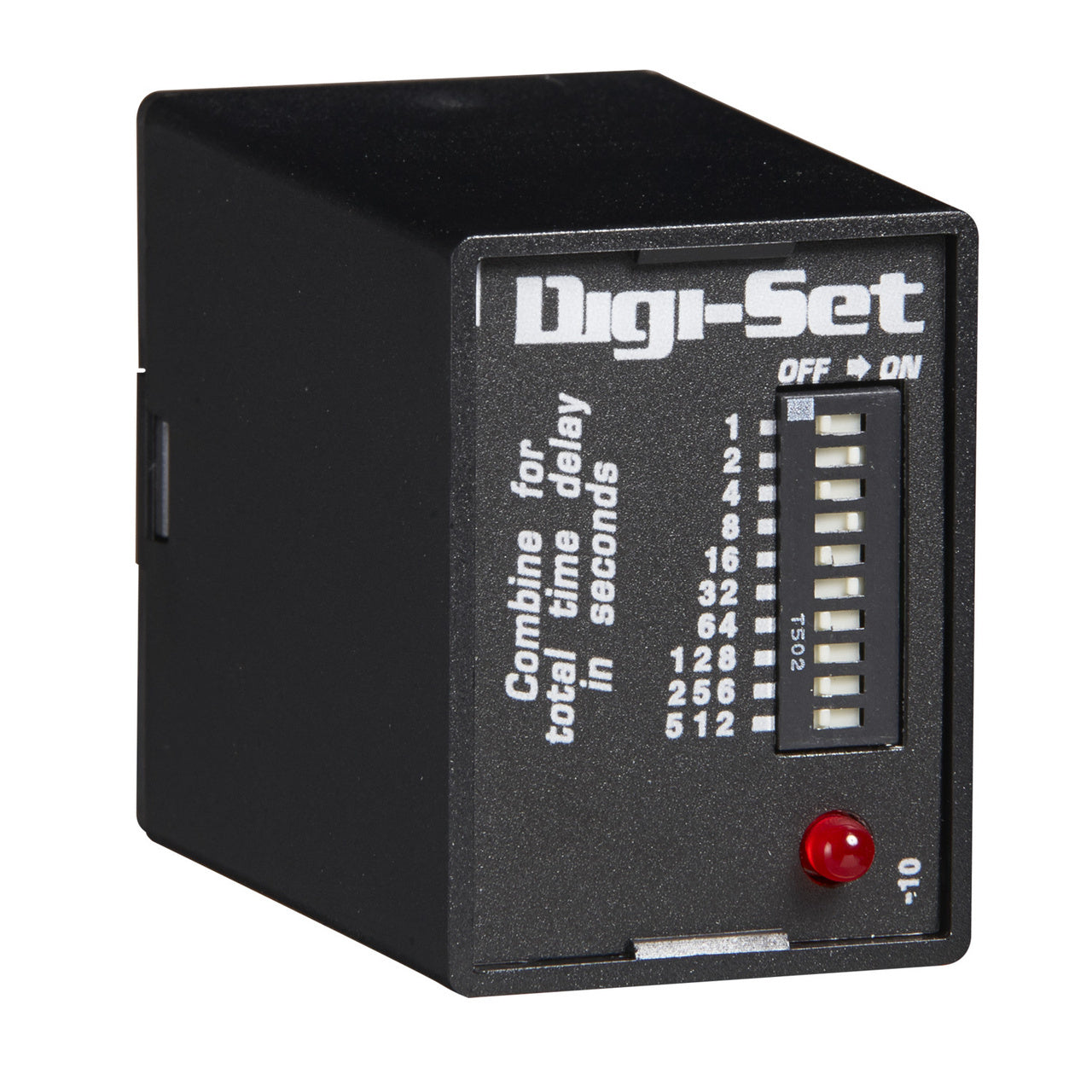

The Littelfuse TDS120AL Digi-Set is a time delay relay suitable for various demanding industrial settings. This digital-based timing relay operates in single-shot mode and works with output loads rated up to ten amps. It supports input voltages of one hundred twenty volts alternating current. The design is compact and ideal for integration into control panels.

• Operates over a time range from zero point one seconds to one hundred hours.
• Repeat accuracy within zero point one percent ensures consistent timing.

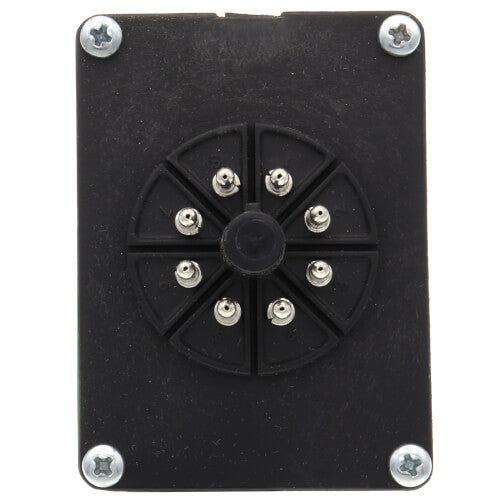

• Plug-in socket mounting simplifies installation and replacement.

Product Highlights

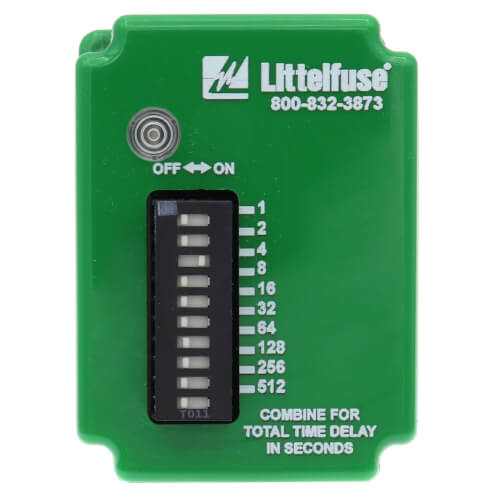

The Littelfuse TDS120AL is engineered for reliability in industrial applications. It features easy adjustment through DIP switches and a visual LED indicator that lights up during operations. Generating minimal electromagnetic interference, it's suitable for sensitive environments.

Product Information

Standard Information

• Catalog Number: TDS120AL
• Brand: Littelfuse

Technical Specifications

• Operation Mode: Single Shot
• Voltage Rating: 120 VAC
• Amperage Rating: 10 A
• Coil Voltage: 240 VAC
• Contact Form: SPDT
• Mounting Type: Plug-In Socket
• Temperature Rating: -4 to 149 Degrees Fahrenheit
• Time Setting: 1 to 1023 Seconds
• Dimensions: 3.2 inches H x 2.39 inches W x 1.78 inches D
