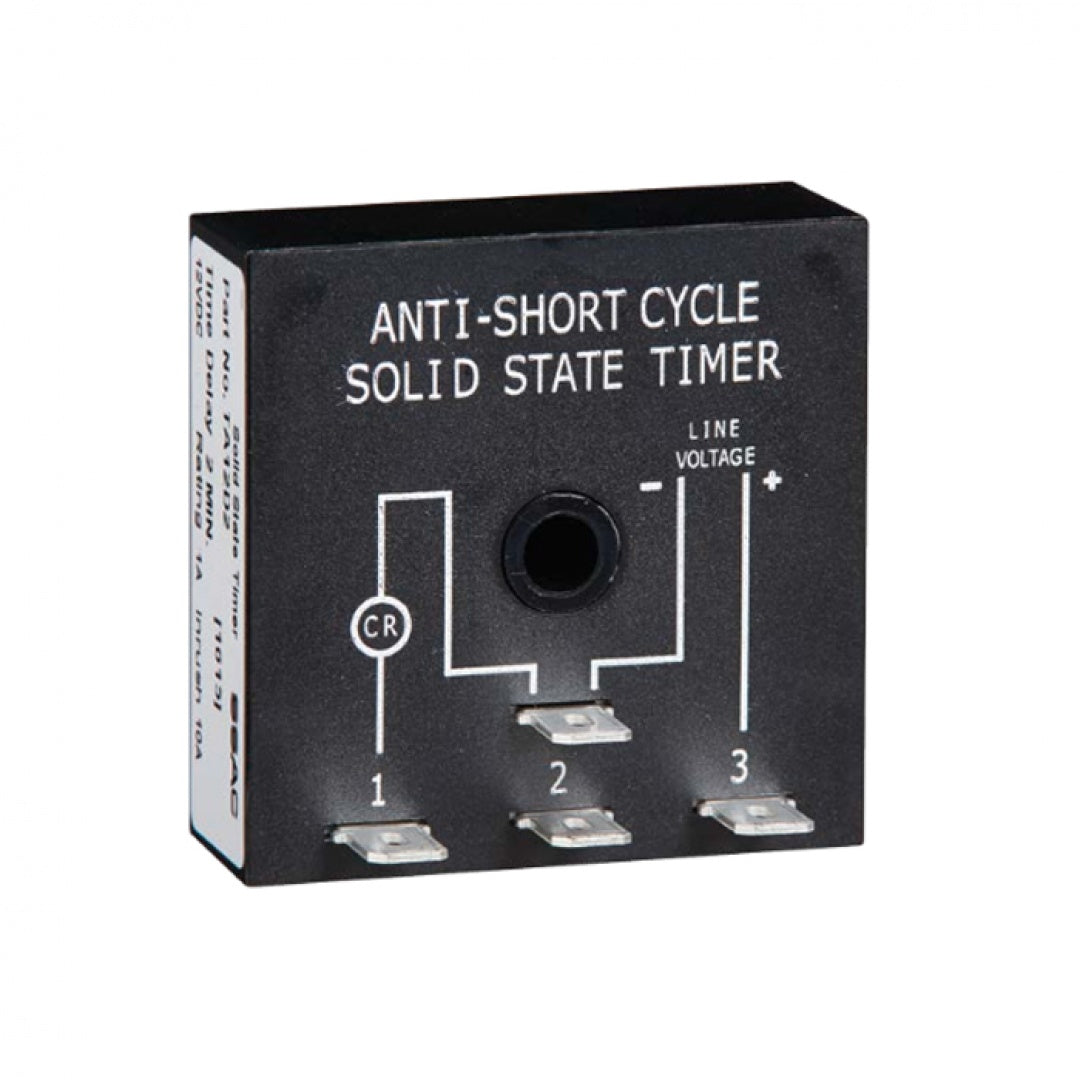

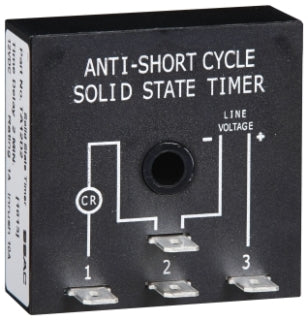

LITTELFUSE TA24A5 Lockout Timer Relay 24V

Product Description

The LITTELFUSE TA24A5 Lockout Timer Relay is engineered to prevent rapid recycling of compressors, enhancing the reliability and safety of HVAC systems. Its robust design is ideal for industrial applications requiring precise timing control.

• Prevents compressor rapid cycling, reducing wear and risk of failure.
• Features brownout protection, ensuring operational integrity under low voltage conditions.
• Encapsulated design for protection against environmental factors such as shock, vibration, and humidity.

Product Highlights

This lockout timer relay supports SPST/NO contact form and operates at 24 volts AC, with a fixed time setting of five minutes. It is surface mounted and suited for temperatures ranging from -40 to 70 degrees Fahrenheit.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: TA24A5

Technical Specifications

• Series: TA Series
• Operation Mode: Lockout
• Voltage Rating: 24 VAC
• Time Setting: 5 min
• Mounting Type: Surface
• Dimensions: 2 in H x 2 in W x 1.21 in D
• Temperature Range: -40 to 70 deg F
• Electrical Connections: Male Quick-Connect Terminal
