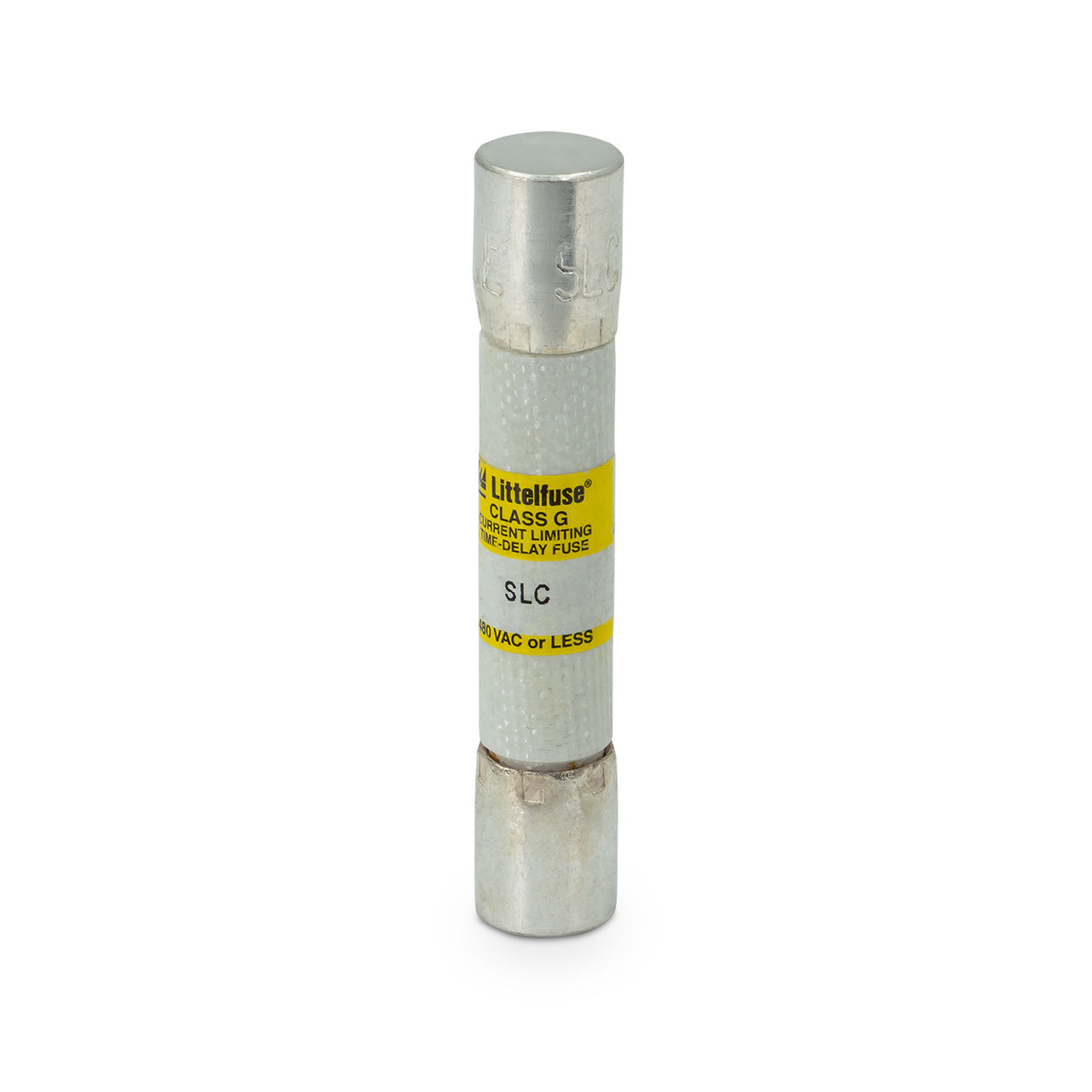

LITTELFUSE SLC050 UL CLASS G MEDIUM TIME LAG FUSE 50 A 480 VAC

Product Description

The LITTELFUSE SLC050 is a UL Class G medium time lag fuse designed for effective current limiting and branch circuit protection. This fuse has a rating of fifty amperes and operates at a voltage of four hundred eighty VAC. It features a ferrule terminal and is mountable in a holder. The cartridge body measures thirteen thirty-seconds of an inch in diameter and two and a quarter inches in length.

• Current limiting design for reduced equipment damage
• Medium time delay for sizing closer to equipment needs
• Interrupt rating of one hundred kA

Product Highlights

This fuse helps minimize downtime by reducing the impact of power surges and equipment demands.

Product Information

Standard Information

• Manufacturer: LITTELFUSE
• UPC: 079458420777

Technical Specifications

• Amperage Rating: 50 A
• Body Size: 13/32 in Dia x 2-1/4 in L
• Body Type: Cartridge
• Class: G
• Indicating/Non-Indicating: Non-Indicating
• Interrupt Rating: 100 kA
• Mounting Type: Holder
• Series: SLC
• Terminal Type: Ferrule
• Type: Current Limiting Medium Acting
• Voltage Rating: 480 VAC
