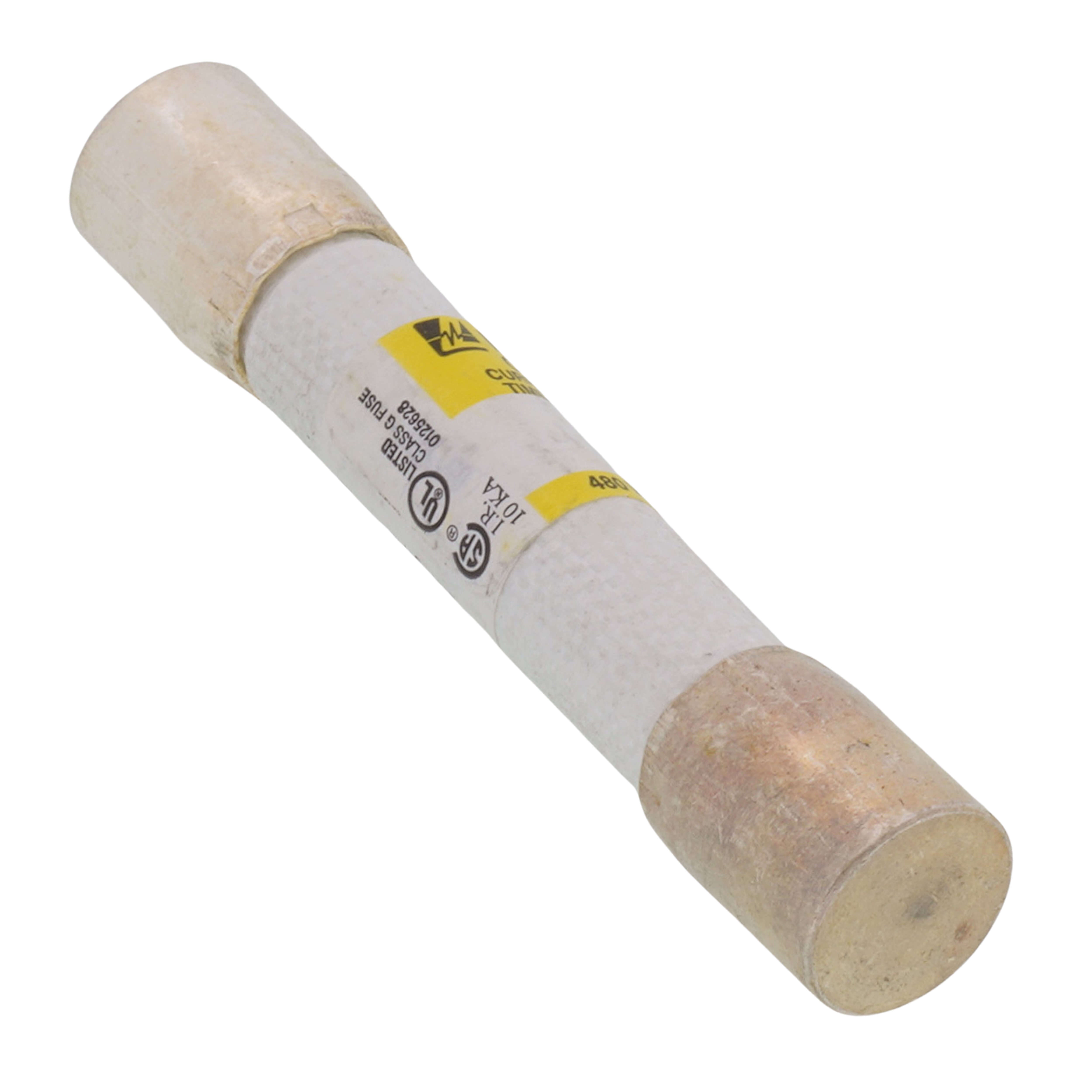

Littelfuse SLC045 Class G Fuse Time-Delay 45A 480V

Product Description

The Littelfuse SLC045 Class G fuse with MPN SLC045 ensures reliable branch circuit protection and prevents over-fusing. This 45 Amp, 480 Volt fuse has a time-delay feature that accommodates transient currents, reducing unnecessary tripping and providing extra reliability for your electrical systems.

• Branch circuit rated
• Current-limiting 100 kA interrupt rating
• Compact design

Product Highlights

This fuse features a cylindrical body, constructed from melamine, and is non-indicating. It is designed to fit into tight spaces and facilitate easy installation. It has a clear window for visual inspection, ensuring safe operation.

Product Information

Standard Information

• Catalog Number: SLC045
• Manufacturer: Littelfuse

Technical Specifications

• Amperage Rating: 45A
• Voltage Rating: 480VAC/170VDC
• Body Size: 13/32 inches Diameter x 2-1/4 inches Length
• Interrupt Rating: 100kA at 480VAC, 10kA at 170VDC
• Material: Melamine
• Series: SLC
• Country of Origin: Mexico
• Standards: UL 248-5, UL Listed, CSA Certified, CE, RoHS
