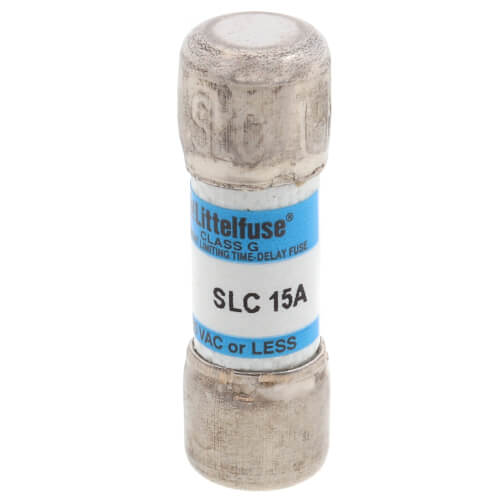

Littelfuse SLC015 15 Amp 600 VAC Time Delay Class G Fuse

Product Description

The Littelfuse SLC015 Class G fuse is designed for reliable performance and efficient protection against overcurrents. Essential for branch circuit protection, this 15 Amp, 600 VAC fuse features a medium time delay to handle transient surges without tripping unnecessarily.

• Current-limiting design to protect electrical components.
• Meets NEC requirements for branch-circuit protection.
• Features time-delay for better surge response.

Product Highlights

The Littelfuse SLC015 excels in preventing the insertion of incorrect amperage fuses thanks to its meticulous engineering that varies the fuse length. This innovation also guards against over-fusing, making it an ideal choice for safeguarding sophisticated electrical systems.

Product Information

Standard Information

• Type: Class G Time Delay Fuse
• Current Rating: 15 Amps
• Voltage Rating: 600 VAC

Technical Specifications

• Interrupt Rating: 100,000 Amps at 600 VAC
• Mounting Type: Holder
• Dimensions: 1-5/16 inches length x 13/32 inches diameter
• Body Material: Melamine
• Safety Certifications: UL Listed, CSA Certified
