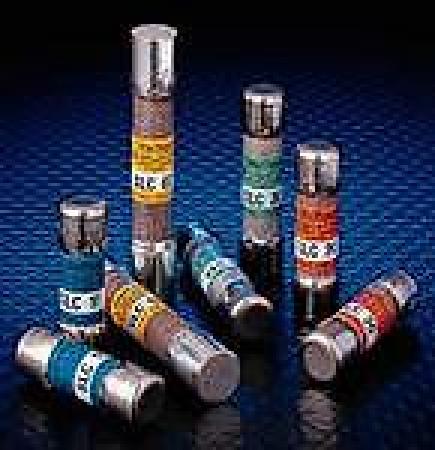

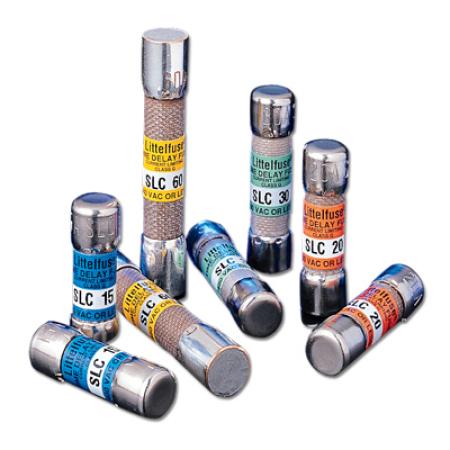

LITTELFUSE SLC008 UL CLASS G MEDIUM TIME LAG FUSE

Product Description

The LITTELFUSE SLC008 is a UL Class G medium time lag fuse designed for effective current limiting applications. It has an amperage rating of eight amps and is suitable for use in circuits that may experience temporary surges. This fuse is rated for six hundred volts alternating current and has an interrupting capacity of one hundred kA. The cartridge body measures thirteen thirty-seconds of an inch in diameter by one and five sixteenths inches in length.

• Medium time-delay characteristic allows for closer sizing to equipment requirements.
• Current limiting design reduces potential damage during short circuit events.
• Suitable for branch circuit protection applications.

Product Highlights

Ideal for protecting electrical installations from excessive currents while minimizing downtime due to temporary surges.

Product Information

Standard Information

• Manufacturer: LITTELFUSE
• Model Number: SLC008

Technical Specifications

• Amperage Rating: 8 A
• Body Size: 13/32 in Dia x 1-5/16 in L
• Body Type: Cartridge
• Class: G
• Indicating: Non-Indicating
• Interrupt Rating: 100 kA
• Mounting Type: Holder
• Series: SLC
• Terminal Type: Ferrule
• Type: Current Limiting Medium Acting
• Voltage Rating: 600 VAC
