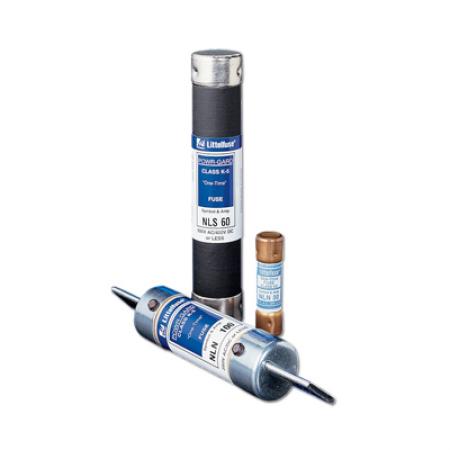

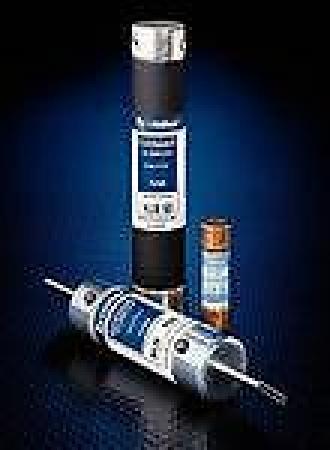

Littelfuse NLS080 UL CLASS K5 ONE-TIME FUSE 80 A 600 VAC/VDC

Product Description

The Littelfuse NLS080 is a UL Class K5 one-time fuse designed for various electrical applications. This fast-blow fuse has a current rating of 80 amperes and can handle voltages up to 600 VAC/VDC. Made for installations where protection against overloads is necessary, the NLS080 provides dependable performance.

• 80 A amperage rating
• 50 kA interrupt rating
• Fast blow design for immediate response

Product Highlights

This fuse is suitable for general purpose circuits with minimal motor load, offering a balance of reliability and economic efficiency in residential and commercial settings.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: NLS080

Technical Specifications

• Amperage Rating: 80 A
• Body Size: 1-5/16 inches Diameter x 7-7/8 inches Length
• Body Type: Cartridge
• Class: K5
• Indicating/Non-Indicating: Non-Indicating
• Interrupt Rating: 50 kA
• Mounting Type: Holder
• Series: NLS
• Terminal Type: Knife Blade
• Type: Fast Blow
• Voltage Rating: 600 VAC/VDC
