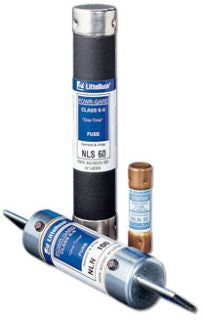

Littelfuse NLS005 Fast Acting Fuse 5A 600V Class K5

Product Description

The Littelfuse NLS005 is a fast acting fuse designed for efficient circuit protection at five amperes and six hundred volts. This Class K5 fuse offers reliable performance in various electrical applications. Ideal for general purpose feeder and branch circuits, it acts quickly to safeguard against excessive current flow.

• Low cost protection for circuits
• Interrupting capacity up to 50 kA
• Suitable for use with DIN mount holders

Product Highlights

This fuse is noteworthy for its economical design, allowing for low-cost protection where short circuit currents are less than 50 kA.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Type: Fast Acting, One Time

Technical Specifications

• Amperage Rating: 5 A
• Voltage Rating: 600 VAC/VDC
• Interrupting Rating: 50 kA (Symmetrical), 20 kA (DC)
• Body Size: 0.81 inches diameter
• Terminal Type: Ferrule
• Approval: UL 248-9, CSA, CE
• Characteristics: Fast Acting, One Time
• UPC: 07945837055
