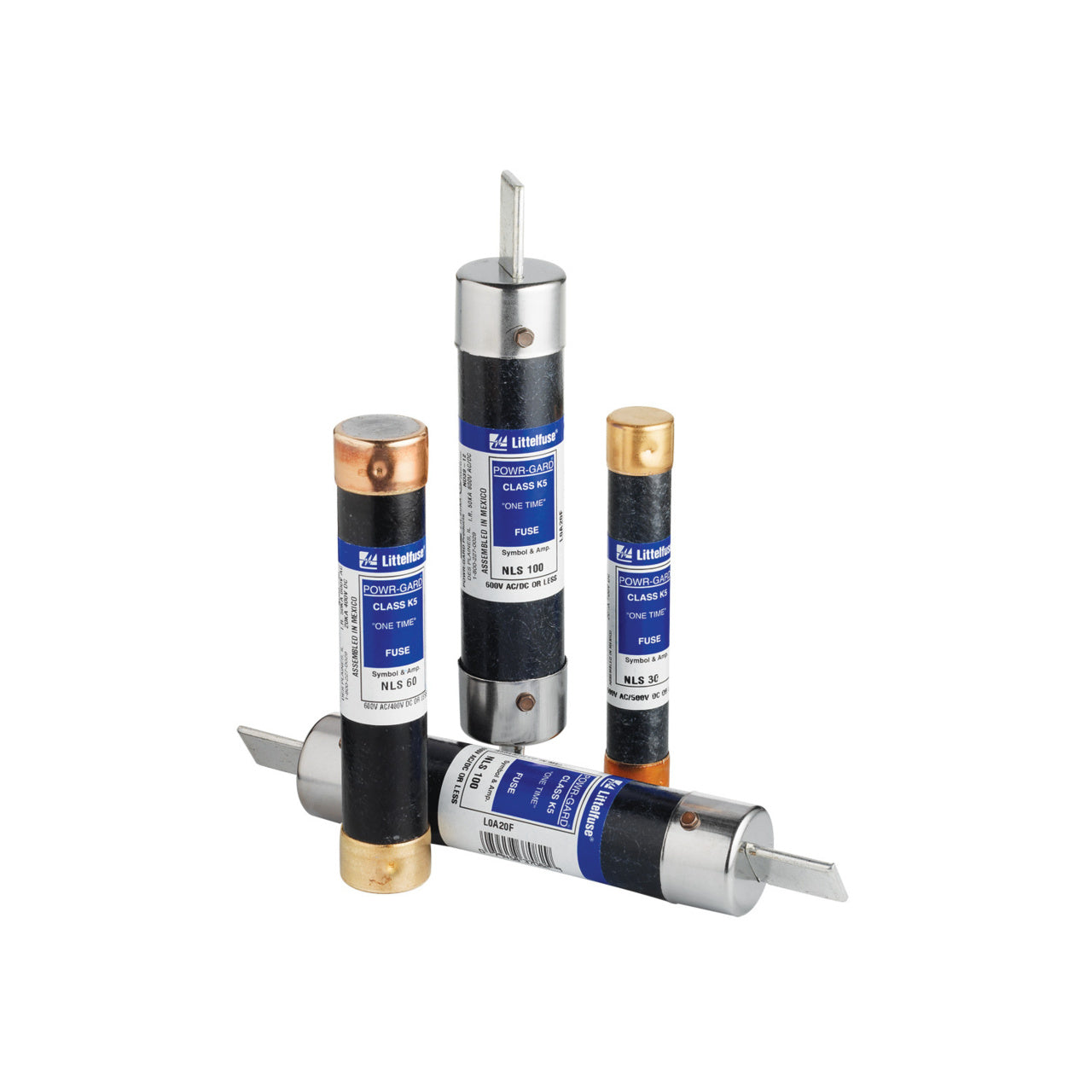

Littelfuse NLN090 UL Class K5 One-Time Fuse 90 A 250 VAC/VDC

Product Description

The Littelfuse NLN090 is a UL Class K5 one-time fuse with a current rating of ninety amperes and a voltage rating of two hundred fifty VAC or VDC. This fast-acting fuse is designed to protect electrical circuits in residential and commercial applications where lowest initial cost is a primary concern.

• Interrupt rating of fifty kA allows for safe operation in various environments.
• Compact body size: one and one-sixteenth inches in diameter by five and seven-eighths inches in length.
• Knife blade terminal type for easy installation in holder mounts.

Product Highlights

This fuse is ideal for circuits with little or no motor load, making it suitable for resistive heating loads and general applications.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Part Number: NLN090

Technical Specifications

• Amperage Rating: 90 A
• Body Size: 1-1/16 in Dia x 5-7/8 in L
• Body Type: Cartridge
• Class: K5
• Element: Single
• Frequency Rating: 50/60 Hz
• Indicating/Non-Indicating: Non-Indicating
• Interrupt Rating: 50 kA
• Mounting Type: Holder
• Series: NLN
• Terminal Type: Knife Blade
• Type: Fast Blow
• Voltage Rating: 250 VAC/VDC
