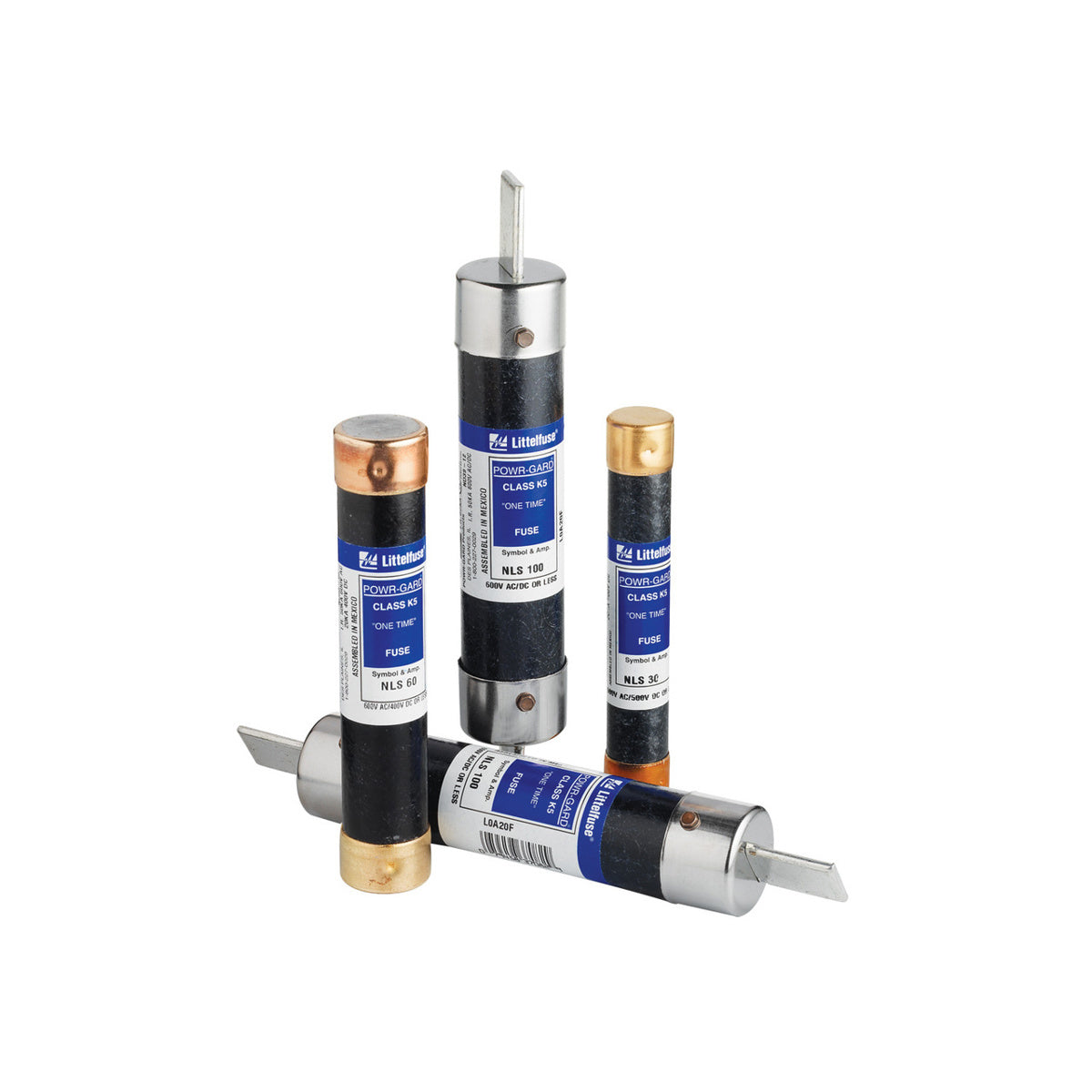

Littelfuse NLN080 UL CLASS K5 ONE-TIME FUSE 80A 250V

Product Description

The Littelfuse NLN080 is a Class K5 one-time fuse, rated for eighty amperes and two hundred fifty volts. This fuse is ideal for feeder and branch circuits, especially in residential and commercial applications. It provides low-cost protection when short circuit currents are less than fifty thousand amperes.

• Designed for general purpose applications.
• Replaces Class H fuses with a lower interrupting rating.
• Meets applicable standards including UL 248-9 and CSA.

Product Highlights

This fuse offers dependable protection for circuits in residential and small commercial setups, featuring an economical design for effective short circuit protection.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Catalog Number: NLN080

Technical Specifications

• Amperage Rating: 80 A
• Voltage Rating: 250 VAC/VDC
• Interrupting Rating: 50 kA
• Body Type: Cartridge
• Body Size: 1-1/16 in diameter x 5-7/8 in length
• Mounting Type: Holder
• Terminal Type: Knife Blade
• Frequency Rating: 50/60 Hz
