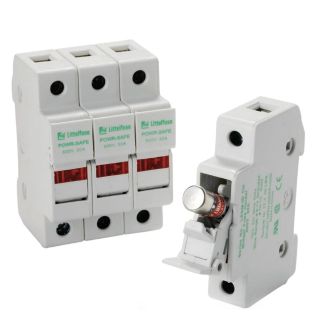

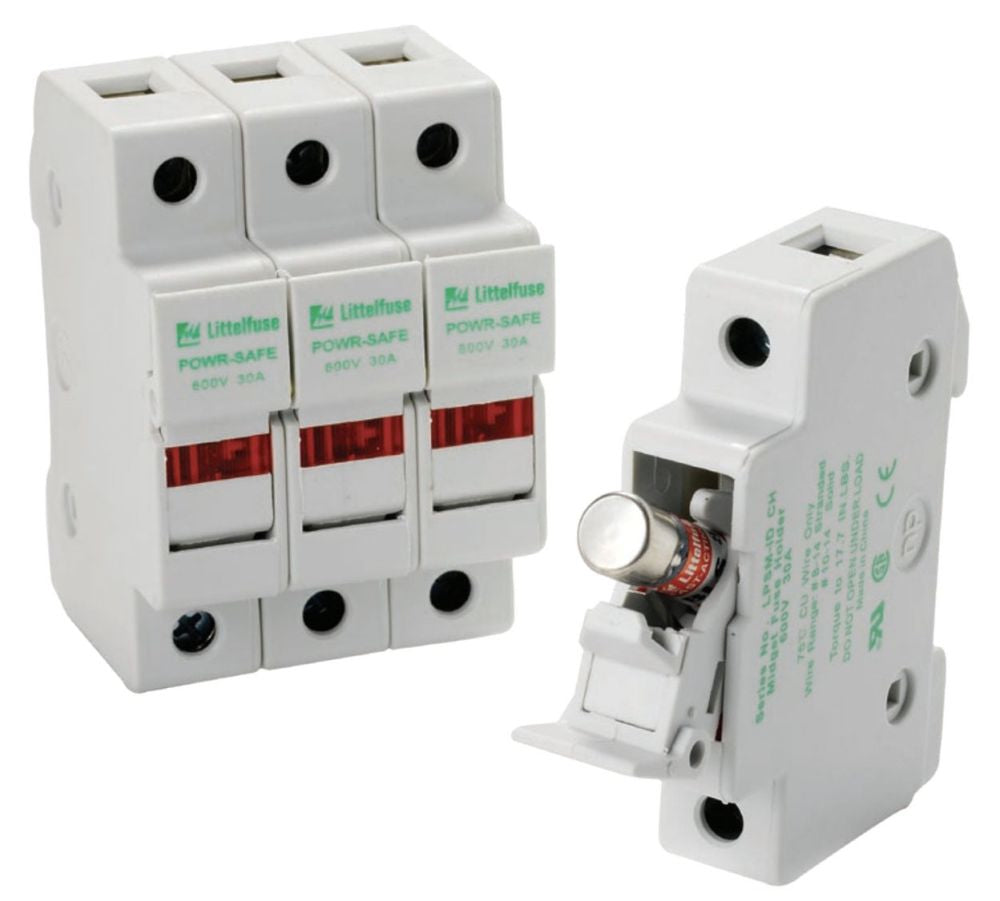

Littelfuse LPSC003 LIT Non-Indicating Fuse Holder 600 VAC/VDC 30 A

Product Description

Littelfuse POWR-SAFE Fuse Holder is a dead front, non-indicating device designed for optimal protection in various applications. The model LPSC003 operates at a voltage of six hundred volts AC and DC, with a current rating of thirty amperes. It is suitable for class CC fuses and accommodates wire sizes ranging from fourteen to eight AWG. The device has three poles for versatile connections and features a pressure plate connection for secure wiring. With a compact size, it is ideal for installations where space is limited.

• Operates at 600 VAC/VDC and 30 A
• Mounts easily on DIN rails
• Compatible with Class CC fuses

Product Highlights

This fuse holder features a thermoplastic body for durability and is ventilated to prevent overheating. Simple installation allows for quick fuse replacements without the need for special tools. It complies with UL listings for electrical safety.

Product Information

Standard Information

• Type: Dead Front Non-Indicating
• Mounting Type: DIN Rail

Technical Specifications

• Voltage Rating: 600 VAC/VDC
• Amperage Rating: 30 A
• Connection Type: Pressure Plate
• Number of Poles: 3
• Wire Size: 14 to 8 AWG
• Dimensions: 2.1 in W x 2.33 in D x 3.06 in H
• Material: Thermoplastic
• Class: CC
