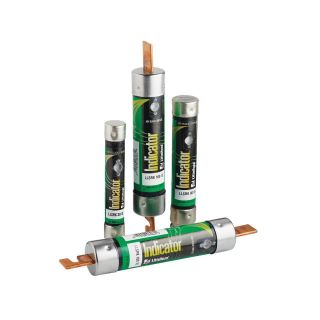

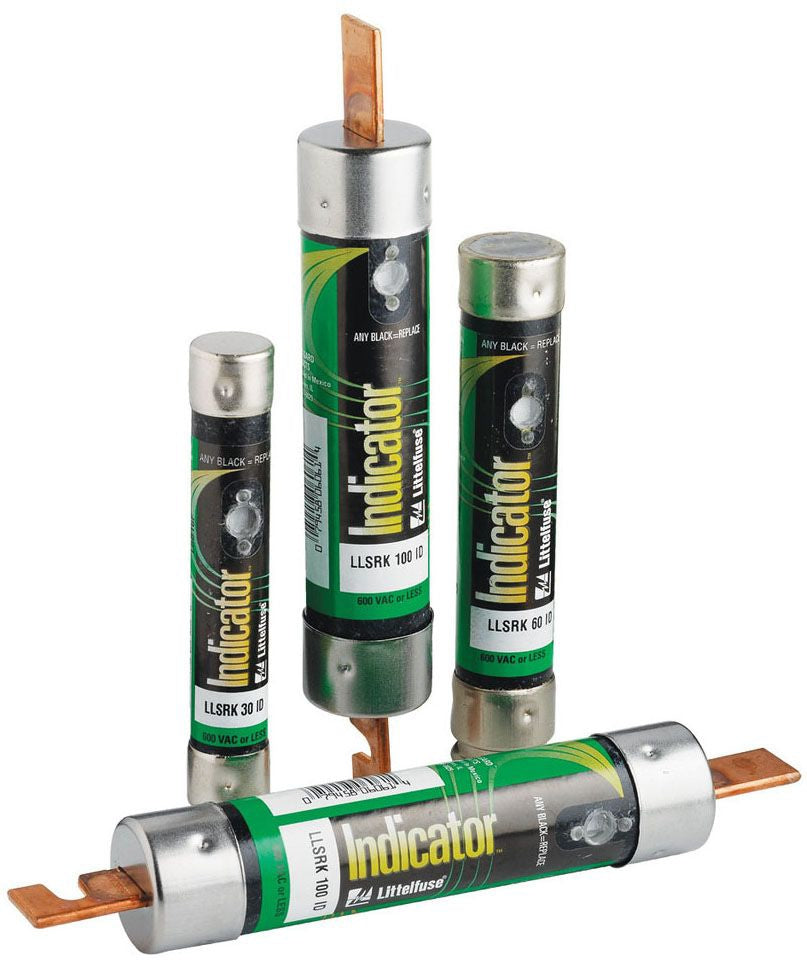

Littelfuse LLSRK225 LLSRK2.25 Current Limiting Time Delay Fuse 600 VAC/300 VDC 200/20 kA Interrupt

Product Description

Littelfuse LLSRK225 is a current limiting time delay fuse. This fuse has a rating of two point two five amperes and operates at six hundred volts AC and three hundred volts DC. It is designed for effective overload and short circuit protection in various applications.

• Class RK1 protection.
• 200/20 kA interrupt rating.
• Cartridge body with holder mounting.

Product Highlights

This fuse is ideal for service entrance, main, feeder, and general purpose branch circuits.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: LLSRK225

Technical Specifications

• Voltage Rating: 600 VAC/300 VDC
• Amperage Rating: 2.25 A
• Interrupt Rating: 200 kA at 600 VAC, 20 kA at 300 VDC
• Body Type: Cartridge
• Body Size: 13/16 in diameter x 5 in length
• Terminal Type: Ferrule
• Mounting Type: Holder
• Material: Fiberglass
• Element: Dual
• Rejection/Non-Rejection: Rejection
• Country of Origin: Mexico
