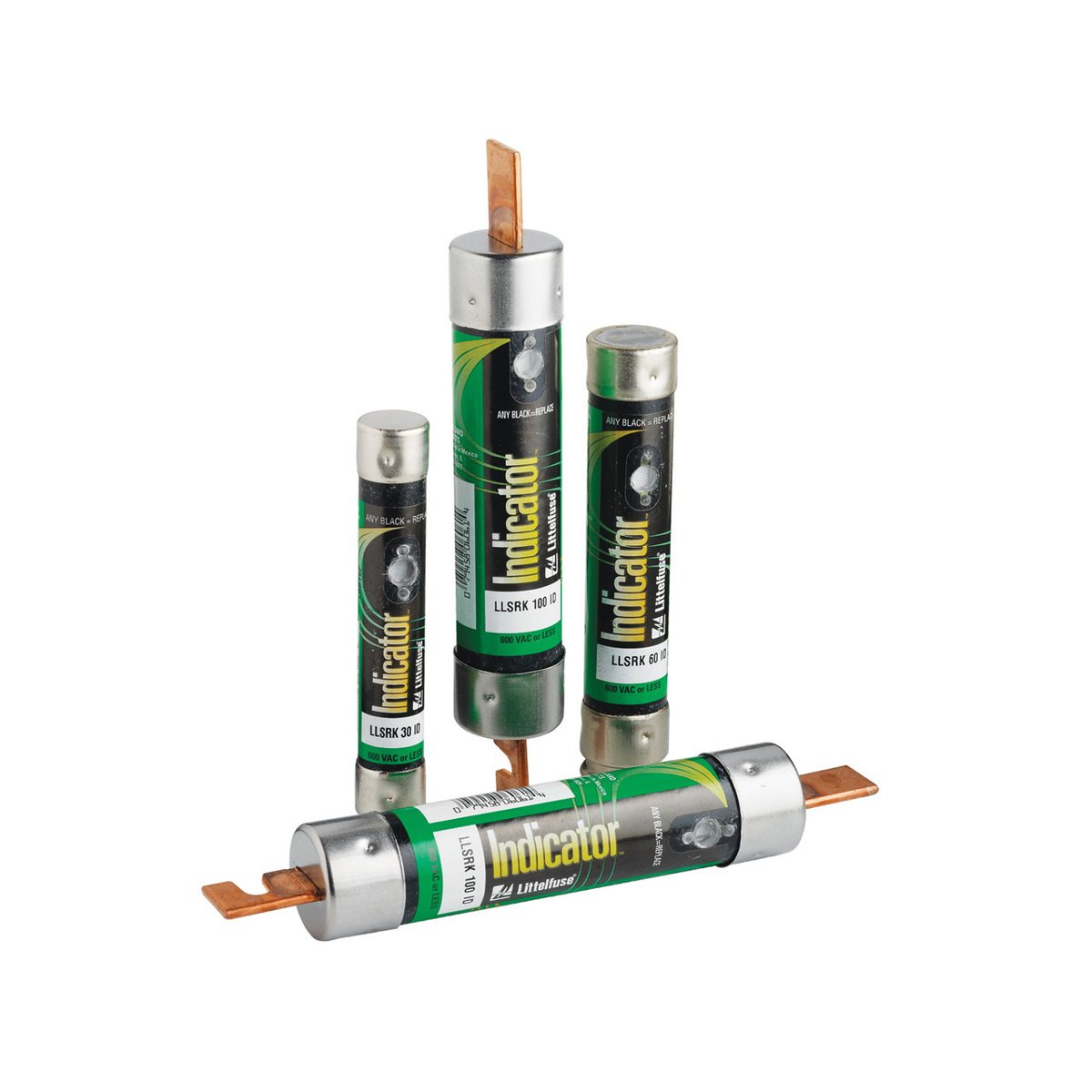

Littelfuse LLSRK200 LIT 0.2 A 600 VAC/300 VDC Fuse

Product Description

Littelfuse LLSRK200 is a current limiting time delay fuse that provides essential protection for various electrical circuits. With a rating of 0.2 A and capable of handling up to 600 VAC and 300 VDC, this fuse is suitable for use in a wide range of applications. Its dual element design enhances reliability, ensuring circuits remain safeguarded during overload situations.

• Current limiting feature minimizes damage from short circuits.
• Holds up to 200 kA at 600 VAC and 20 kA at 300 VDC interrupt rating.
• Compatible with Class RK1 fuse systems for easy integration.

Product Highlights

This fuse's exceptional current limiting capabilities make it suitable for all general-purpose circuits including motors and transformers.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: LLSRK200

Technical Specifications

• Class: RK1
• Series: LLSRK
• Element: Dual
• Material: Fiberglass
• Body Size: 13/16 inches Diameter x 5 inches Length
• Body Type: Cartridge
• Mounting Type: Holder
• Terminal Type: Ferrule
• Voltage Rating: 600 VAC / 300 VDC
• Amperage Rating: 0.2 A
• Interrupt Rating: 200/20 kA
• Country of Origin: Mexico
• Rejection/Non-Rejection: Rejection
• Indicating/Non-Indicating: Non-Indicating
