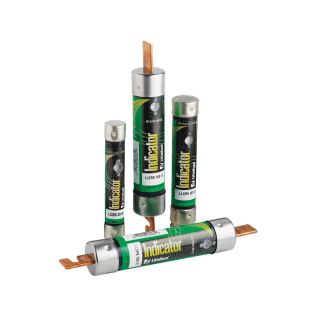

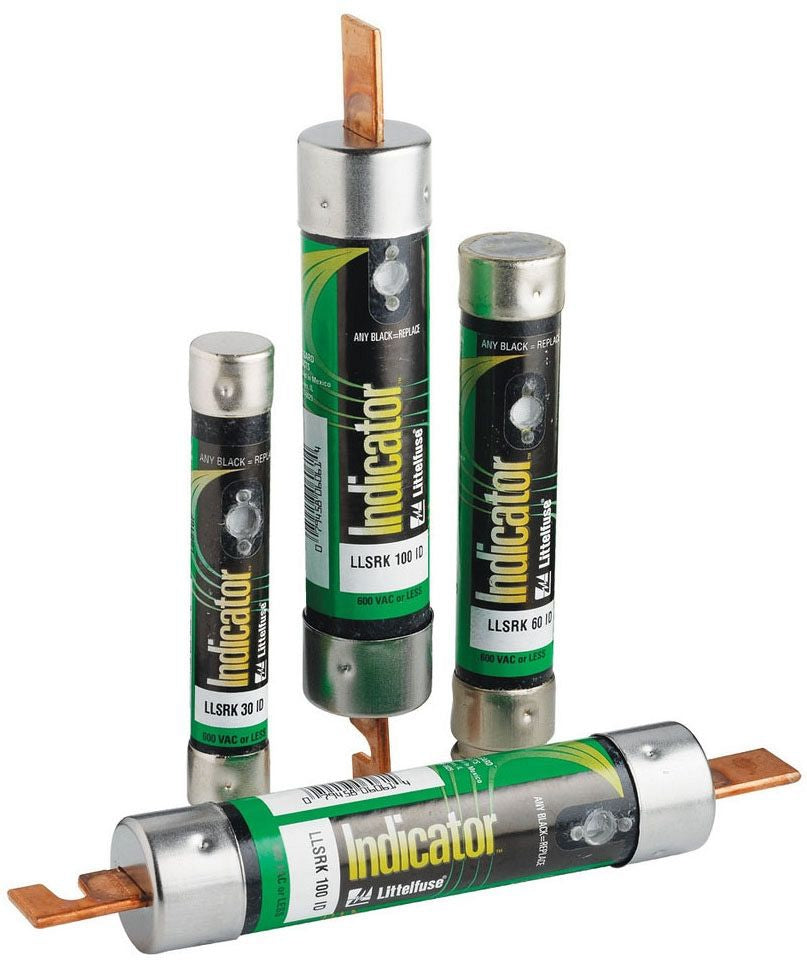

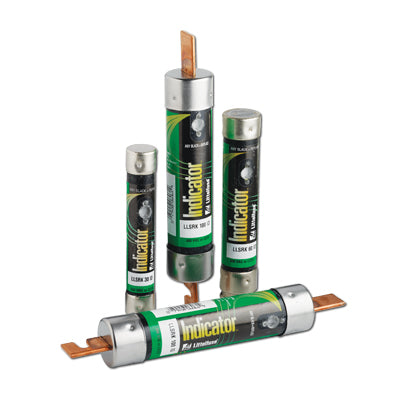

Littelfuse LLSRK150 LITTELFUSE UL CLASS RK1 DUAL ELEMENT TIME DELAY FUSE

Product Description

Littelfuse LLSRK150 is a current limiting time delay fuse designed for overload and short circuit protection. This fuse is suitable for circuits up to 600 volts alternating current and 300 volts direct current with a 0.15 amp rating.

• Type: Current Limiting
• Voltage Rating: 600 VAC/300 VDC
• Interrupt Rating: 200 kA at 600 VAC, 20 kA at 300 VDC

Product Highlights

This fuse mitigates damage under short circuit conditions and maximizes equipment safety. It features excellent time delay properties to withstand repeated surges without unnecessary interruption.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: LLSRK150

Technical Specifications

• Amperage Rating: 0.15 A
• Body Size: 13/16 inches Dia x 5 inches L
• Body Type: Cartridge
• Class: RK1
• Element: Dual
• Material: Fiberglass
• Mounting Type: Holder
• Terminal Type: Ferrule
• Rejection Type: Rejection
• Indicating Type: Non-Indicating
• Standards/Approvals: UL 248-12 | UL File No. E81895 | CSA LR29862
