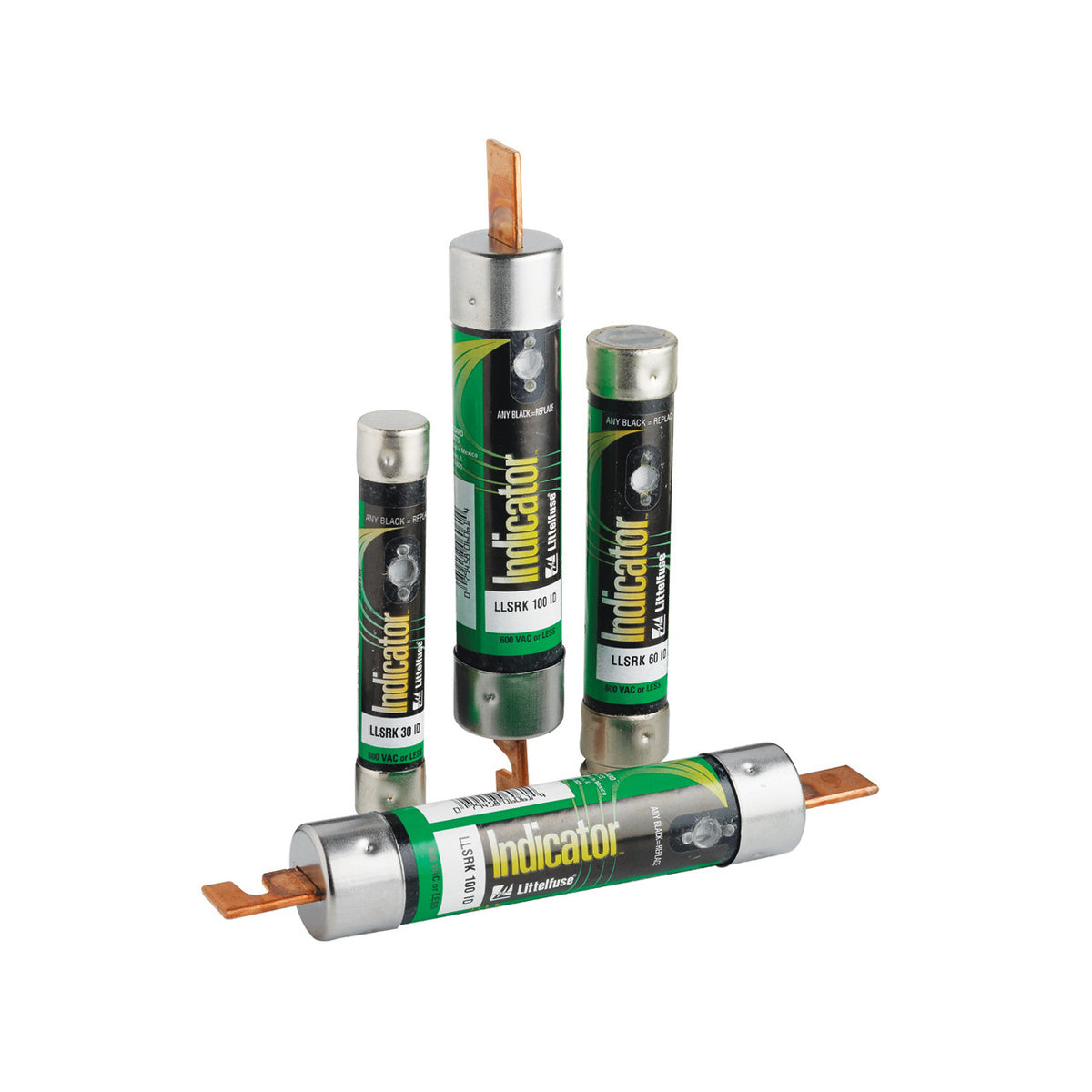

Littelfuse LLSRK070ID Time Delay Fuse 70A 600VAC Class RK1

Product Description

The Littelfuse LLSRK070ID is a time delay fuse designed for general purpose circuits. This fuse has a 70 ampere rating and can handle up to 600 volts AC. It features an indicating window that shows when it has opened, allowing for quick identification of a blown fuse. The design minimizes unnecessary downtime by preventing nuisance openings while ensuring reliable performance. This product is suitable for motors, transformers, and various safety upgrade applications.

• 70 ampere rating and 600 volts AC capability.
• Indicating window provides immediate identification of a blown fuse.
• Designed for general purpose circuits and transformers.

Product Highlights

This Time Delay Fuse offers robust protection and exceptional performance in electrical systems.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Model Number: LLSRK070ID

Technical Specifications

• Amperage Rating: 70 A
• Voltage Rating: 600 VAC / 300 VDC
• Body Type: Cartridge
• Interrupt Rating: 200000 A (Symmetrical)
• Body Size: 1-5/16 inches diameter x 7-7/8 inches long
• Terminal Type: Knife Blade
• Application: All general purpose circuits
• Approval Standards: UL 248-12, CSA
