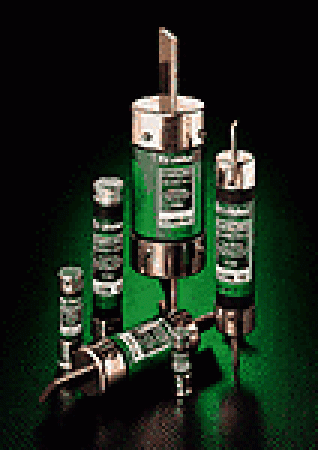

LITTELFUSE LLSRK050 UL CLASS RK1 DUAL ELEMENT TIME DELAY FUSE

Product Description

The Littelfuse LLSRK050 is a UL Class RK1 dual element time delay fuse. This fuse offers current limiting protection to circuits. It features a non-indicating, rejection type design. This model has an amperage rating of fifty amps and operates at a voltage of six hundred volts AC or three hundred volts DC.

• Current limiting design reduces potential damage in case of short circuits.
• Excellent time delay capabilities to withstand repeated surges.
• Rated for 200 kA at 600 VAC and 20 kA at 300 VDC interrupting.

Product Highlights

This fuse is suitable for general purpose circuits, motors, and transformers, making it a versatile choice in various electrical applications.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Series: LLSRK

Technical Specifications

• Amperage Rating: 50 A
• Voltage Rating: 600 VAC / 300 VDC
• Interrupt Rating: 200 / 20 kA
• Body Size: 1-1/16 in Dia x 5-1/2 in L
• Body Type: Cartridge
• Element: Dual
• Material: Fiberglass
• Mounting Type: Holder
• Terminal Type: Ferrule
• Indicating/Non-Indicating: Non-Indicating
• Rejection/Non-Rejection: Rejection
