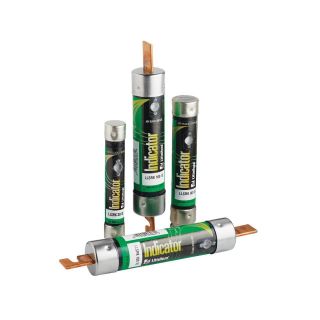

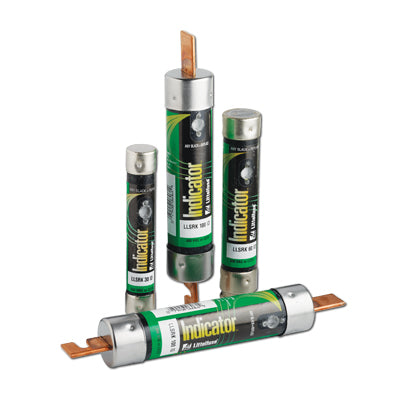

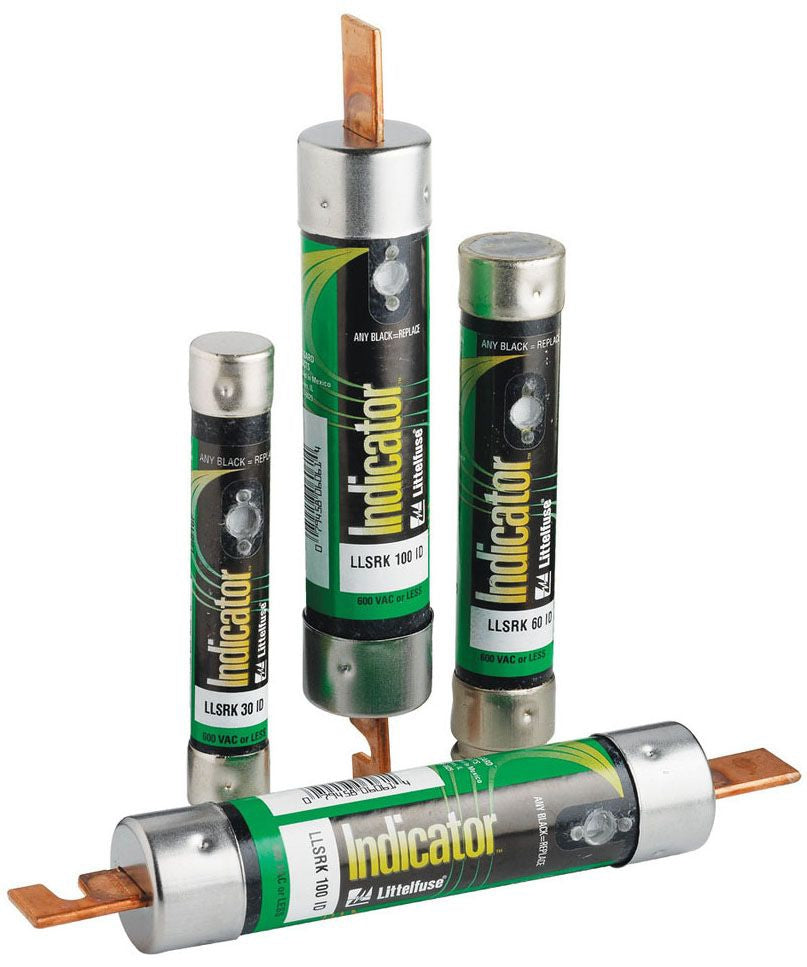

Littelfuse LLSRK035 POWR-GARD Time Delay Fuse 3.5 A 600 VAC/300 VDC 200/20 kA Interrupt RK1

Product Description

Littelfuse LLSRK035 is a POWR-GARD time delay fuse designed for current limiting applications. This fuse operates at 3.5 amperes and is rated for 600 volts AC and 300 volts DC with an interrupting rating of 200 kA at 600 VAC and 20 kA at 300 VDC. It is classified as RK1 and features a cartridge body construction.

• Provides current limiting protection for electrical circuits.
• Compatible with existing Class H fuse blocks for system upgrades.
• Constructed from fiberglass for durability and reliability.

Product Highlights

The Littelfuse LLSRK035 ensures optimal protection for general purpose circuits, motors, and transformers while reducing costs associated with damaged equipment.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: LLSRK035

Technical Specifications

• Voltage Rating: 600 VAC / 300 VDC
• Amperage Rating: 3.5 A
• Interrupt Rating: 200/20 kA
• Class: RK1
• Element: Dual
• Body Type: Cartridge
• Mounting Type: Holder
• Terminal Type: Ferrule
• Body Size: 13/16 in Diameter x 5 in Length
• Material: Fiberglass
• Rejection/Non-Rejection: Rejection
• Indicating/Non-Indicating: Non-Indicating
• Standards: UL 248-12, CSA LR29862
