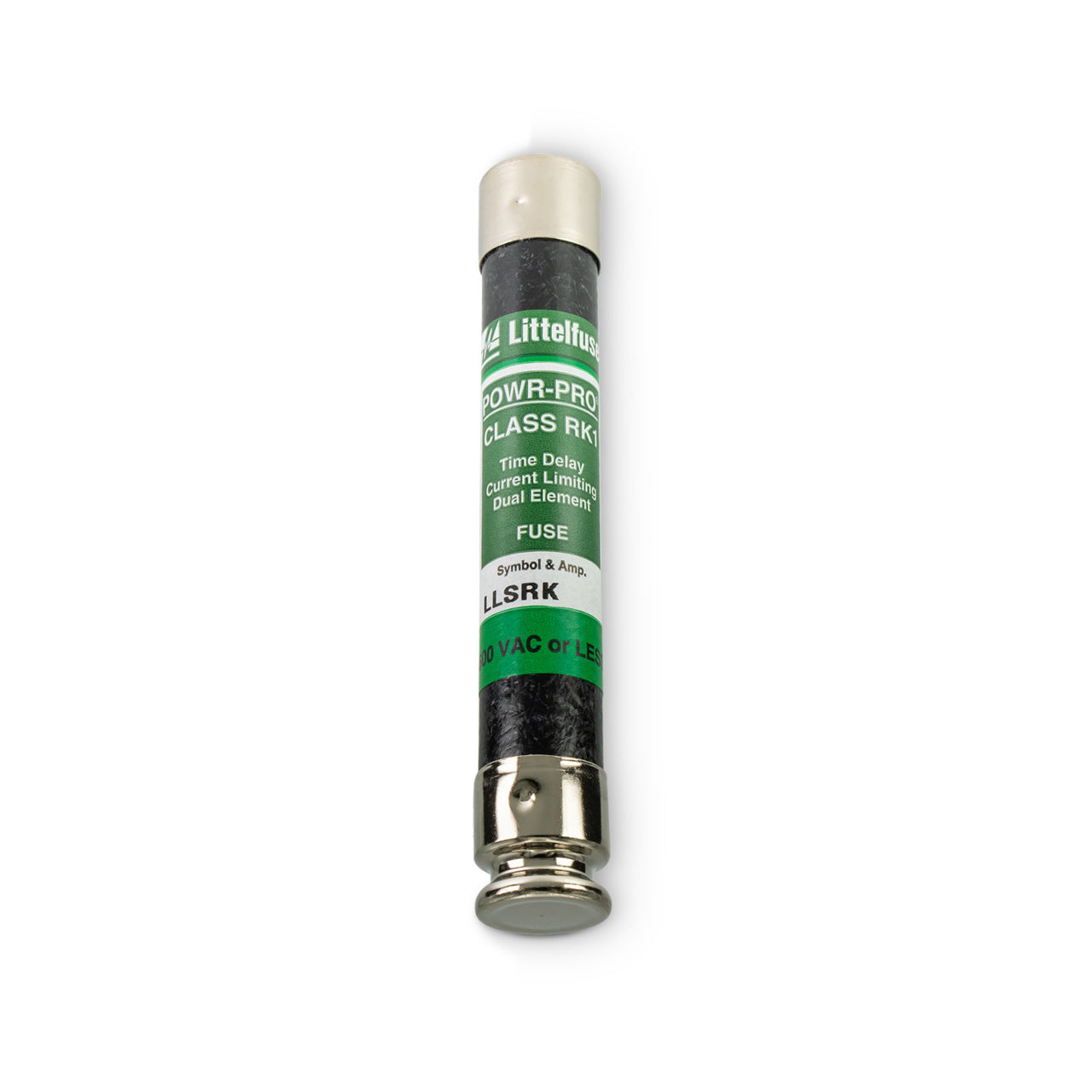

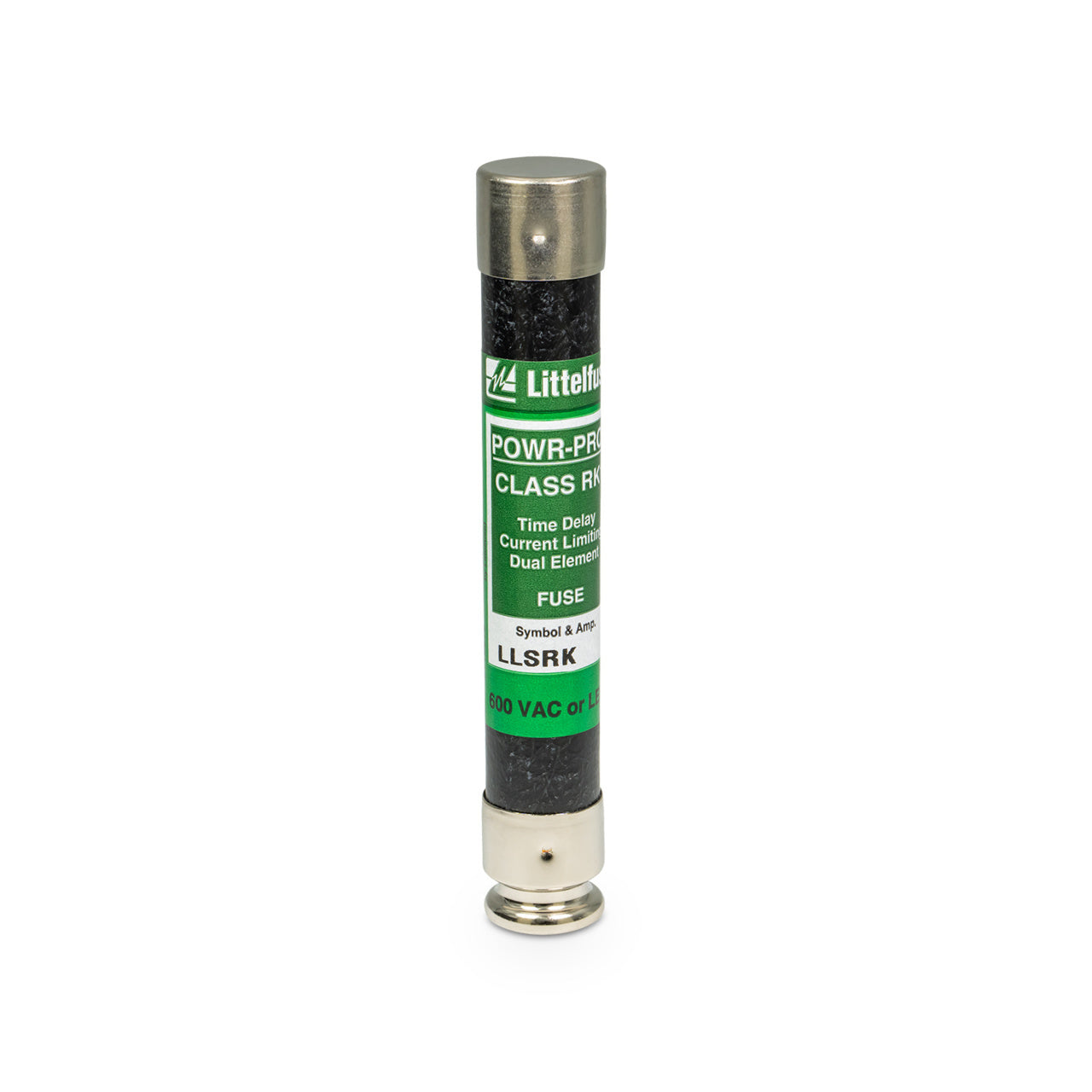

Littelfuse LLSRK025 LLSRK Current Limiting Time Delay Fuse 25 A (13/16 in x 5 in)

LITTELFUSE
Brand: LITTELFUSE
SKU: LLSRK025
Availability: In Stock

Ships same day if ordered by 12 pm
$67.76
$67.76
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Littelfuse LLSRK025 is a LLSRK series current-limiting, dual-element time delay fuse rated 25 A for 600 VAC / 300 VDC service. It uses a fiberglass 13/16 in x 5 in cartridge body with ferrule terminals for holder mounting, non-indicating rejection style, and interrupting ratings of 200 kA at 600 VAC and 20 kA at 300 VDC. The true dual-element construction provides time delay and repeated surge tolerance for industrial and general-purpose circuits.

  • Dual-element time delay (true dual element) with thermally-reversible spring-loaded thermal overload element for time-delay and surge tolerance
  • Rated 25 A; 600 VAC / 300 VDC with interrupting rating 200 kA at 600 VAC and 20 kA at 300 VDC
  • Fiberglass cartridge body (13/16 in diameter x 5 in length), ferrule terminals, holder mounting, rejection type, non-indicating

Product Highlights

Extremely current-limiting RK1 time-delay fuse, 25 A, 600 VAC/300 VDC, 200 kA interrupting rating

Product Information

Standard Information

  • Brand: LITTELFUSE
  • Manufacturer Part Number: LLSRK025
  • Country of Origin: Mexico
Technical Specifications
Brand
Littelfuse
Manufacturer Part Number
LLSRK025
Series
LLSRK
Type
Current limiting
Class
RK1
Amperage Rating
25 A
Voltage Rating
600 VAC / 300 VDC
Interrupting Rating
200 kA at 600 VAC; 20 kA at 300 VDC
Element
Dual element (time delay)
Opening Characteristic
Time delay (slo-blo)
Body Material
Fiberglass
Body Size
13/16 in diameter x 5 in length
Body Diameter
13/16 in
Body Length
5 in
Body Type
Cartridge
Terminal Type
Ferrule
Mounting Type
Holder
Rejection Type
Rejection
Indicating
Non-indicating
Standards / Certifications
UL 248-12; UL File No. E81895; CSA LR29862; Federal Specification WF-1814; PROP65
Application
Service entrance, main, feeder, general-purpose branch circuits, motors, transformers
IEC/NEMA Protection
IEC Type 2 protection (no damage)
UPC
079458350722
Country of Origin
Mexico
Package Quantity
1
