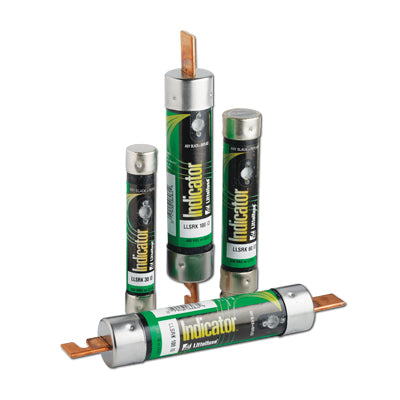

Littelfuse LLSRK010 Current Limiting Time Delay Fuse 10 A 600 VAC/300 VDC 200/20 kA Interrupt RK1 Class

Product Description

Littelfuse POWR-GARD LLSRK010 is a time delay fuse designed for current limiting applications, rated for ten amps and capable of handling up to six hundred volts alternating current and three hundred volts direct current. This fuse is a dual element type, ideal for protecting against overloads and short circuits in various circuits, transformers, and safety upgrades.

• Current limiting design minimizes equipment damage during short circuits.
• Rated for 200 kA at 600 VAC and 20 kA at 300 VDC interrupting capacity.
• Constructed with fiberglass for durability and reliability.

Product Highlights

Utilizing advanced dual element technology, this fuse effectively maintains circuit integrity while preventing unnecessary downtime caused by overloads or surges.

Product Information

Standard Information

• Manufacturer: Littelfuse
• UPC: 07945835065

Technical Specifications

• Amperage Rating: 10 A
• Voltage Rating: 600 VAC/300 VDC
• Interrupt Rating: 200/20 kA
• Body Size: 13/16 inches diameter x 5 inches length
• Body Type: Cartridge
• Class: RK1
• Element: Dual
• Material: Fiberglass
• Mounting Type: Holder
• Terminal Type: Ferrule
• Indicating: Non-Indicating
• Rejection: Rejection
• Standards/Approvals: UL 248-12, UL File No. E81895, CSA LR29862, Federal Specification WF-1814
