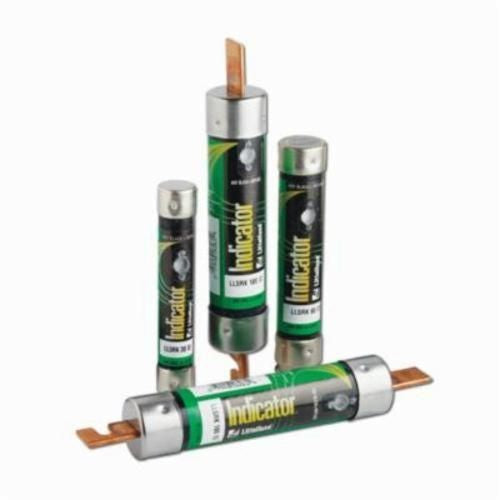

Littelfuse LLSRK005ID Current Limiting Time Delay Fuse 5 A 600 VAC 300 VDC 200 20 kA Interrupt

Product Description

Littelfuse LLSRK005ID is a current limiting time delay fuse designed for modern circuits. This fuse features patented Indicator technology for instant identification of a blown fuse. It minimizes damage to components from short circuits with precision formed elements. The high-performance design includes a solid-state overload section that offers reliability without unnecessary wear.

• Rated for 5 Amperes
• Voltage capability of six hundred VAC and three hundred VDC
• Interrupt rating of two hundred kA at six hundred VAC and twenty kA at three hundred VDC

Product Highlights

This fuse is ideal for applications in general circuits, motors, and transformers. It helps reduce downtime by providing quick identification of blown fuses, leading to swift maintenance actions.

Product Information

Standard Information

• Brand: Littelfuse
• Catalog Number: LLSRK005ID

Technical Specifications

• Amperage Rating: 5 A
• Voltage Rating: 600 VAC/300 VDC
• Interrupt Rating: 200/20 kA
• Class: RK1
• Element: Dual
• Body Size: 13/16 in Dia x 5 in L
• Material: Fiberglass
• Mounting Type: Holder
• Terminal Type: Ferrule
• Country of Origin: Mexico
