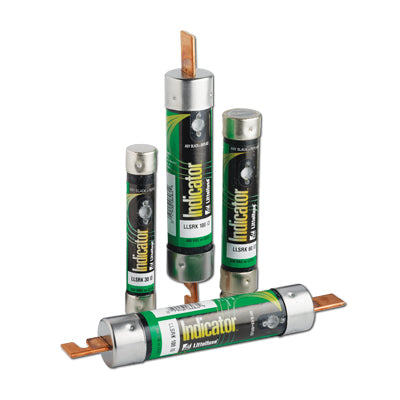

LITTELFUSE LLSRK005 UL CLASS RK1 DUAL ELEMENT TIME DELAY FUSE

Product Description

Littelfuse LLSRK005 is a POWR-GARD Time Delay Fuse designed for current limiting applications. This fuse is rated at five amps and can handle voltages up to six hundred volts alternating current or three hundred volts direct current. It has a dual element design that allows it to respond effectively to short circuits. The fuse interrupts at two hundred kA for six hundred volts and twenty kA for three hundred volts. It fits into standard fuse holders and features a cartridge-style body that is made from fiberglass.

• Five amp rating
• Operates at six hundred volts alternating current or three hundred volts direct current
• Interrupts at two hundred kA AC and twenty kA DC

Product Highlights

This fuse is ideal for protecting circuits and equipment from overloads and short circuits. Its design reduces damage during faults and minimizes downtime.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Part Number: LLSRK005

Technical Specifications

• Amperage Rating: 5 A
• Voltage Rating: 600 VAC/300 VDC
• Body Size: 13/16 in Dia x 5 in L
• Body Type: Cartridge
• Class: RK1
• Element: Dual
• Material: Fiberglass
• Mounting Type: Holder
• Terminal Type: Ferrule
