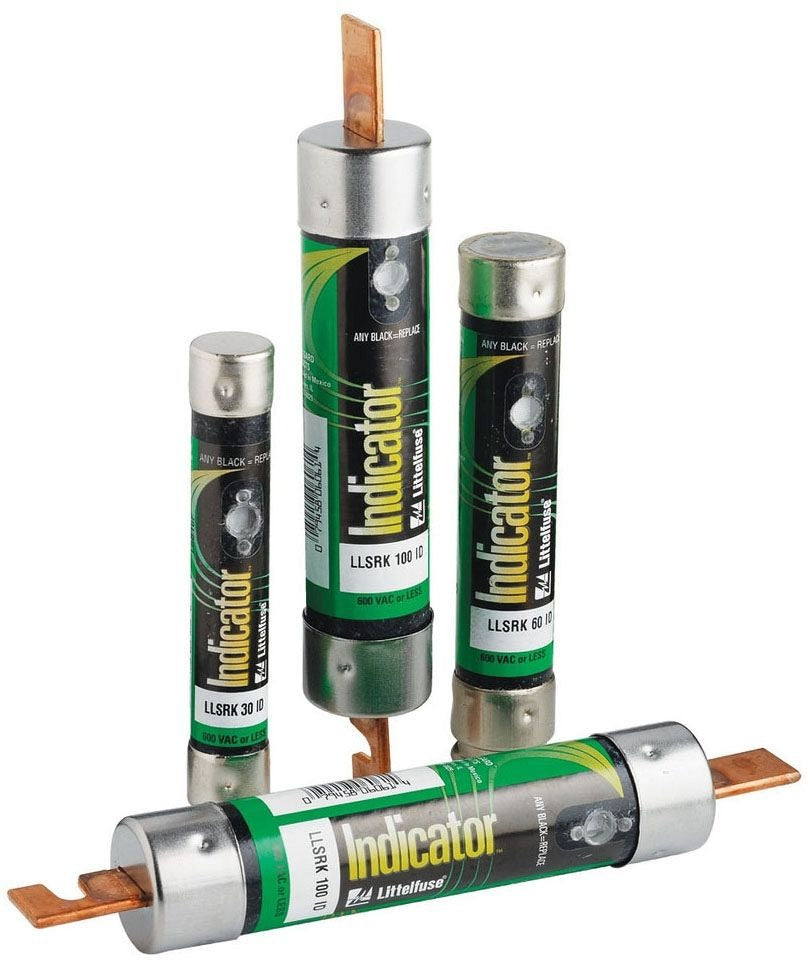

Littelfuse LLSRK002ID Class RK1 dual-element time-delay indicating fuse 2 A (13/16 in dia x 5 in L)

Product Description

Littelfuse LLSRK002ID is a Class RK1 dual-element, time-delay current-limiting cartridge fuse rated 2 A for 600 VAC / 300 VDC systems. It includes a patented indicating window for blown-fuse identification, precision-formed short-circuit elements, and a solid-state overload section. The 13/16 in diameter by 5 in length cartridge with ferrule terminals and granular quartz filling provides 200 kA interrupting at 600 VAC and 20 kA at 300 VDC for industrial and general-purpose circuits, motors, and transformers.

• Rated 2 A; voltage 600 VAC / 300 VDC; interrupting rating 200 kA at 600 VAC and 20 kA at 300 VDC
• Dual-element time-delay design with precision-formed short-circuit element and solid-state overload section; patented indicating window for blown-fuse identification
• Cartridge 13/16 in dia x 5 in L; ferrule terminals for holder mounting; fiberglass reinforced body with granular quartz filling

Product Highlights

Class RK1 dual-element time-delay indicating fuse, 2 A, 600 VAC/300 VDC, 200 kA/20 kA interrupting rating, cartridge fuse for industrial and general-purpose applications.

Product Information

Standard Information

• Brand: LITTELFUSE
• Manufacturer Part Number: LLSRK002ID
• Country of Origin: Mexico

Technical Specifications

• Manufacturer: Littelfuse
• MPN: LLSRK002ID
• Series: LLSRK
• Type: Current limiting
• Class: RK1
• Element: Dual element
• Amperage Rating: 2 A
• Voltage Rating: 600 VAC / 300 VDC
• Interrupting Rating: 200 kA at 600 VAC; 20 kA at 300 VDC
• Body Size: 13/16 in dia x 5 in L
• Body Type: Cartridge
• Terminal Type: Ferrule
• Mounting Type: Holder
• Material: Fiberglass reinforced pultruded body; granular quartz filling; plated end caps
• Indicating: Yes (patented indicating window)
• Fuse Response Time: Time delay (Slo-Blo / Time Lag)
• Short-Circuit Element: Precision-formed
• Overload Section: Solid-state, no moving parts; elastomeric silicone overload section
• Applications: General purpose circuits, motors, transformers, safety upgrades
• Standards/Approvals: UL 248-12 (UL File No. E81895); CSA LR29862; Federal Specification WF-1814; RoHS compliant; CE
• Series Subbrand: LLSRK_ID / POWR-PRO
• Country of Origin: Mexico
• Proposition 65: May contain nickel
