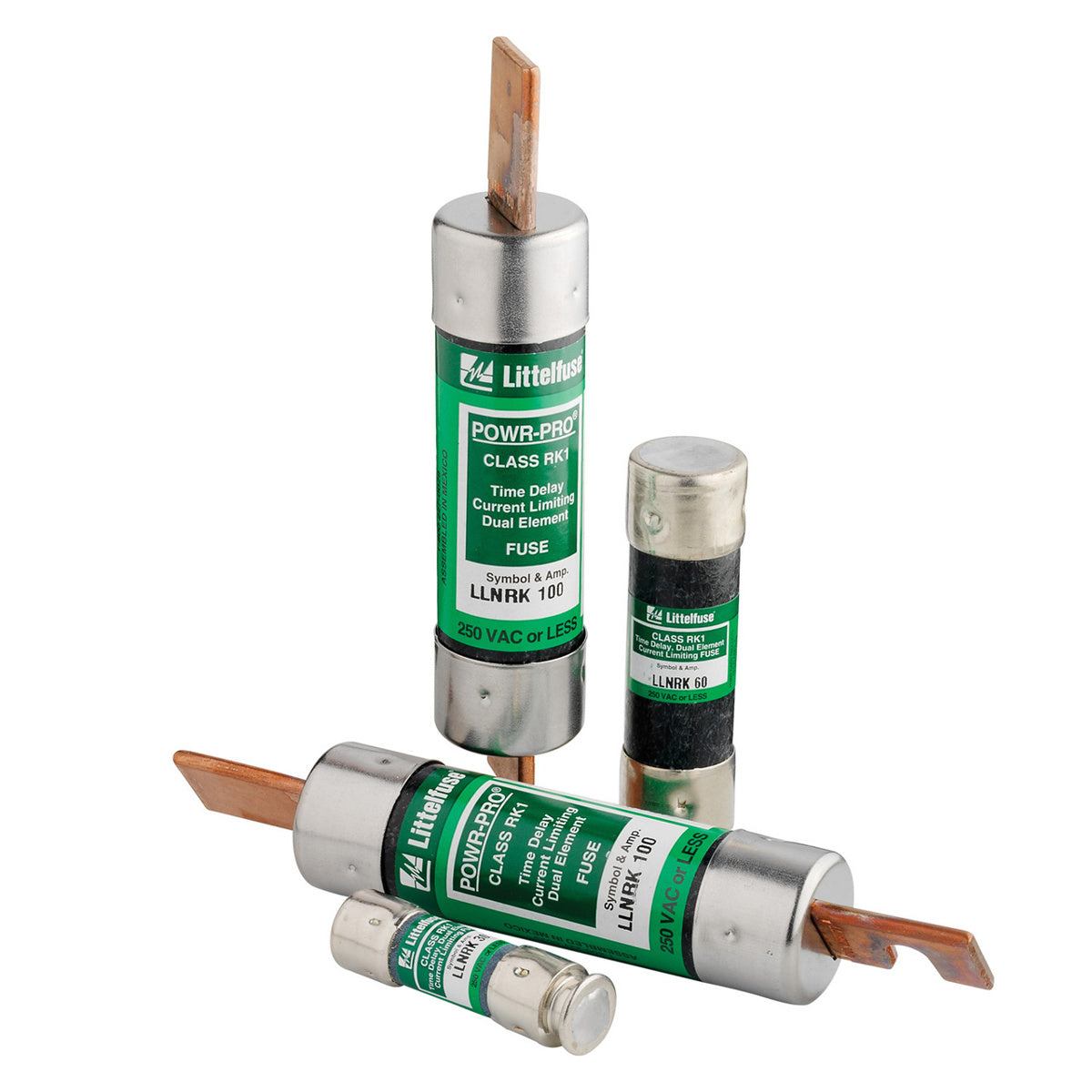

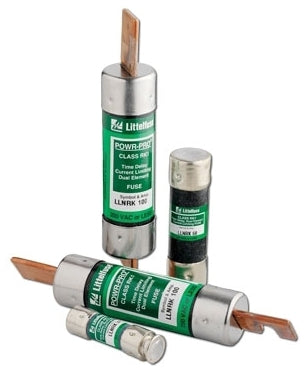

Littelfuse LLNRK150 Current Limiting Time Delay Fuse 0.15 A 250 VAC/125 VDC 200/20 kA Interrupt RK1 Class

Product Description

The Littelfuse LLNRK150 is a current limiting time delay fuse designed for a voltage rating of two hundred fifty volts AC and one hundred twenty-five volts DC. It features an amperage rating of zero point fifteen amps and a dual element design for enhanced protection against overload and short circuit conditions. This fuse can be installed in existing Class H fuse blocks to upgrade systems.

• Current limiting design reduces damage during short circuits.
• Excellent time delay for repeated surges without unnecessary opening.
• Meets high interrupt ratings of two hundred kA at 250 VAC.

Product Highlights

Ideal for general purpose circuits, motors, and transformers, the LLNRK150 provides reliable protection while minimizing downtime caused by electrical surges. Its design enhances system safety and efficiency.

Product Information

Standard Information

• Catalog Number: LLNRK150
• Brand: Littelfuse

Technical Specifications

• Type: Current Limiting
• Class: RK1
• Voltage Rating: 250 VAC/125 VDC
• Amperage Rating: 0.15 A
• Interrupt Rating: 200/20 kA
• Material: Melamine
• Body Size: 9/16 in Dia x 2 in L
• Terminal Type: Ferrule
• Mounting Type: Holder
• Rejection Type: Rejection
• Indicating Type: Non-Indicating
• Country of Origin: Mexico
