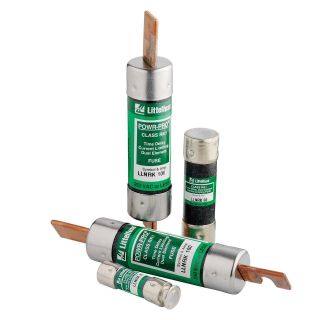

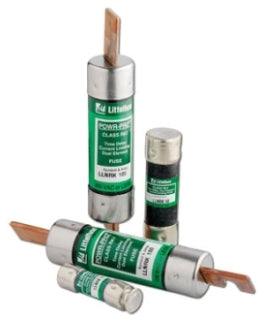

Littelfuse LLNRK100 Current Limiting Time Delay Fuse 100 A 250 VAC 125 VDC RK1

Product Description

Littelfuse LLNRK100 is a current limiting time delay fuse designed for superior protection in electrical circuits. This fuse can handle a maximum of one hundred amperes at a voltage of two hundred fifty volts AC and one hundred twenty-five volts DC. Suitable for service entrance, main applications, feeders, and general purpose branch circuits, it provides essential overload and short circuit protection.

• Class RK1 fuse with current limiting capabilities.
• Incorporates dual element design to manage surge currents.
• Interrupt rating of two hundred kA at two hundred fifty volts AC and twenty kA at one hundred twenty-five volts DC.

Product Highlights

This Littelfuse fuse is specifically built for performance in high inrush current applications, ensuring reliability in all general-purpose circuit needs.

Product Information

Standard Information

• Type: Current Limiting
• Brand: Littelfuse

Technical Specifications

• Class: RK1
• Series: LLNRK
• Material: Melamine
• Body Size: 9/16 in Dia x 2 in L
• Body Type: Cartridge
• Mounting Type: Holder
• Terminal Type: Ferrule
• Voltage Rating: 250 VAC/125 VDC
• Amperage Rating: 0.1 A
• Interrupt Rating: 200/20 kA
• Country of Origin: MX
• Rejection/Non-Rejection: Rejection
• Indicating/Non-Indicating: Non-Indicating
