Littelfuse LLNRK035 LLNRK and LLSRK series POWR-PRO fuses provide superior overload and short circuit protection

Product Description

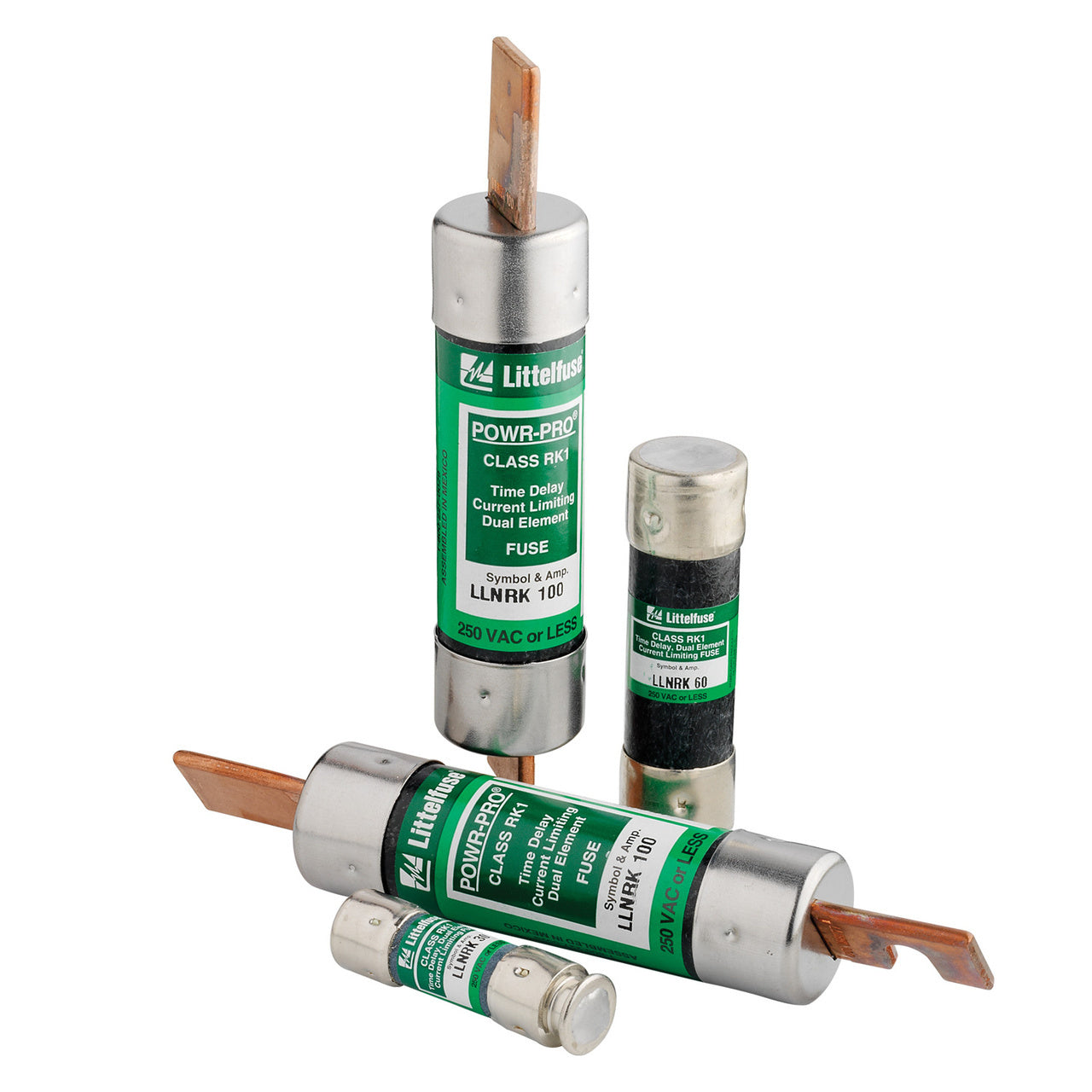

Littelfuse LLNRK035 is part of the LLNRK and LLSRK series POWR-PRO fuses. These fuses offer protection against overload and short circuits in service entrance, main, feeder, and general-purpose branch circuits up to six hundred amperes. They upgrade systems in existing Class H fuse blocks.

• Current Limiting Design
• Compatible with Class H Fuse Blocks
• Time Delay Feature

Product Highlights

The Littelfuse LLNRK035 provides significant protection for electrical systems. Its design minimizes damage during short circuits and reduces downtime caused by power surges.

Product Information

Standard Information

• Catalog Number: LLNRK035
• Manufacturer: Littelfuse

Technical Specifications

• Amperage Rating: 35 A
• Voltage Rating: 250 VAC / 125 VDC
• Class: RK1
• Interrupt Rating: 200 kA at 250 VAC, 20 kA at 125 VDC
• Body Type: Cartridge
• Material: Melamine
• Application: All general-purpose circuits, Motors, Transformers
• Standard: UL 248-12
• Country of Origin: Mexico
